Xerox Phaser 4600 Service Manual

04/2016
4-91
Phaser 4600/4620/4622 Printer Service Manual
REP 10.6
4 Repairs and Adjustments
Revised

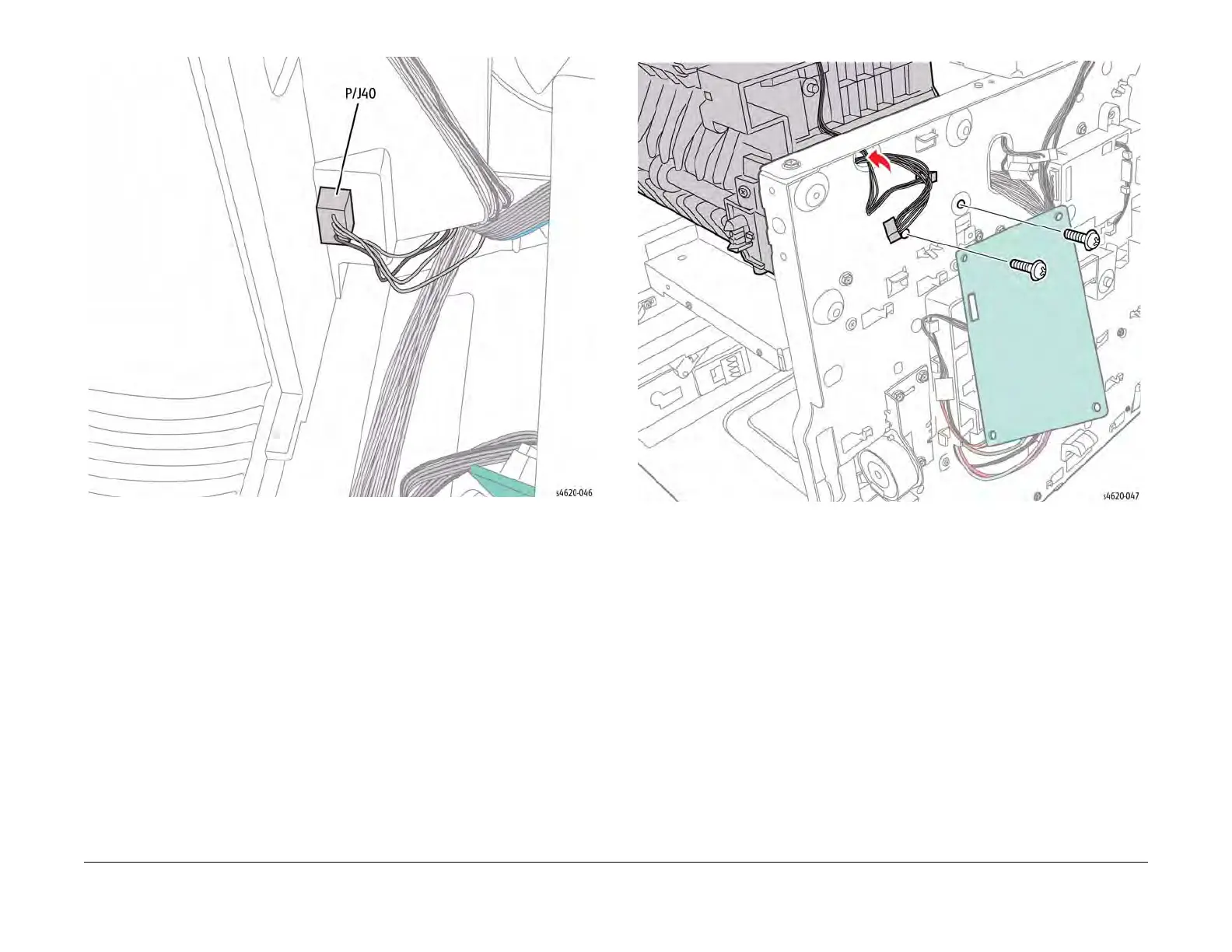

Figure 4 Disconnect the Exit Assembly
14. Remove 2 screws (metal) from the left side that secure the Exit Assembly, Figure 5.
Figure 5 Remove the left side Exit Assembly screws
15. Remove 2 screws (metal) from the right side that secure the Exit Assembly, Figure 6.
