04/2016
4-97
Phaser 4600/4620/4622 Printer Service Manual
REP 10.8
4 Repairs and Adjustments
Revised

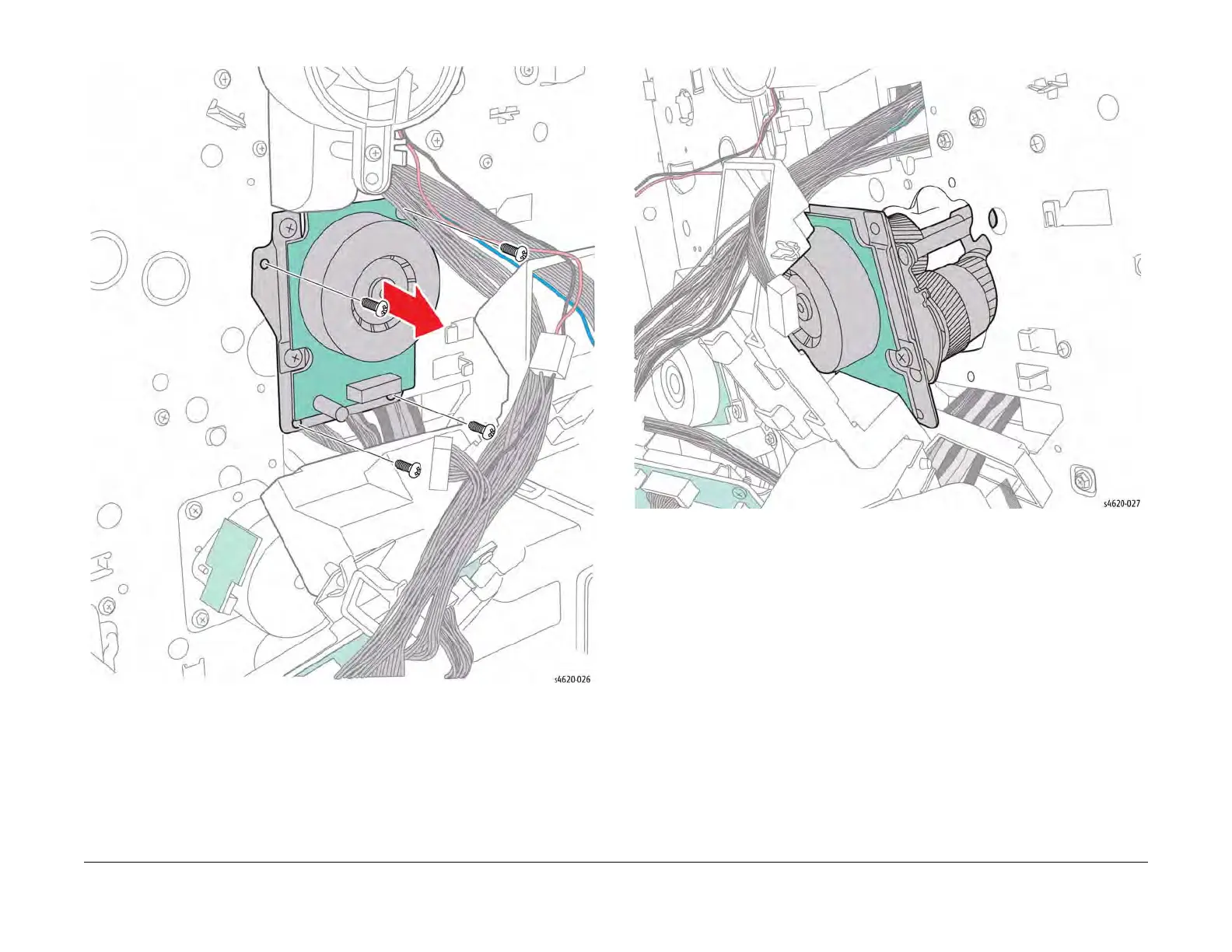

Figure 6 Remove the Fuser Drive screws
16. Pull the assembly through the hole in the chassis, Figure 7.
Figure 7 Remove the Fuser Drive Assembly
