Xerox Phaser 4600 Service Manual

04/2016
4-96
Phaser 4600/4620/4622 Printer Service Manual
REP 10.8
Revised
4 Repairs and Adjustments

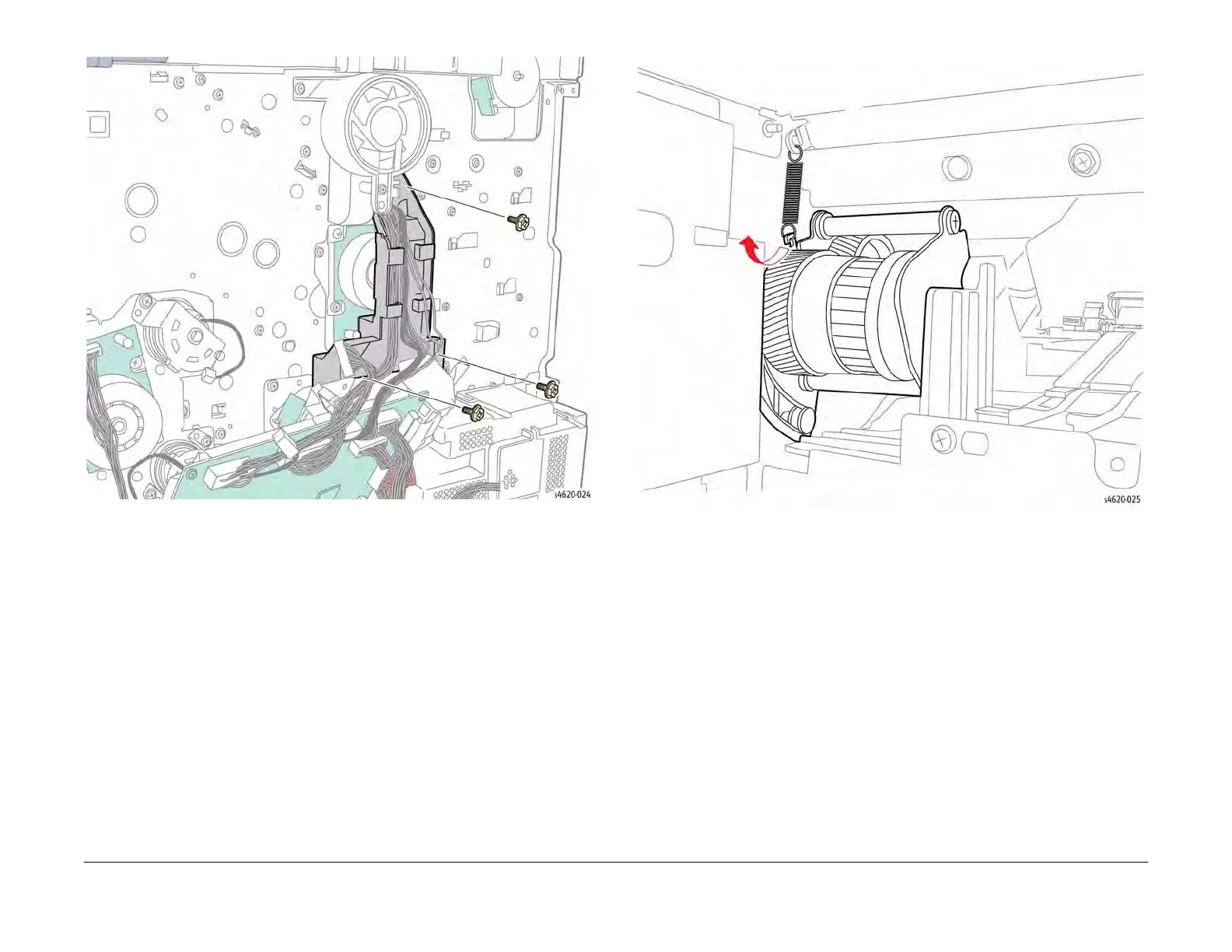

Figure 4 Remove the center harness guide screws
13. Remove the Fuser Drive spring, Figure 5.
Figure 5 Remove the Fuser Drive spring
14. Disconnect P/J39 from the Fuser Drive Assembly.
15. Remove 4 screws (metal) that secure the Fuser Drive Assembly, Figure 6.
