04/2016
4-105
Phaser 4600/4620/4622 Printer Service Manual
REP 10.14
4 Repairs and Adjustments
Revised

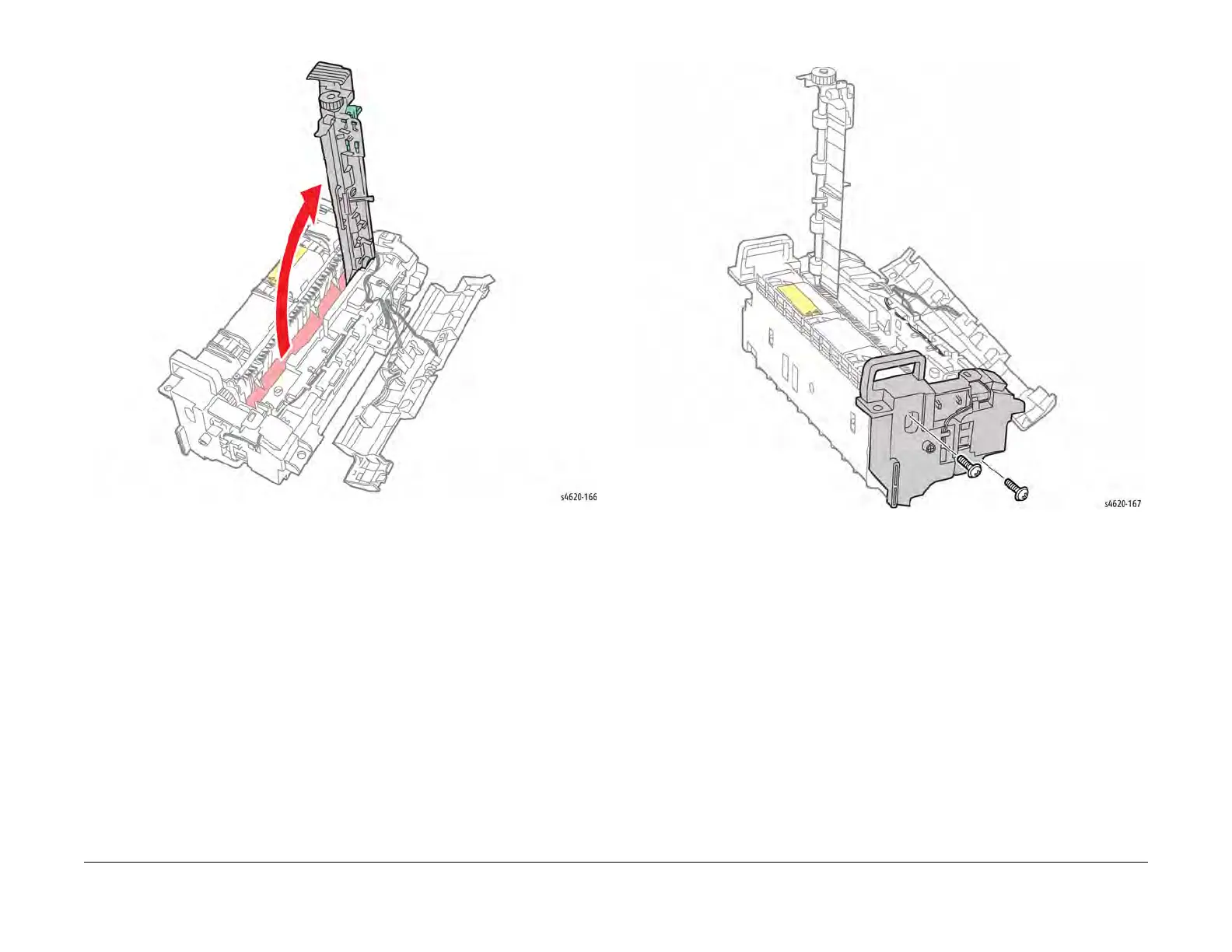

Figure 3 Open the lower exit guide
6. Remove 2 screws (silver, metal) that secure the right cover, Figure 4.
Figure 4 Remove the Fuser Right Cover
7. Disconnect 1 terminal from the Thermostat, Figure 5.
To Next Page
