Xerox Phaser 4600

04/2016
4-106
Phaser 4600/4620/4622 Printer Service Manual
REP 10.14
Revised
4 Repairs and Adjustments

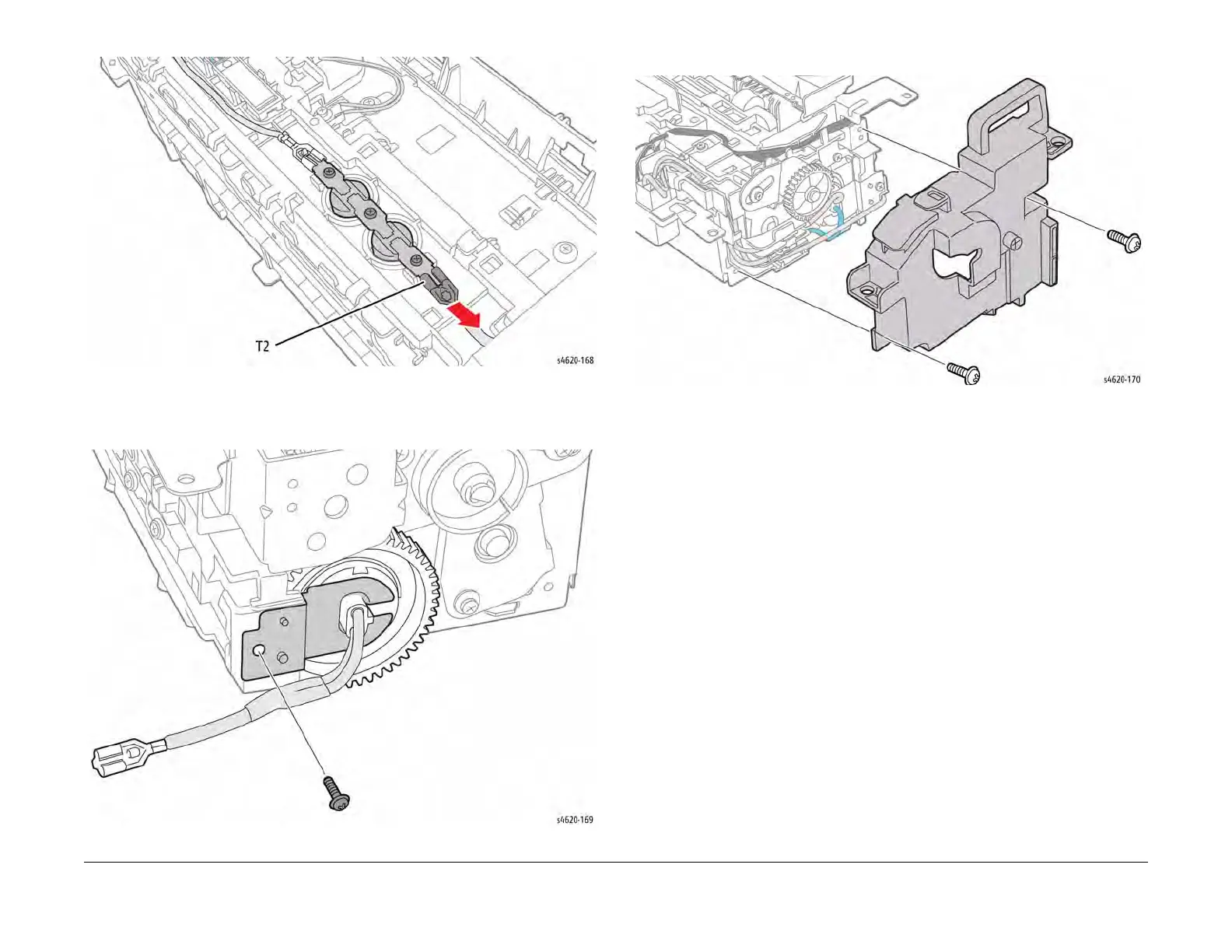

Figure 5 Disconnect the Thermostat
8. Remove 1 screw (Black, plastic) that secures the right lamp bracket to the Fuser, Figure
6.
Figure 6 Remove the right side lamp bracket
9. Remove 2 screws (silver, metal) that secure the Fuser left cover, Figure 7.
Figure 7 Remove the Fuser left cover
10. Remove the spring the secures the Fuser Gear to the Heat Roller.
