Phaser 4600/4620/4622 Printer Service Manual
REP 10.14
4 Repairs and Adjustments
Revised

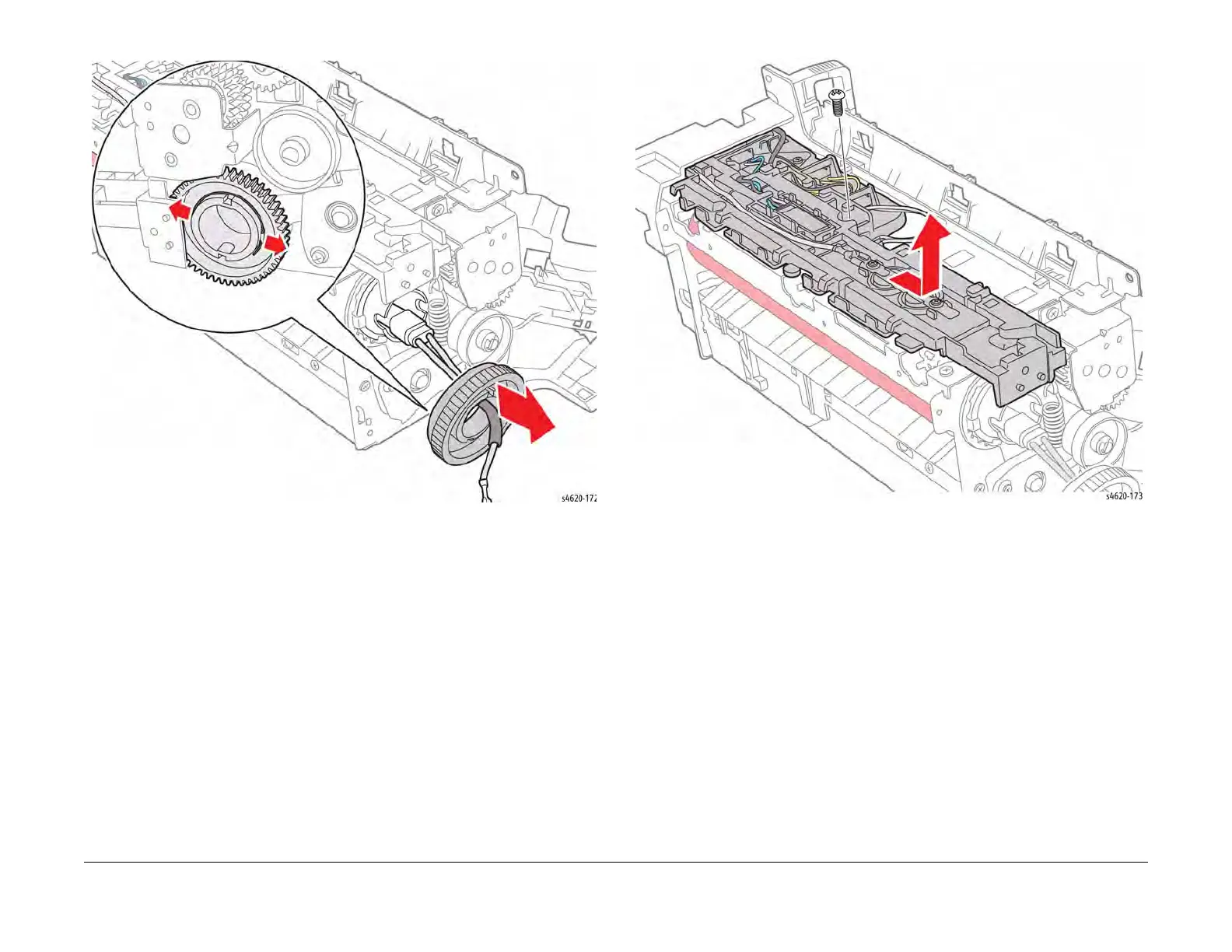

Figure 8 Remove the Fuser Gear Spring
11. Remove 1 screw (silver, metal) that secures the thermostat holder to the upper fuser
bracket.
12. Shift the thermostat holder right to release the hooks and lift the holder.
Figure 9 Release the thermostat holder
13. Remove the Fuser Gear from the Heat Roller.
