Xerox Phaser 4600

04/2016
4-110
Phaser 4600/4620/4622 Printer Service Manual
REP 10.15
Revised
4 Repairs and Adjustments

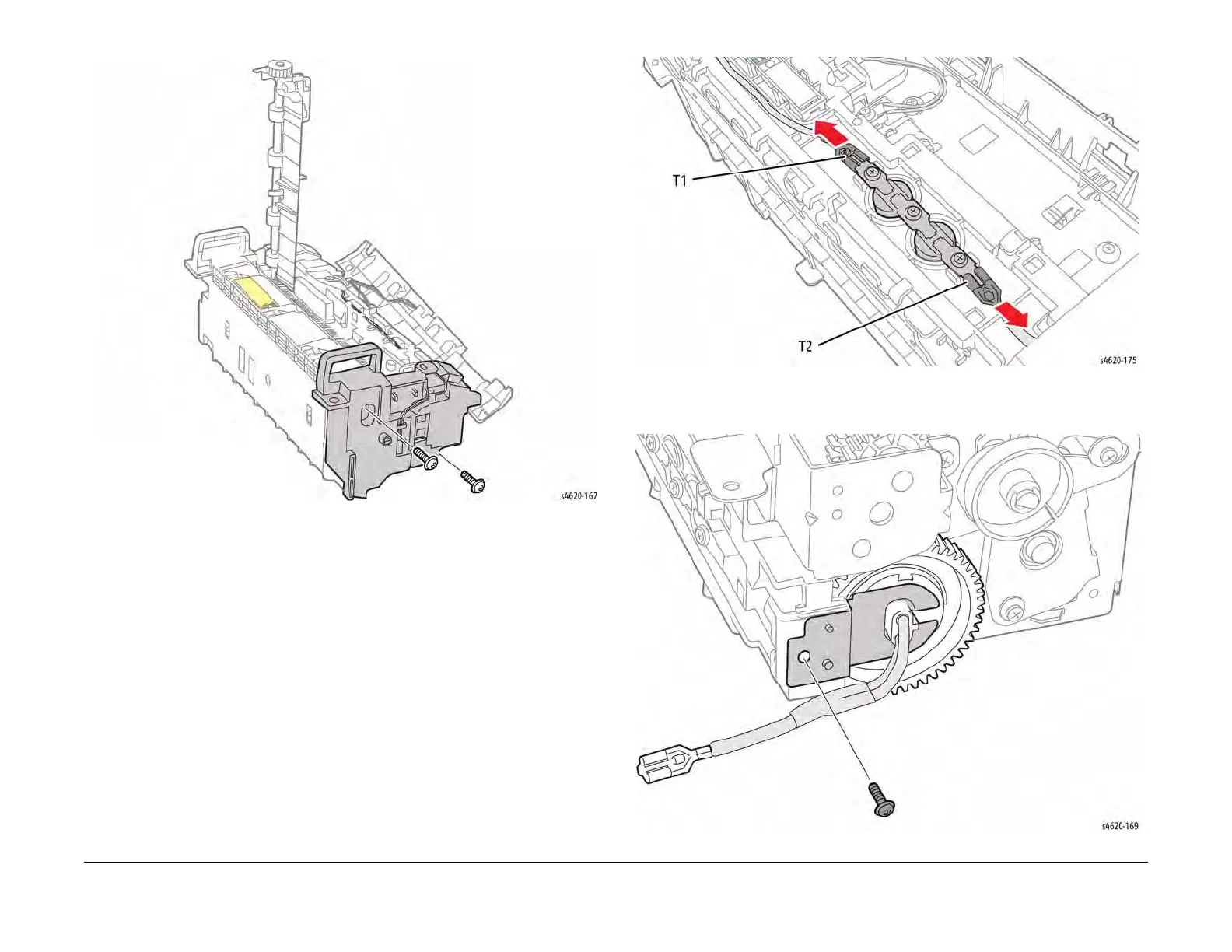

Figure 4 Remove the Fuser Right Cover
7. Disconnect 2 terminals (T1, T2) to the Thermostat, Figure 5.
Figure 5 Disconnect the Thermostat
8. Remove 1 screw (Black, plastic) that secures the lamp bracket to the Fuser, Figure 6.
Figure 6 Remove the right side lamp bracket
