Phaser 4600/4620/4622 Printer Service Manual
REP 10.15
4 Repairs and Adjustments
Revised

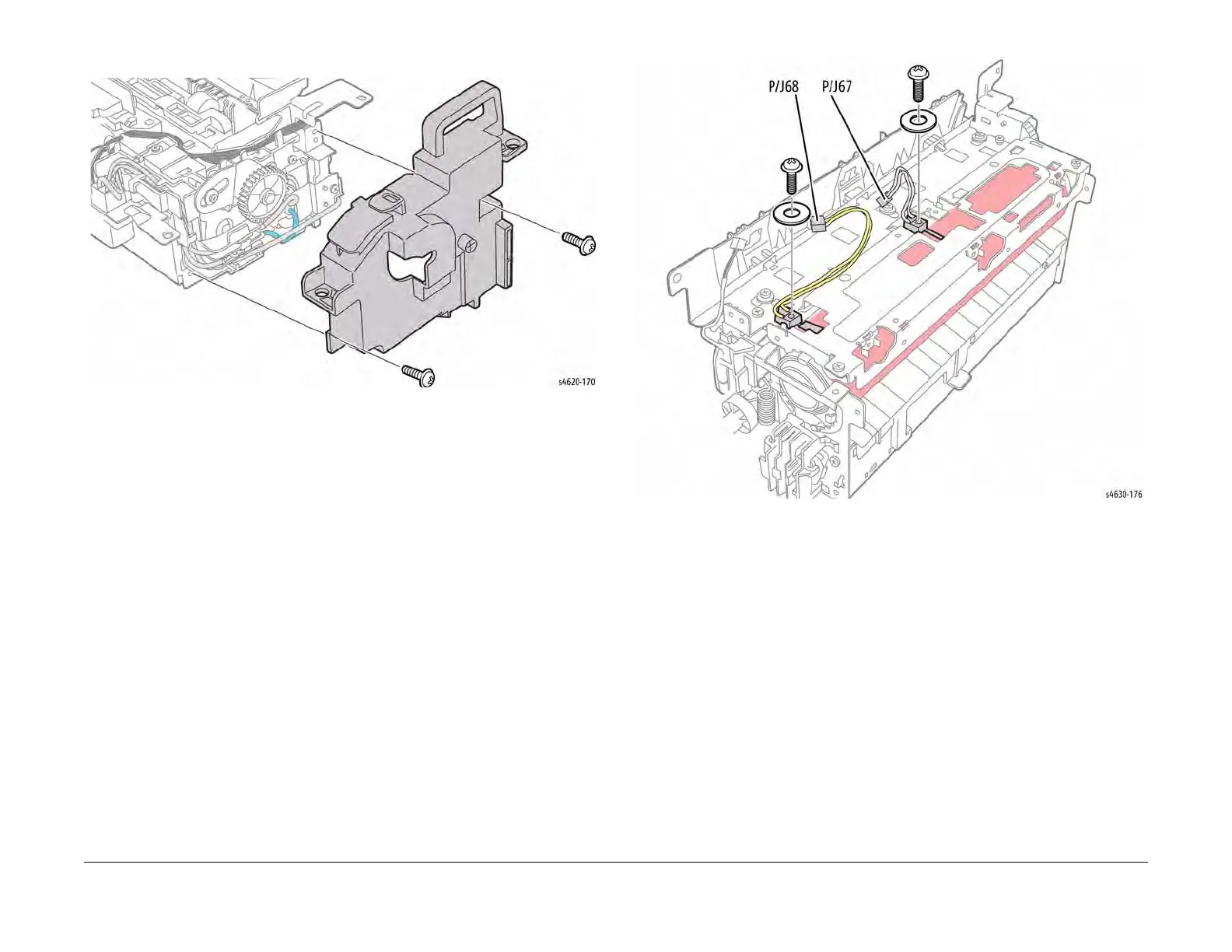

9. Remove 2 screws (silver, metal) that secure the Fuser left cover, Figure 7
Figure 7 Remove the Fuser left cover
10. Disconnect the Heat roller thermistors (P/J67 and P/J68) and release the wiring from the
thermostat holder guides, Figure 8.
Figure 8 Disconnect Heat Roller thermistors
11. Remove 1 screw that secures the Thermostat holder to the Fuser and move the holder
right to release the hooks, Figure 9.
