Xerox Phaser 4600

04/2016
4-112
Phaser 4600/4620/4622 Printer Service Manual
REP 10.15
Revised
4 Repairs and Adjustments

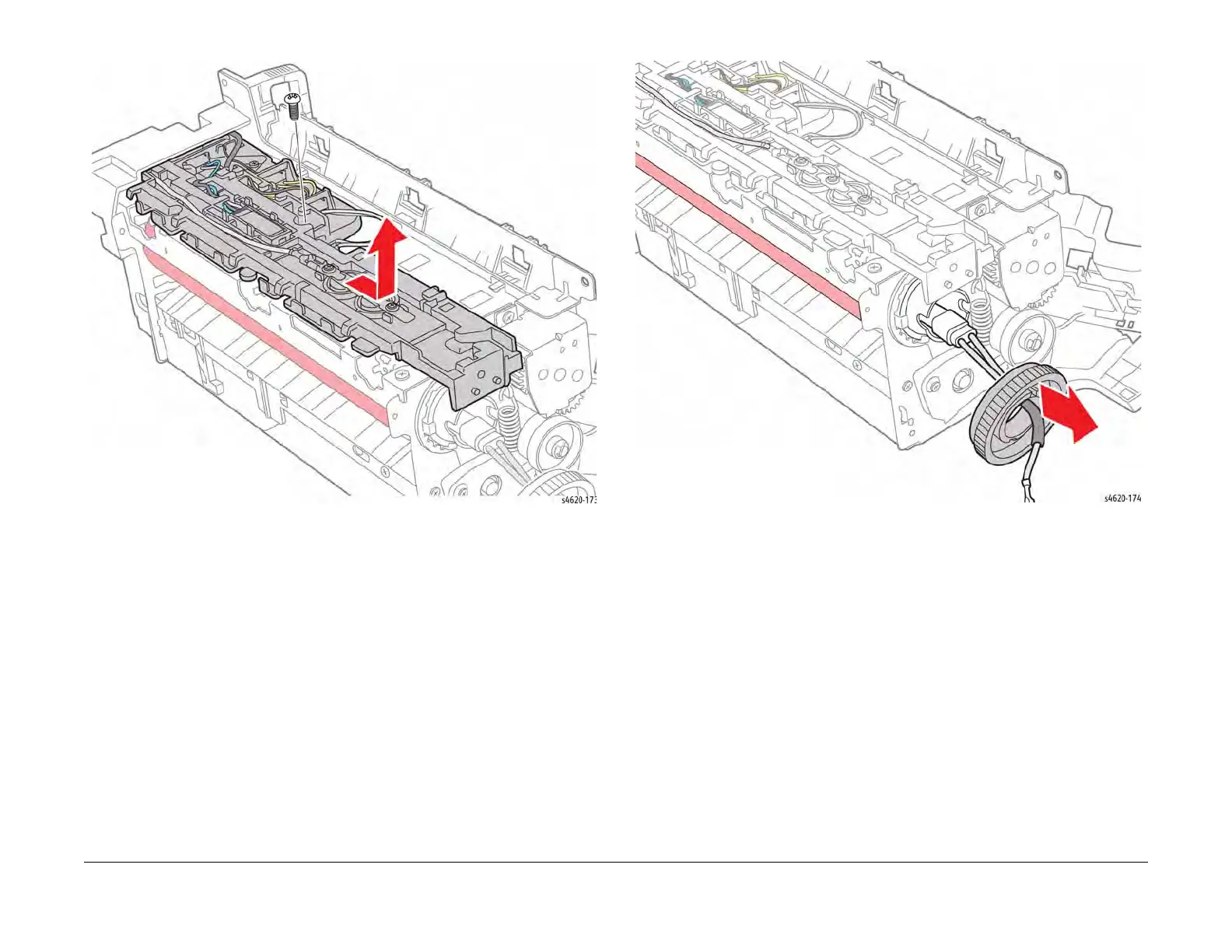

Figure 9 Remove the thermostat holder
12. Remove the Fuser Gear from the Heat Roller, Figure 10.
Figure 10 Remove the Fuser Gear
13. Remove 3 screws (silver, metal with washers) and release 3 hooks that secure the upper
exit guide to the Fuser. Open the lower exit guide if closed earlier, Figure 11.
