Phaser 4600/4620/4622 Printer Service Manual
REP 10.15
4 Repairs and Adjustments
Revised

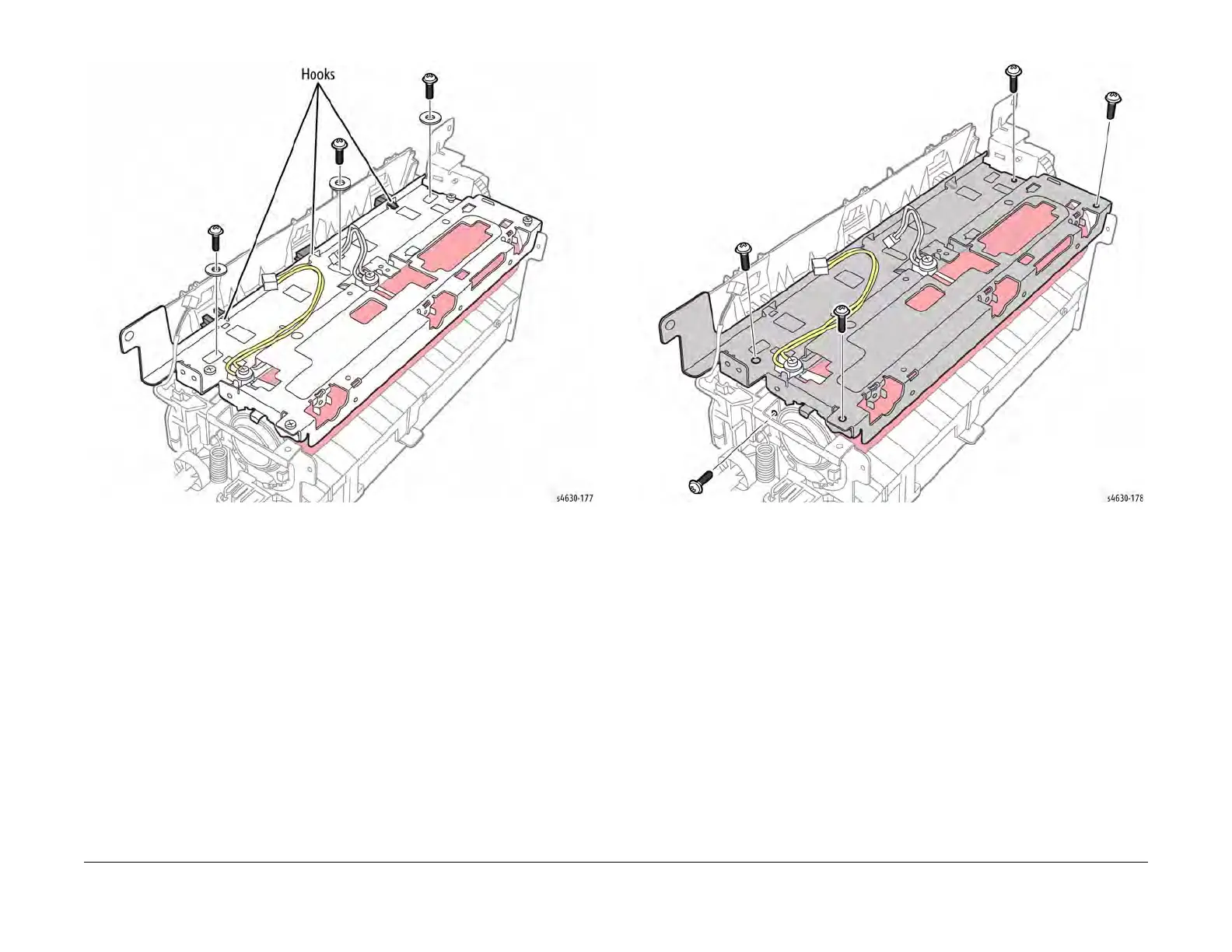

Figure 11 Remove the upper exit guide
14. Remove 5 screws (silver, metal) that secure the upper fuser bracket, Figure 12.
Figure 12 Remove the upper fuser bracket
15. Remove the Heat Roller and Bearings from the Fuser, Figure 13.
