Xerox Phaser 4600 Service Manual

04/2016
8-14
Phaser 4600/4620/4622 Printer Service Manual
Major IOT Assemblies
Revised
8 Principles of Operation
Printer Drive
The Drive subsystem includes motors and their driven assemblies.
Main Drive Assembly
This assembly includes 3 motors. One drives media transport, one drives the Toner Cartridge
auger, and a third drives the Drum Cartridge. The assembly gets +24 VDC power from the
SMPS. Motor control signals come from the MCU Board.

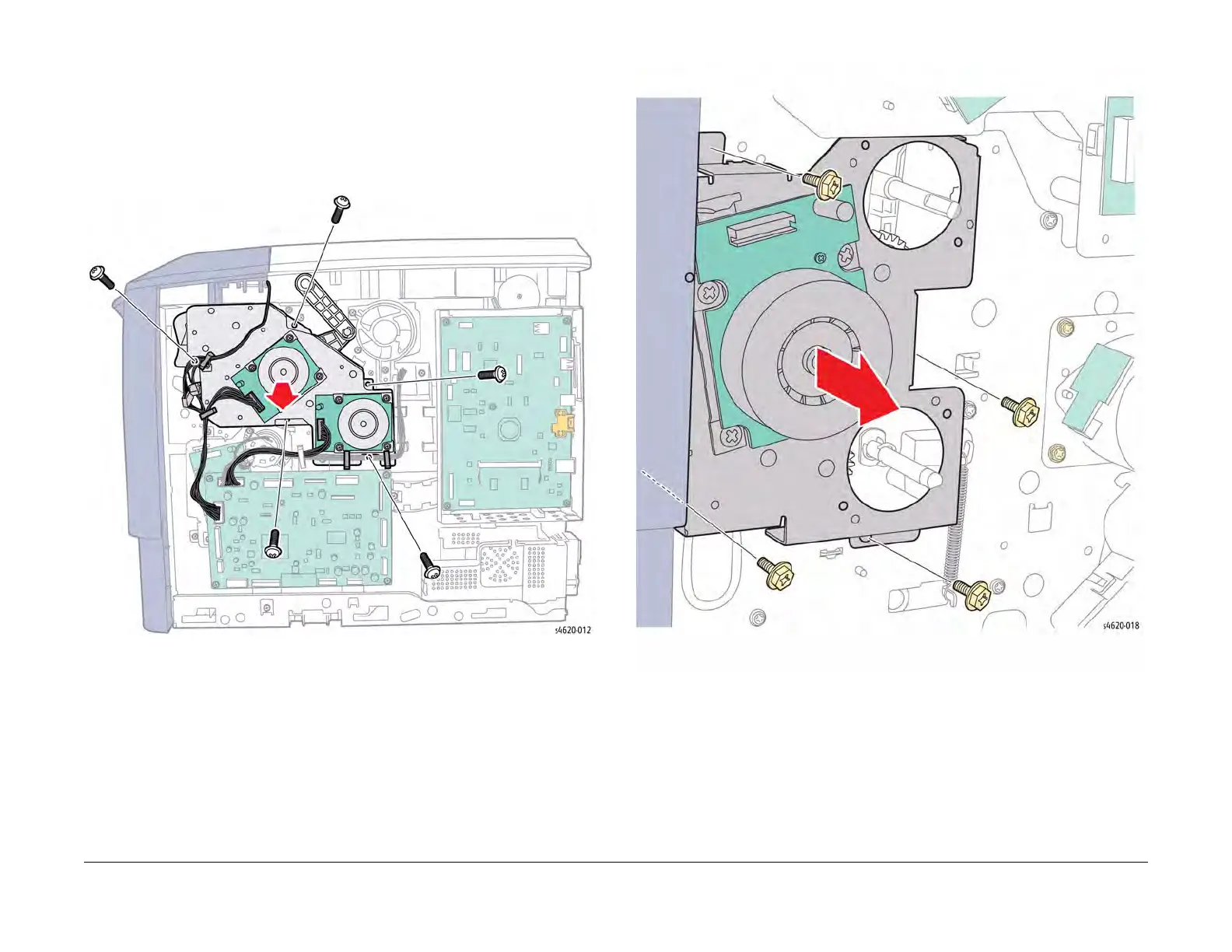

Figure 5 Main Drive Assembly
Feed Drive Assembly
The Feed Drive Assembly drives the Tray 2 feeder and Registration Roller Assembly.
Figure 6 Feed Drive Assembly
Fuser Drive Assembly
The Fuser Drive Assembly drives the Fuser Rollers.

Xerox Phaser 4600 Specifications

General

Print Technology	Laser
Print Resolution	Up to 1200 x 1200 dpi
Monthly Duty Cycle	Up to 275, 000 pages
Maximum Paper Capacity	3, 750 sheets
Processor	533 MHz
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet 10/100/1000Base-T
Memory	256 MB
Maximum Paper Size	8.5 x 14 inches
Print Languages	PCL 6, PostScript 3
Duplex Printing	Standard
Weight	25.9 kg
