Xerox Phaser 4600 Service Manual

04/2016
8-16
Phaser 4600/4620/4622 Printer Service Manual
Major IOT Assemblies
Revised
8 Principles of Operation

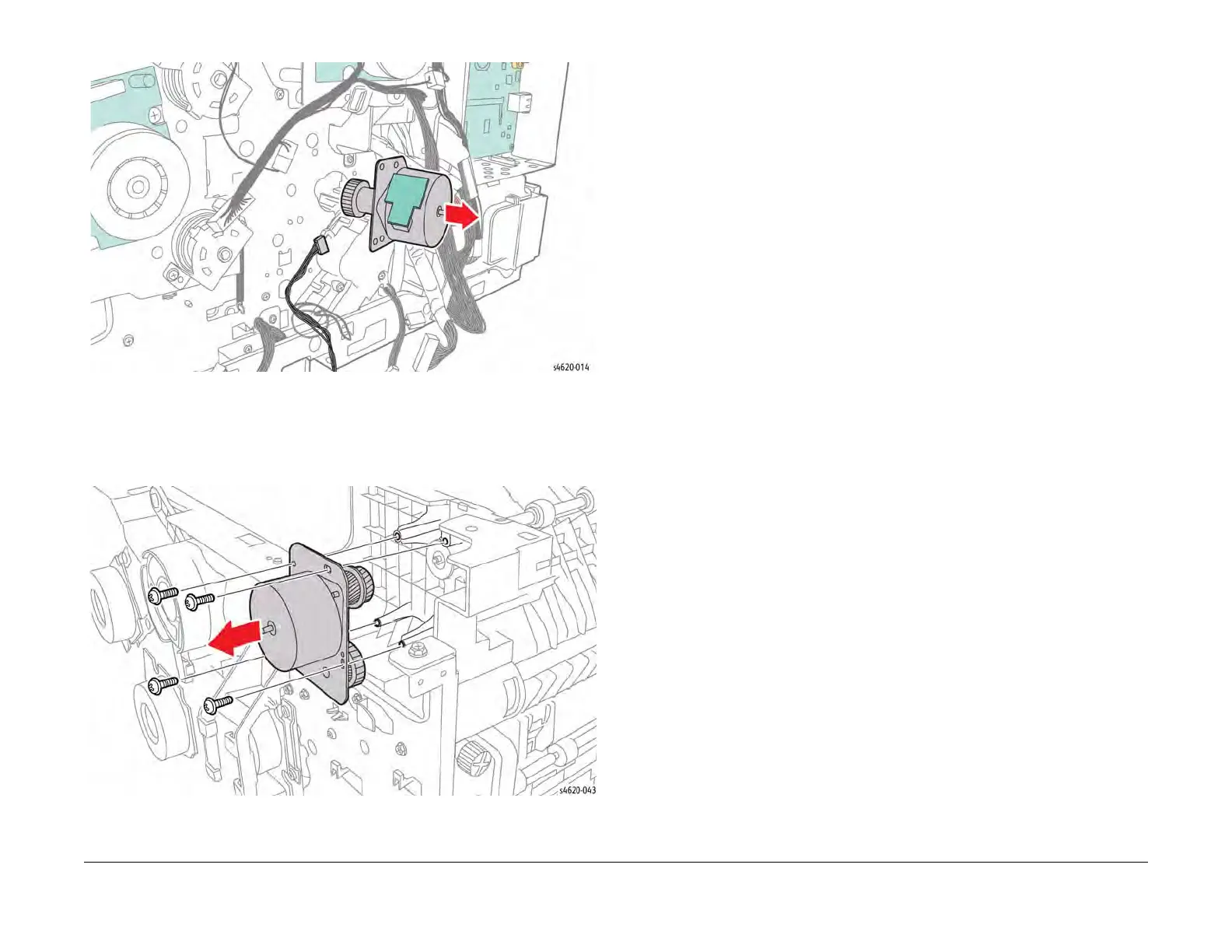

Figure 9 Duplex Drive Assembly
Exit Drive Assembly
The Exit Drive Assembly, drives the exit rollers in the Exit Assembly.
Figure 10 Exit Drive Assembly
Printer Electrical
Image Processor Board
The function of the IP Board is to receive host data through one of the following available ports
(USB, or Ethernet). The received host data is buffered and stored and sent to the print engine
in a rasterized format. The secondary function of the I/P Board is to provide print control, Con-
trol Panel control, configuration setup, error reporting, and job recovery.
The IP Board connects to the MCU Board directly. The Control Panel is connected to the I/P
Board and signals pass through the MCU Board via the I/P Board.

Xerox Phaser 4600 Specifications

General

Print Technology	Laser
Print Resolution	Up to 1200 x 1200 dpi
Monthly Duty Cycle	Up to 275, 000 pages
Maximum Paper Capacity	3, 750 sheets
Processor	533 MHz
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet 10/100/1000Base-T
Memory	256 MB
Maximum Paper Size	8.5 x 14 inches
Print Languages	PCL 6, PostScript 3
Duplex Printing	Standard
Weight	25.9 kg
