4.5 I/O Signal Connections
4.5.3 I/O Circuits
4-42

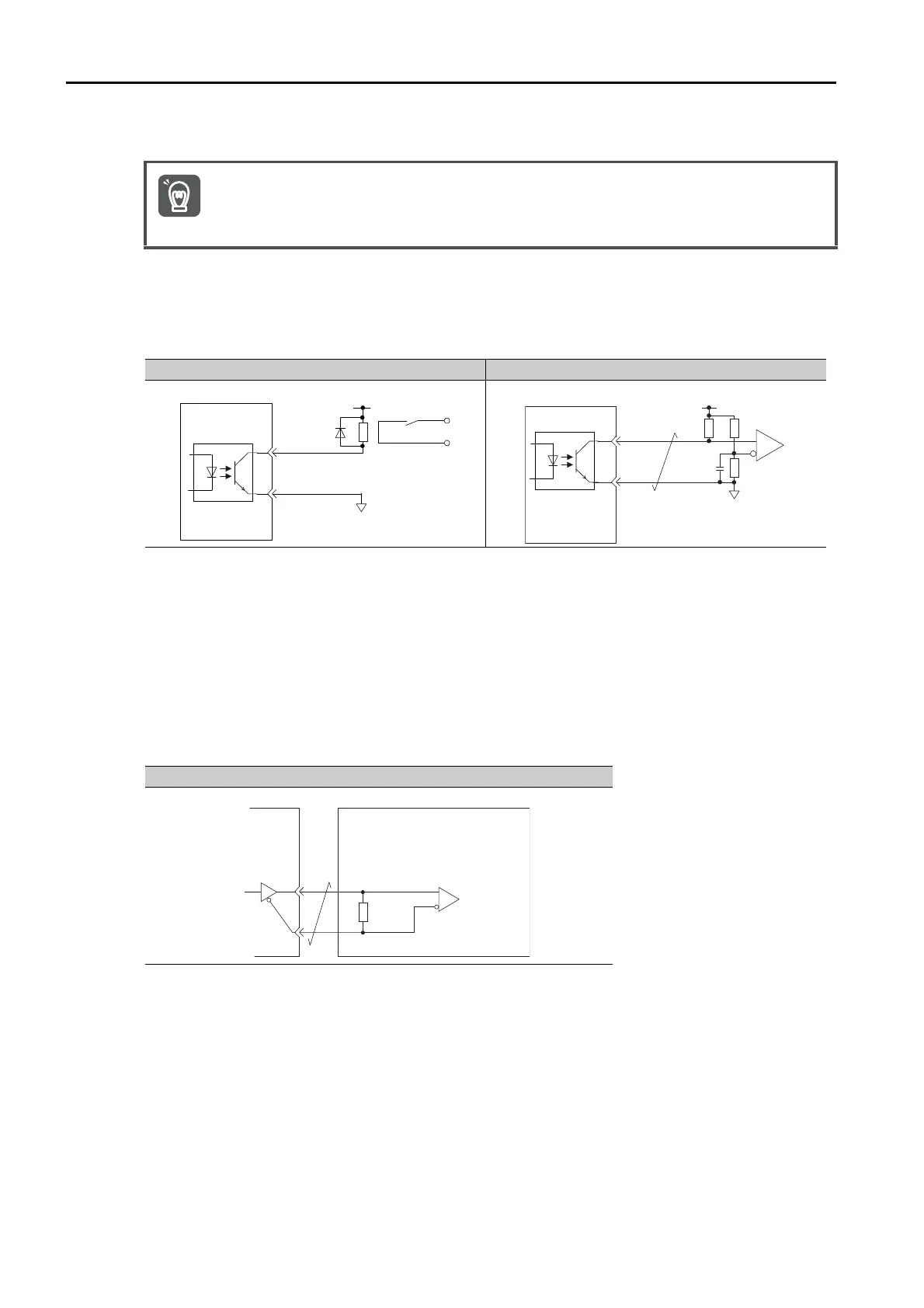

Sequence Output Circuits
Photocoupler Output Circuits
Photocoupler output circuits are used for the ALM (Servo Alarm), /S-RDY (Servo Ready), and
other sequence output signals. Connect a photocoupler output circuit to a relay or line-receiver
circuit.
Note: The maximum allowable voltage and current range for photocoupler output circuits are as follows:
• Maximum allowable voltage: 30 VDC
• Current range: 5 mA to 50 mA DC
Line-Driver Output Circuits
This section describes CN1 connector terminals 17-18 (Phase-A Signal), 19-20 (Phase-B Sig-
nal), and 21-22 (Phase-C Signal).
The serial data from the encoder is converted to two-phase (phases A and B) pulses. The
resulting output signals (PAO, /PAO and PBO, /PBO), origin pulse signal (PCO and /PCO), and
the absolute encoder position output signals (PSO and /PSO) are output with line-driver output
circuits. Connect the line-driver output circuits to line-receiver circuits at the host controller.
Incorrect wiring or incorrect voltage application to the output circuits may cause short-circuit fail-
ures.
If a short-circuit failure occurs as a result of any of these causes, the holding brake will not work.
This could damage the machine or cause an accident that may result in death or injury.
Example for Relay Circuit Example for Line-Receiver Circuit
Example for Line-Receiver Circuit
0V
Relay
5 VDC to 30 VDC
SERVOPACK
Applicable line receiver:
SN75ALS175 or MC3486
manufactured by Texas Instruments
or the equivalent
Output line driver:
SN75ALS174 or
the equivalent
Host controller
SERVOPACK
220 Ω to
470 Ω
To Next Page
