5.15 Resetting the Absolute Encoder
5.15.3 Applicable Tools
5-48
5.15.3 Applicable Tools
The following table lists the tools that you can use to reset the absolute encoder and the appli-
cable tool functions.
5.15.4 Operating Procedure

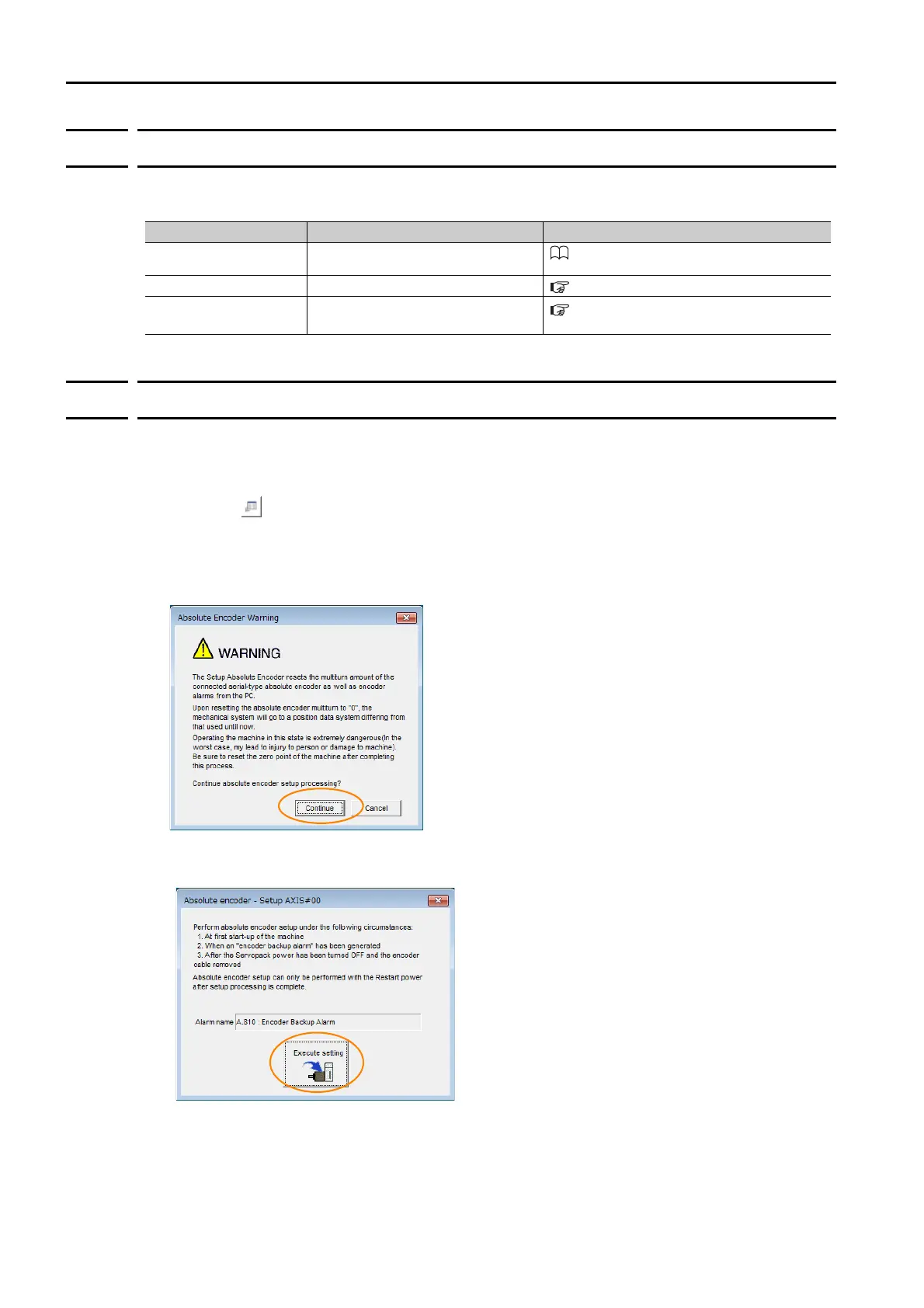

Use the following procedure to reset the absolute encoder.
1. Confirm that the servo is OFF.
2.
Click the Servo Drive Button in the workspace of the Main Window of the SigmaWin+.
3. Select Absolute Encoder Reset in the Menu Dialog Box.
The Absolute Encoder Reset Dialog Box will be displayed.
4. Click the Continue Button.
Click the Cancel Button to cancel resetting the absolute encoder. The Main Window will return.
5. Click the Execute setting Button.
The current alarm code and name will be displayed in the Alarm name Box.
Tool Function Reference
Digital Operator Fn008
Σ-7-Series Digital Operator Operating
Manual (Manual No.: SIEP S800001 33)
SigmaWin+ Setup - Absolute Encoder Reset
5.15.4 Operating Procedure on page 5-48
Serial command com-
munications
ABSPGRES utility command
Monitor and Utility Function Commands
on page 14-32
