1.5 Interpreting Panel Displays

1.5.2 Indicators

1-11

Basic Information

1.5.2

Indicators

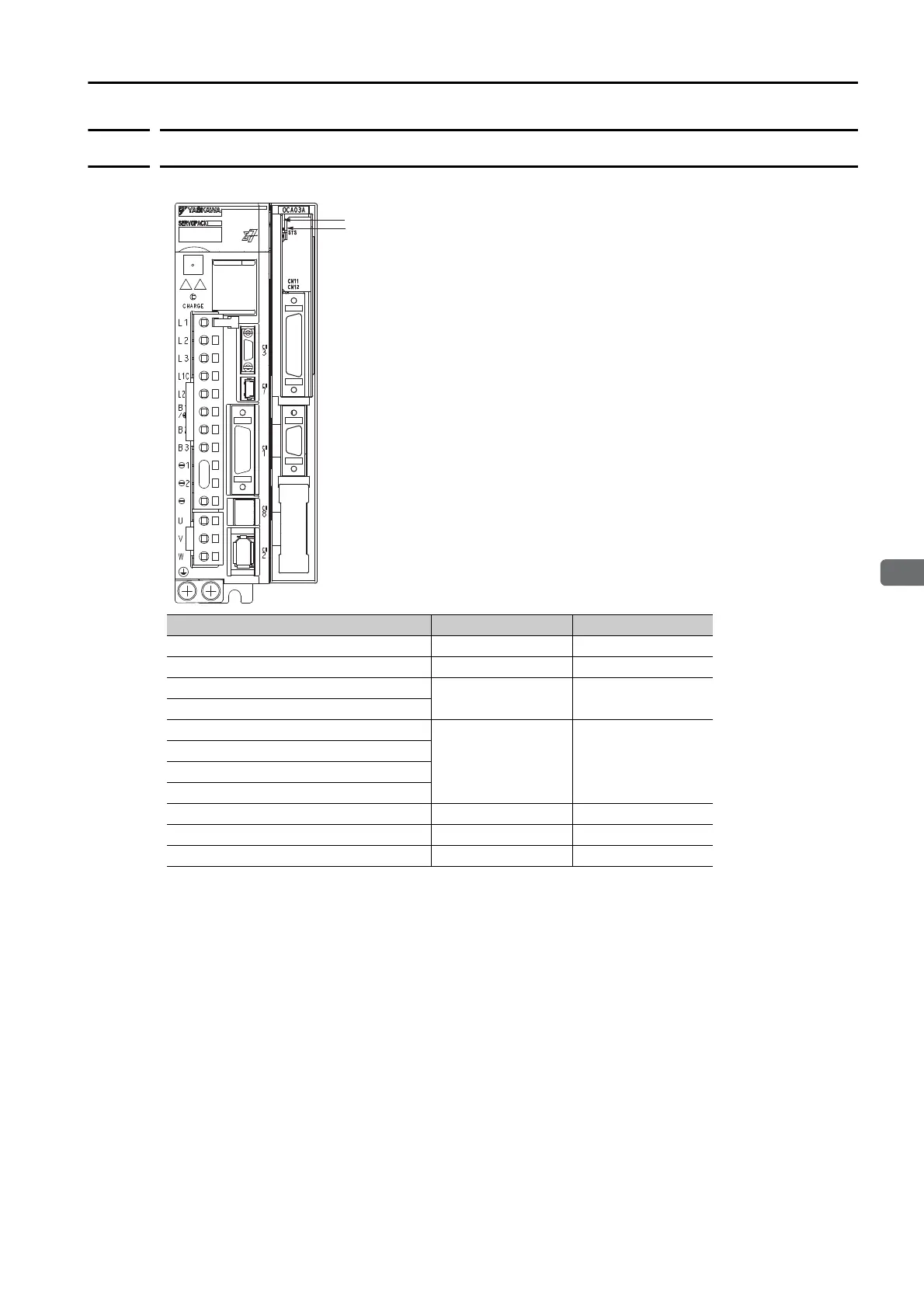

This section describes the indicator status on the INDEXER Module.

Status Red indicator Green indicator

Control Power Supply OFF Not lit Not lit

Control Power Supply ON Not lit Flashing

Normal

Not lit Lit

Overtravel/Software Limit Activated

Resetting

− Flashing

Saving a Table

Initializing a Table

Initializing Parameters

Error Flashing (2 seconds) −

Warning Flashing −

Alarm Lit Not lit

Red indicator

Green indicator
