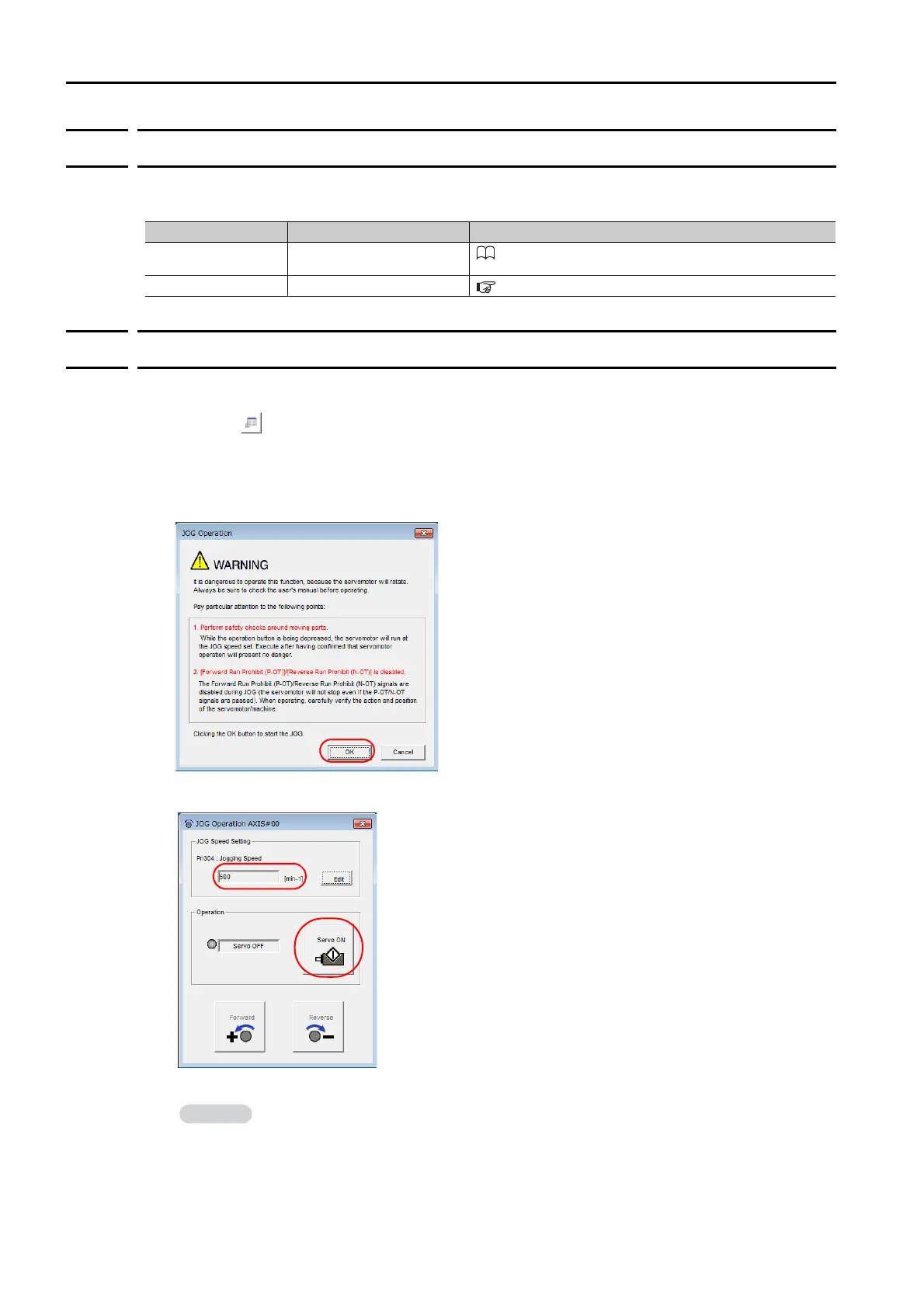

7.3 Trial Operation for the Servomotor without a Load
7.3.2 Applicable Tools
7-8
7.3.2
Applicable Tools
The following table lists the tools that you can use to perform jog operation and the applicable
tool functions.
7.3.3
Operating Procedure
Use the following procedure for a jog operation.
1.
Click the Servo Drive Button in the workspace of the Main Window of the SigmaWin+.
2.
Select JOG Operation in the Menu Dialog Box.
The Jog Operation Dialog Box will be displayed.
3.
Read the warnings and then click the OK Button.
4.
Check the jog operation speed and then click the Servo ON Button.
The display in the Operation Area will change to Servo ON.
Tool Function Operating Procedure Reference
Digital Operator Fn002
Σ-7-Series Digital Operator Operating Manual (Manual
No.: SIEP S800001 33)
SigmaWin+ Test Run - Jog
Operating Procedure on page 7-8
To change the speed, click the Edit Button and enter the new speed.
