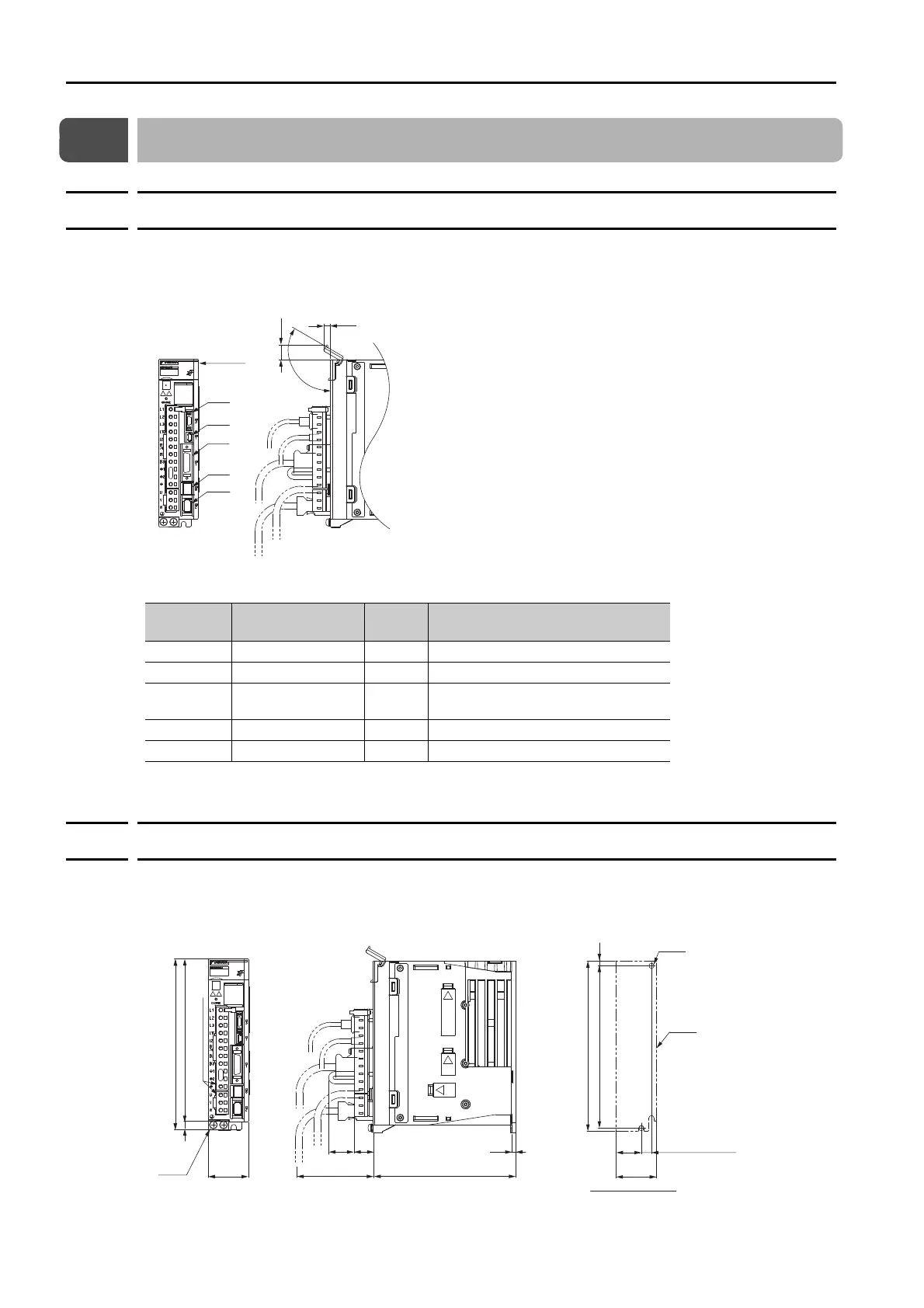

YASKAWA E-7S SERVOPACK SGD7S - External Dimensions; Front Cover Dimensions and Connector Specifications; SERVOPACK External Dimensions

2.3 External Dimensions
2.3.1 Front Cover Dimensions and Connector Specifications
2-20
2.3 External Dimensions
2.3.1 Front Cover Dimensions and Connector Specifications
The front cover dimensions and panel connector section are the same for all models. Refer to
the following figures and table.
•
Front Cover Dimensions
•
Connector Specifications
Note: The above connectors or their equivalents are used for the SERVOPACKs.
2.3.2 SERVOPACK External Dimensions
Base-mounted SERVOPACKs
• Three-phase, 200 VAC: SGD7S-R70A, -R90A, and -1R6A
Connector
No.
Model
Number
of Pins
Manufacturer
CN1 10226-59A3MB 26 3M Japan Limited
CN2 3E106-0220KV 6 3M Japan Limited
CN3
HDR-EC14LFDTN-
SLD-PLUS
14 Honda Tsushin Kogyo Co., Ltd.
CN7 2172034-1 5 Tyco Electronics Japan G.K.
CN8 1981080-1 8 Tyco Electronics Japan G.K.
CN3
CN1
CN8
CN2
Front
cover
CN7
(7)
(15)
(120°)
Ground
terminals
2 × M4
Exterior
10 ±0.5 (mounting pitch)
Mounting Hole Diagram
Unit: mm
Approx. mass: 0.8 kg
Two sets of terminals
2 × M4
168
160 ±0.5 (mounting pitch)
5
25
40
40
(75)
140
18
(4)
160
168
8
(25)
