3.4 Mounting Hole Dimensions
3-5
3.4
Mounting Hole Dimensions
Use mounting holes to securely mount the SERVOPACK to the mounting surface.
Note: To mount the SERVOPACK, you will need to prepare a screwdriver that is longer than the depth of the SER-
VOPACK.

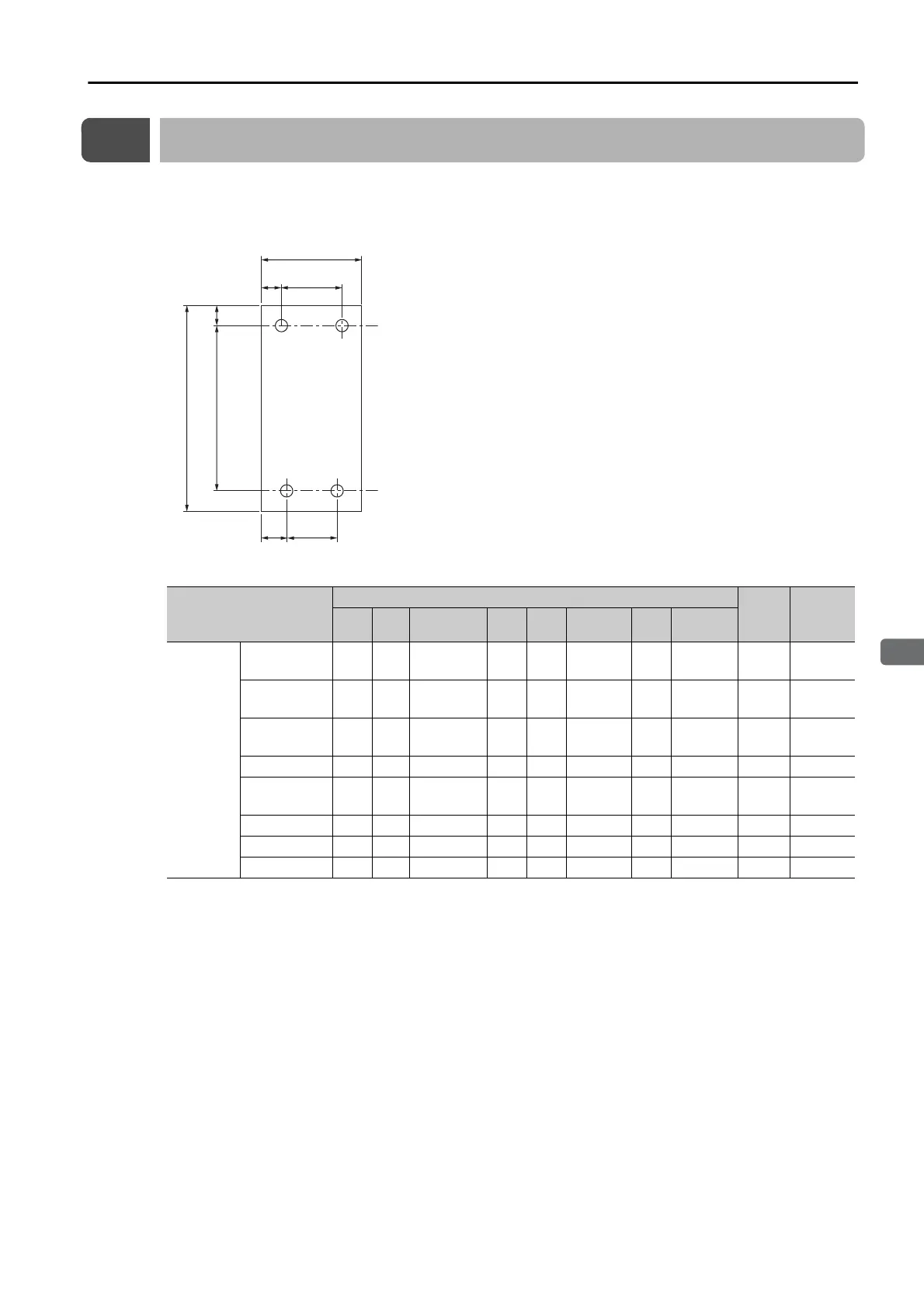

Σ-7-series Mounting Hole Dimensions
SERVOPACK Model
Dimensions (mm)
Screw
Size
Number
of
Screws
A B C D E F G H
SGD7S-
R70A, R90A,
1R6A
168 5 160 ±0.5 40 35 − 25 − M4 2
2R8A, R70F,
R90F, 2R1F
168 5 160 ±0.5 40 5 − 25 − M4 2
3R8A, 5R5A,
7R6A, 2R8F
168 5 160 ±0.5 70 6 58 ±0.5 64 − M4 3
120A 168 5 160 ±0.5 90 5 80 ±0.5 12.5 − M4 3
180A, 200A,
120AE0A008
188 5 180 ±0.5 100 95 − 12.5 75 ±0.5 M4 3
330A 258 6 250 ±0.5 110 5 100 ±0.5 13 84 ±0.5 M5 4
470A, 550A 315 6 302.5 ±0.5 170 14 142 ±0.5 14 142 ±0.5 M6 4
590A, 780A 390 7.5 375 ±0.5 260 30 200 ±0.5 30 200 ±0.5 M6 4
D
EF
H
A
BC
G
