13.3 Program Table Operation
13.3.10 Output Response Times after /START-STOP Turns ON
13-43
13
Operation with Digital I/O
13.3.10 Output Response Times after /START-STOP Turns ON
The response times for starting the Servomotor, the /INPOSITION signal, and the /POUT0 to /
POUT7 signals when the /START-STOP signal is turned ON to start program table operation
are shown below.
Note: In the following cases, the response times can be as long as 16 ms max.
• When program table operation is stopped (including when it is stopped for an error)
• When the motor stops due to overtravel

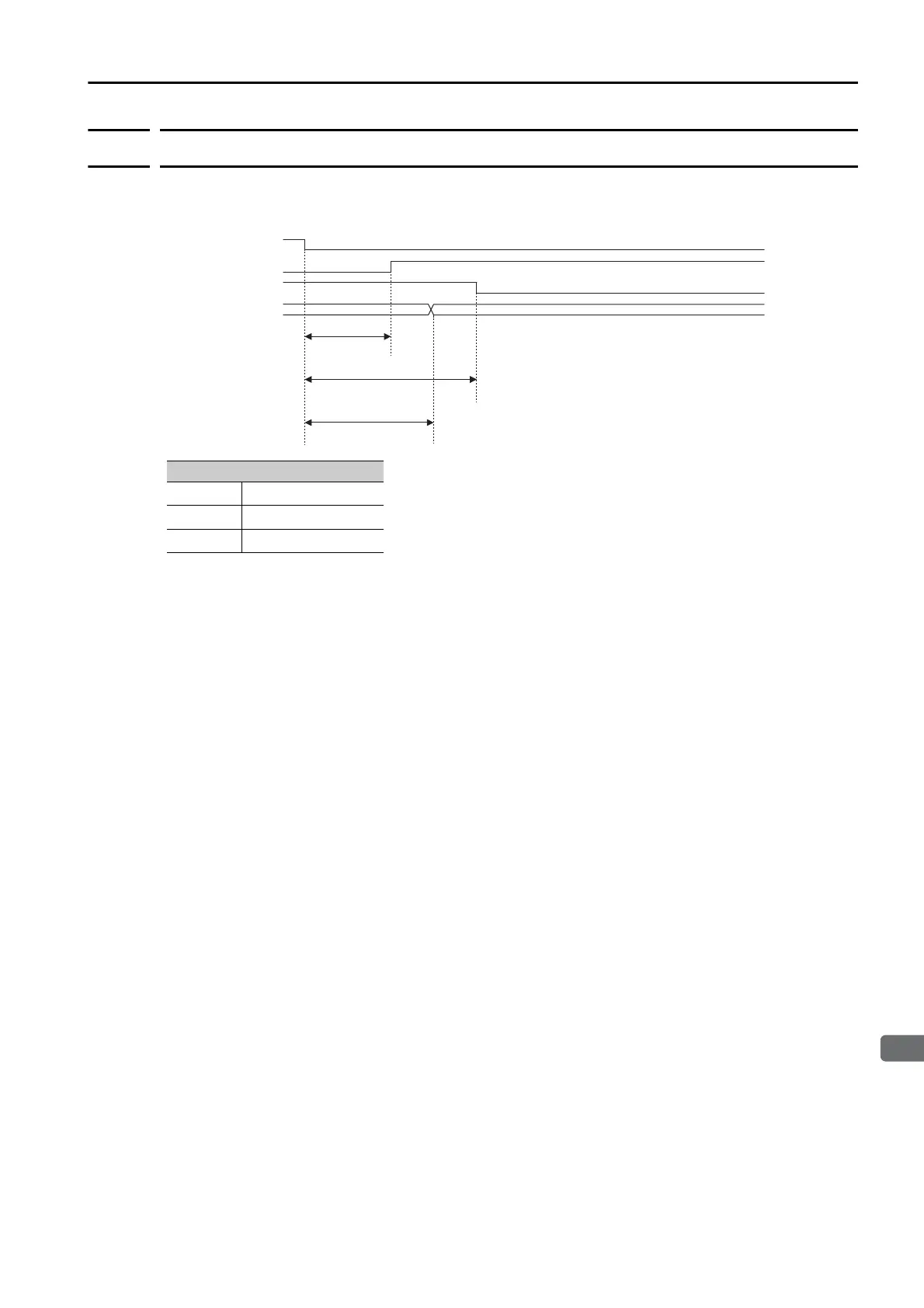

Response Times
t
M
6 ms max.
t
I
8 ms max.
t
P
6 ms max.
/START-STOP
t
M
/POUT0 to /POUT7
Motor movement
/INPOSITION
t
I
t
P
