13.4 Jog Speed Table Operation
13.4.5 Jog Speed Table Operation Example
13-50
This concludes the saving procedure.
13.4.5 Jog Speed Table Operation Example

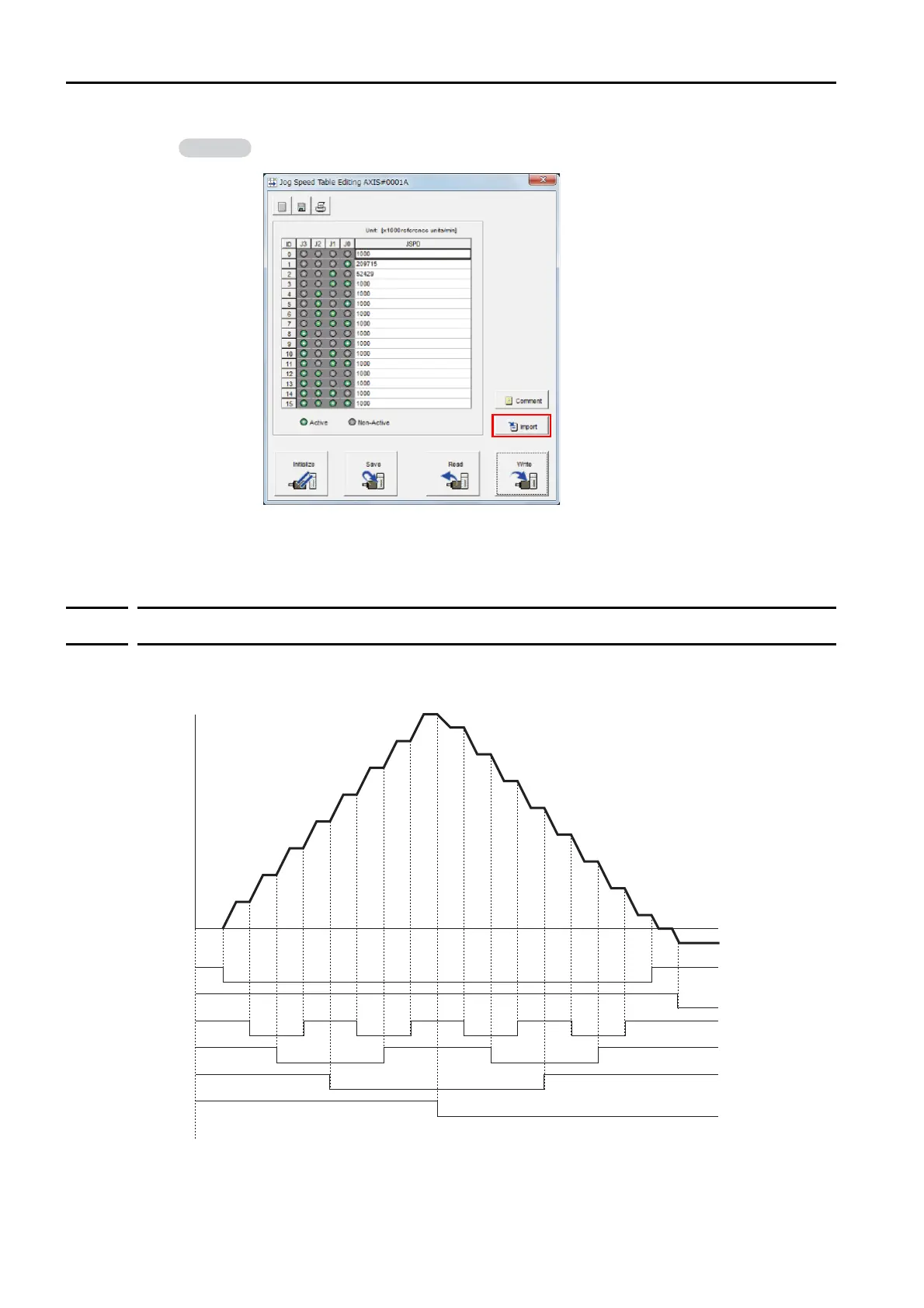

This example shows how to perform operation by using the /JOG0 to /JOG3 (Jog Speed
Selection) signals to specify the jog speeds that are registered in the jog speed table.
*1. Forward operation at the jog speed is performed while the /JOGP signal is ON.
*2. Reverse operation at the jog speed is performed while the /JOGN signal is ON.
You can use the Import Button to load the jog speed table saved in a file to the SERVO-
PACK.
Information
Speed
/JOGP
*1
/JOGN
*2
/JOG0
/JOG1
/JOG2
/JOG3
JSPD0
JSPD1
JSPD3
JSPD2
JSPD6
JSPD7
JSPD5
JSPD4
JSPD12
JSPD13
JSPD15
JSPD14
JSPD10
JSPD11
JSPD9
JSPD8
JSPD8
