YASKAWA E-7S SERVOPACK SGD7S - Using a Tool Function to Perform Polarity Detection

5.9 Polarity Detection
5.9.3 Using a Tool Function to Perform Polarity Detection
5-26
5.9.3 Using a Tool Function to Perform Polarity Detection
Applicable Tools
The following table lists the tools that you can use to perform polarity detection and the appli-
cable tool functions.

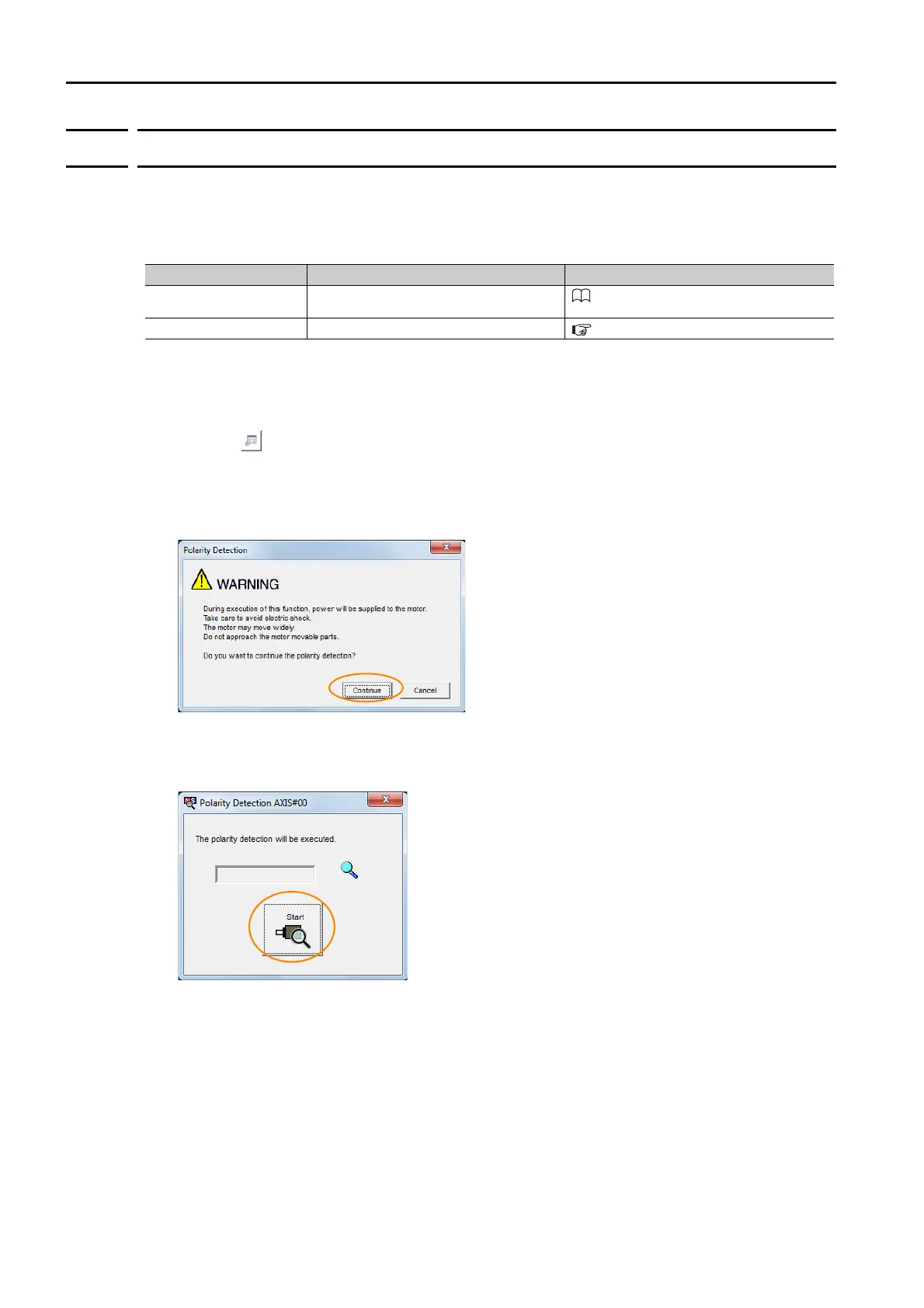

Operating Procedure
Use the following procedure to perform polarity detection.
1.
Click the Servo Drive Button in the workspace of the Main Window of the SigmaWin+.
2. Select Polarity Detection in the Menu Dialog Box.
The Polarity Detection Dialog Box will be displayed.
3. Click the Continue Button.
Click the Cancel Button to cancel polarity detection. The Main Window will return.
4. Click the Start Button.
Polarity detection will be executed.
This concludes the polarity detection procedure.
Tool Function Reference
Digital Operator Fn080
Σ-7-Series Digital Operator Operating
Manual (Manual No.: SIEP S800001 33)
SigmaWin+ Setup - Polarity Detection
Operating Procedure on page 5-26
