5.6 Writing Linear Servomotor Parameters
5-18
Operating Procedure
Use the following procedure to write the motor parameters to the Linear Encoder.
1.
Prepare the motor parameter file to write to the linear encoder.
2.
Click the Servo Drive Button in the workspace of the Main Window of the Sig-
maWin+.
3.

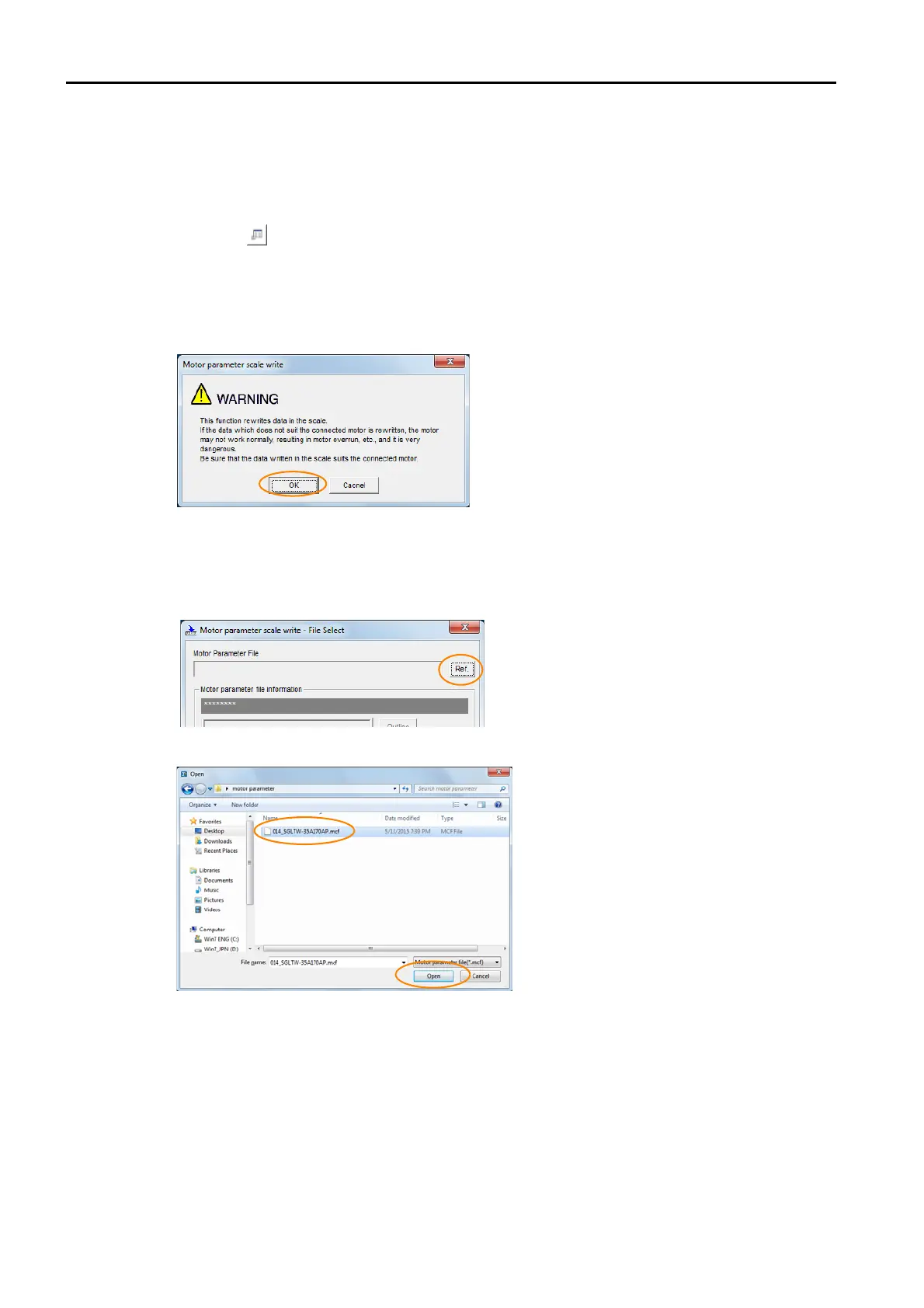

Select Motor Parameter Scale Write in the Menu Dialog Box.
The Motor Parameter Scale Write Dialog Box will be displayed.
4.
Click the OK Button.
Click the Cancel Button to cancel writing the motor parameters to the linear encoder. The Main Win-
dow will return.
If the write is completed normally, the Motor Parameter Scale Write - File Select Dialog Box will be
displayed.
5.
Click the Ref. Button.
6.
Select the motor parameter file that you prepared and click the Open Button.
To Next Page
