6.7 Absolute Encoders
6.7.3 Multiturn Limit Disagreement Alarm (A.CC0)
6-27

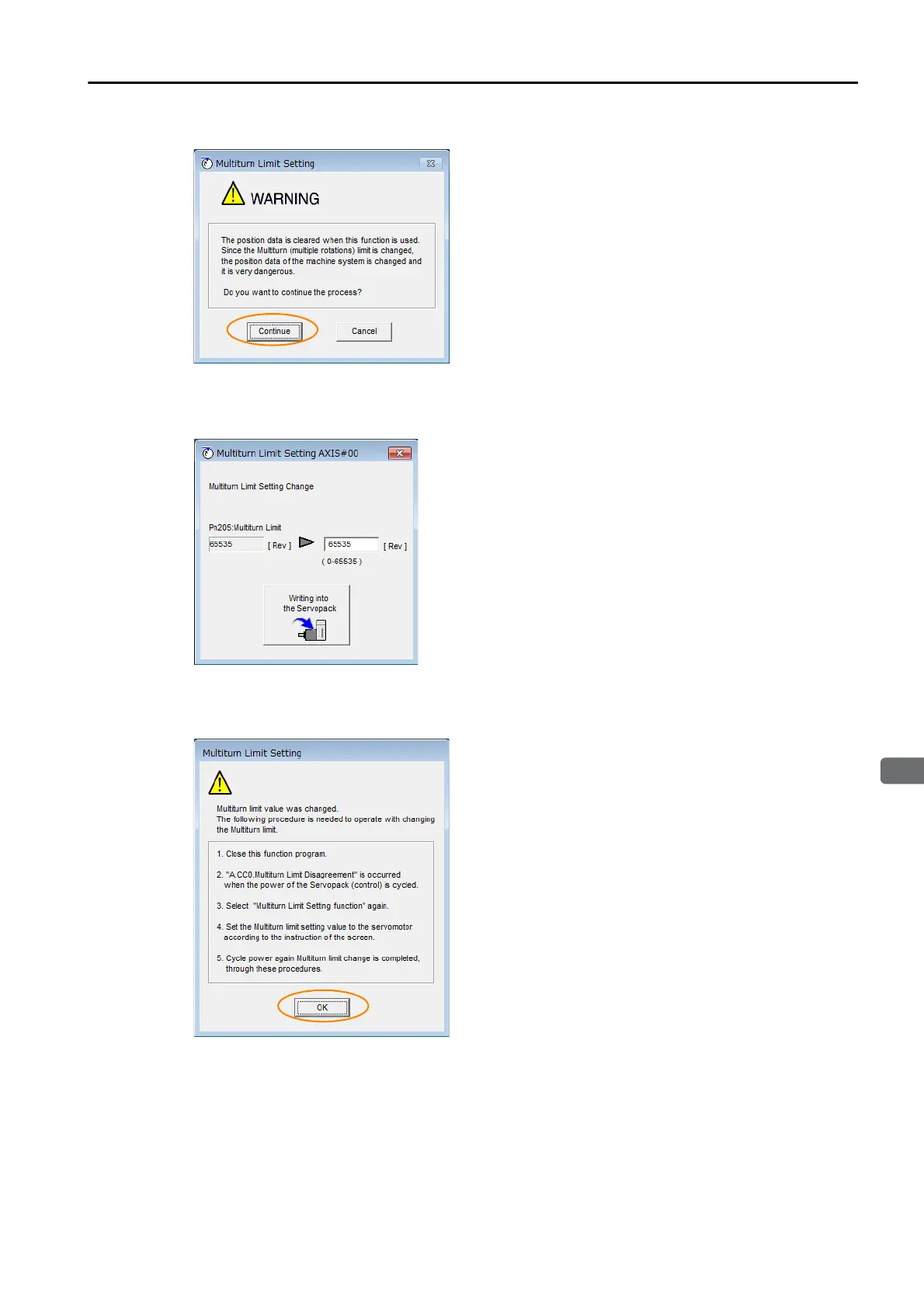

3.
Click the Continue Button.
Click the Cancel Button to cancel setting the multiturn limit.
The Main Window will return.
4.
Change the setting.
5.
Click the Writing into the Servopack Button.
6.
Click the OK Button.
7.
Turn the power supply to the SERVOPACK OFF and ON again.
An A.CC0 alarm (Multiturn Limit Disagreement) will occur because setting the multiturn limit in the
Servomotor is not yet completed even though the setting has been changed in the SERVOPACK.
8.
Display the Multiturn Limit Setting in the Menu Dialog Box.
