13.3 Program Table Operation
13.3.8 Program Table Operation Examples
13-33
13
Operation with Digital I/O
Outputting POUT Signals for the Specified Time
This example shows how to output the POUT signals in the next step for the specified length of
time after completing positioning for a program step.
Positioning is registered for steps 0, 2, and 4. POUT signal outputs are specified for steps 1, 3,
and 5.

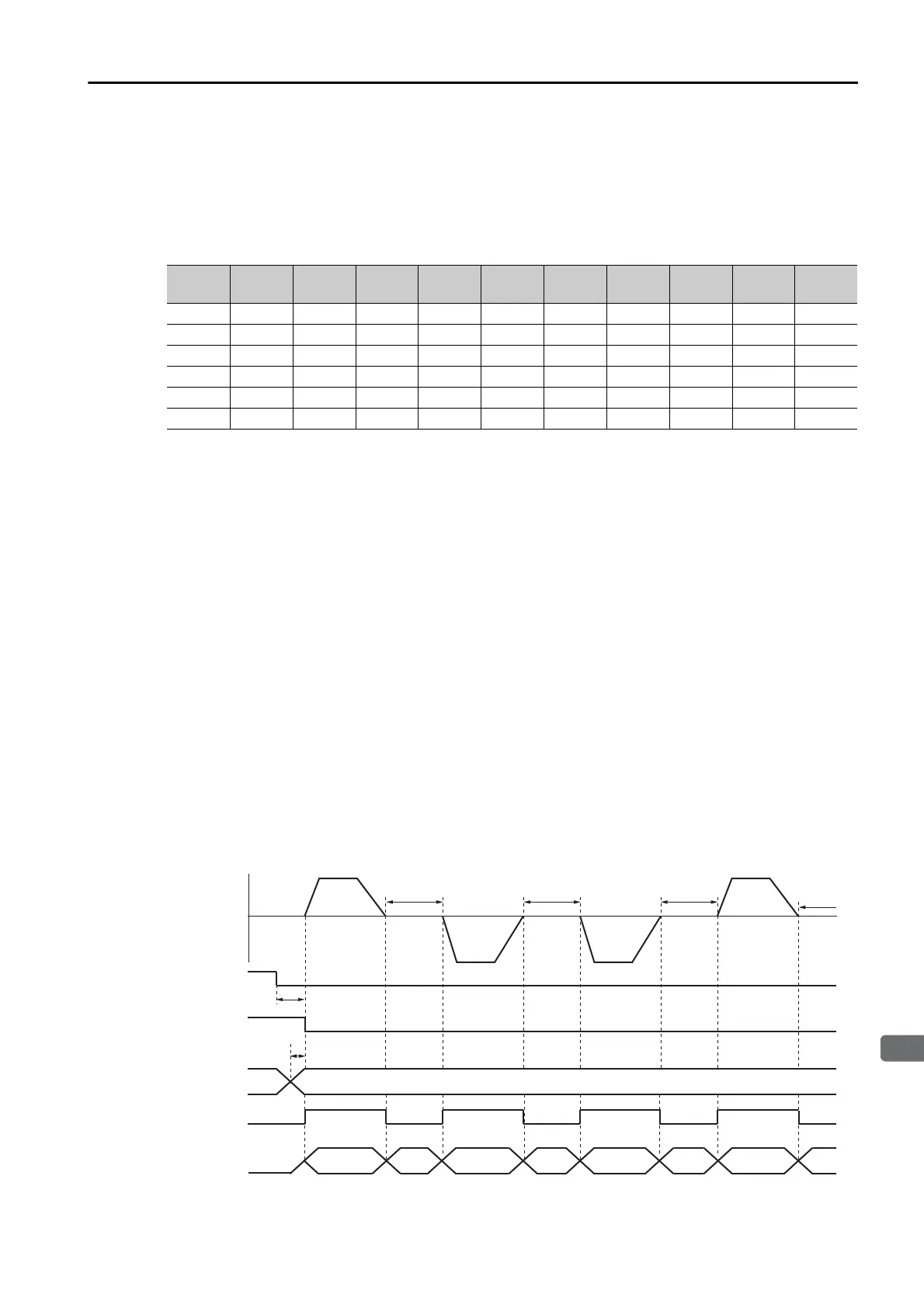

The program table for this positioning is shown below.
• Operating Procedure
Turn ON the /MODE 0/1 signal to change to mode 0.
Set the /SEL0 to /SEL7 signals to 0 to specify program step 0.
Turn ON the /START-STOP signal to start program table operation.
The /INPOSITION signal turns OFF.
When positioning is completed to the target position, the /INPOSITION signal turns ON.
Execution moves to program step 1 and the /POUT0 signal turns ON.
After a wait time of 2 seconds, execution of the program step specified with the NEXT set-
ting (program step 2) is executed.
The /INPOSITION signal turns OFF.
When positioning is completed to the target position, the /INPOSITION signal turns ON.
Execution moves to program step 3 and the /POUT1 signal turns ON.
After a wait time of 2 seconds, execution of the program step specified with the NEXT set-
ting (program step 4) is executed.
The /INPOSITION signal turns OFF.
When positioning is completed to the target position, the /INPOSITION signal turns ON.
Execution moves to program step 5 and the /POUT2 signal turns ON.
After a wait time of 2 seconds, execution of the program step specified with the NEXT set-
ting (program step 0) is executed.
The /INPOSITION signal turns OFF.
Steps 4 to 9 are repeated.
• Operation Pattern and Related Signal Timing
* Do not change /SEL0 to /SEL7 for 4 ms after turning ON the /START-STOP signal.
PGM-
STEP
POS SPD RDST RSPD ACC DEC POUT EVENT LOOP NEXT
0
I+200000
15000 – 1000 400000 200000
NNNNNNNN
IT0 1 1
1 – 15000 – 1000 : :
: : : : : : : A
T2000 1 2
2
I-200000
30000 – 1000 : :
NNNNNNNN
IT0 1 3
3 – 30000 – 1000 : :
: : : : : : A :
T2000 1 4
4
I-200000
30000 – 1000 : :
NNNNNNNN
IT0 1 5
5 – 30000 – 1000 : :
: : : : : A : :
T2000 1 0
START-STOP*
/INPOSITION
/MODE 0/1
10 020401
0
/POUT0 to
/POUT7
4 ms min.
Operation
Pattern
/SEL0 to /SEL7*
2 ms min.
Speed
Time
Mode 0 (Program Table Operation)
2 s
Step 0
Step 1
Step 3
Step 5
Step 2
2 s
Step 4
2 s
Step 0
Step 1
2 s
To Next Page
