13.5 ZONE Outputs
13.5.3 SigmaWin+ Procedures
13-55
13
Operation with Digital I/O
Editing the ZONE Table
Displaying the Zone Table Editing.
Select Zone Table Editing in the Menu Dialog Box of the SigmaWin+.

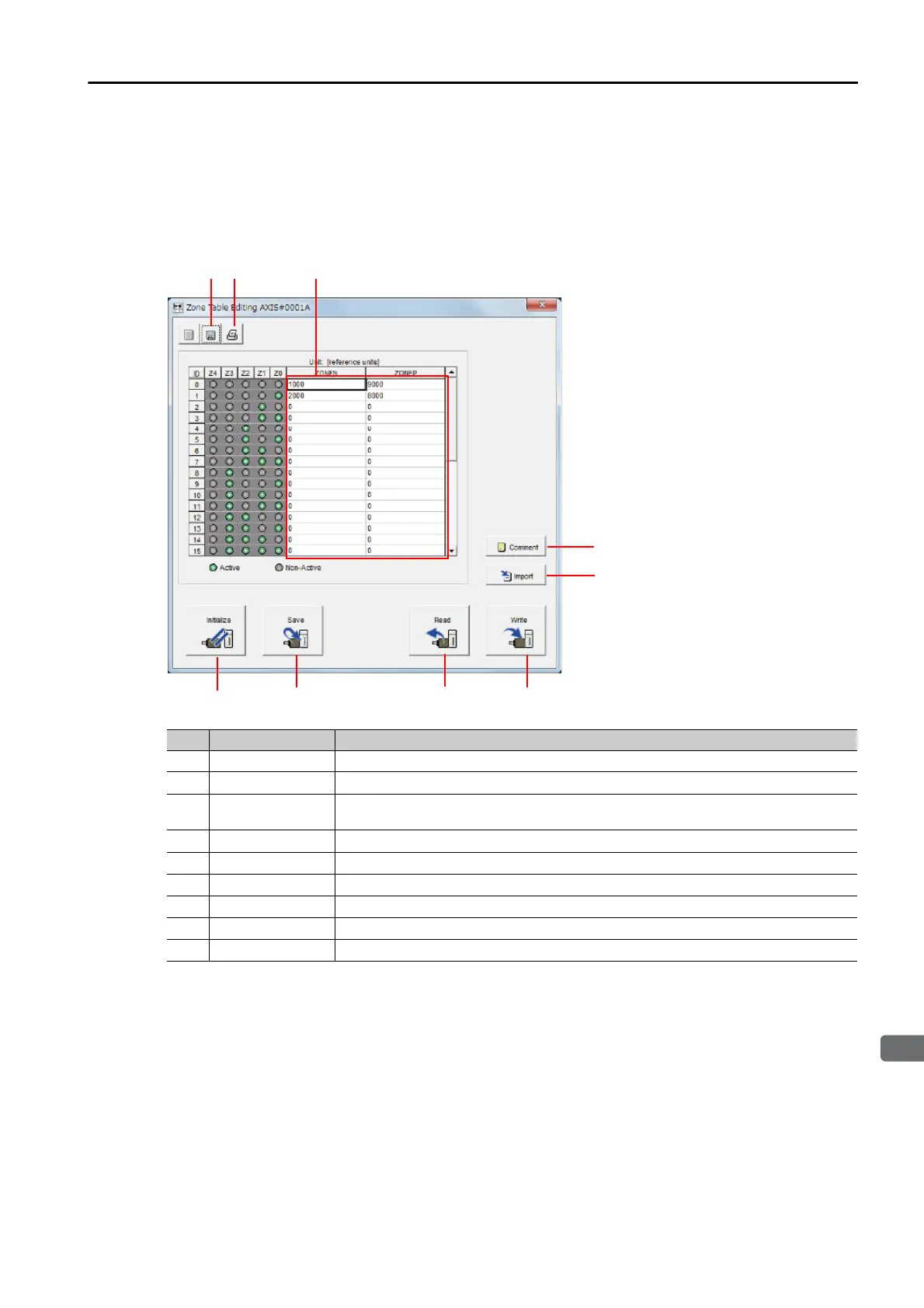

Details on the Zone Table Editing
No. Name Description
Save Button Saves the currently displayed settings to a computer file.
Print Button Prints the currently displayed settings.
Setting Area
Sets the ranges for ZONE outputs.
Select the cell and enter the value directly.
Comment Button Lets you add a comment.
Import Button Imports a ZONE table from a file saved on the computer to the SigmaWin+.
Initialize Button Initializes the flash memory in the SERVOPACK.
Save Button Saves the settings in the SERVOPACK to flash memory.
Read Button Reads the settings in the SERVOPACK to the SigmaWin+.
Write Button Writes the currently displayed settings to the SERVOPACK.
