YASKAWA E-7S SERVOPACK SGD7S - Page 86

2.3 External Dimensions
2.3.2 SERVOPACK External Dimensions
2-25
2
Selecting a SERVOPACK

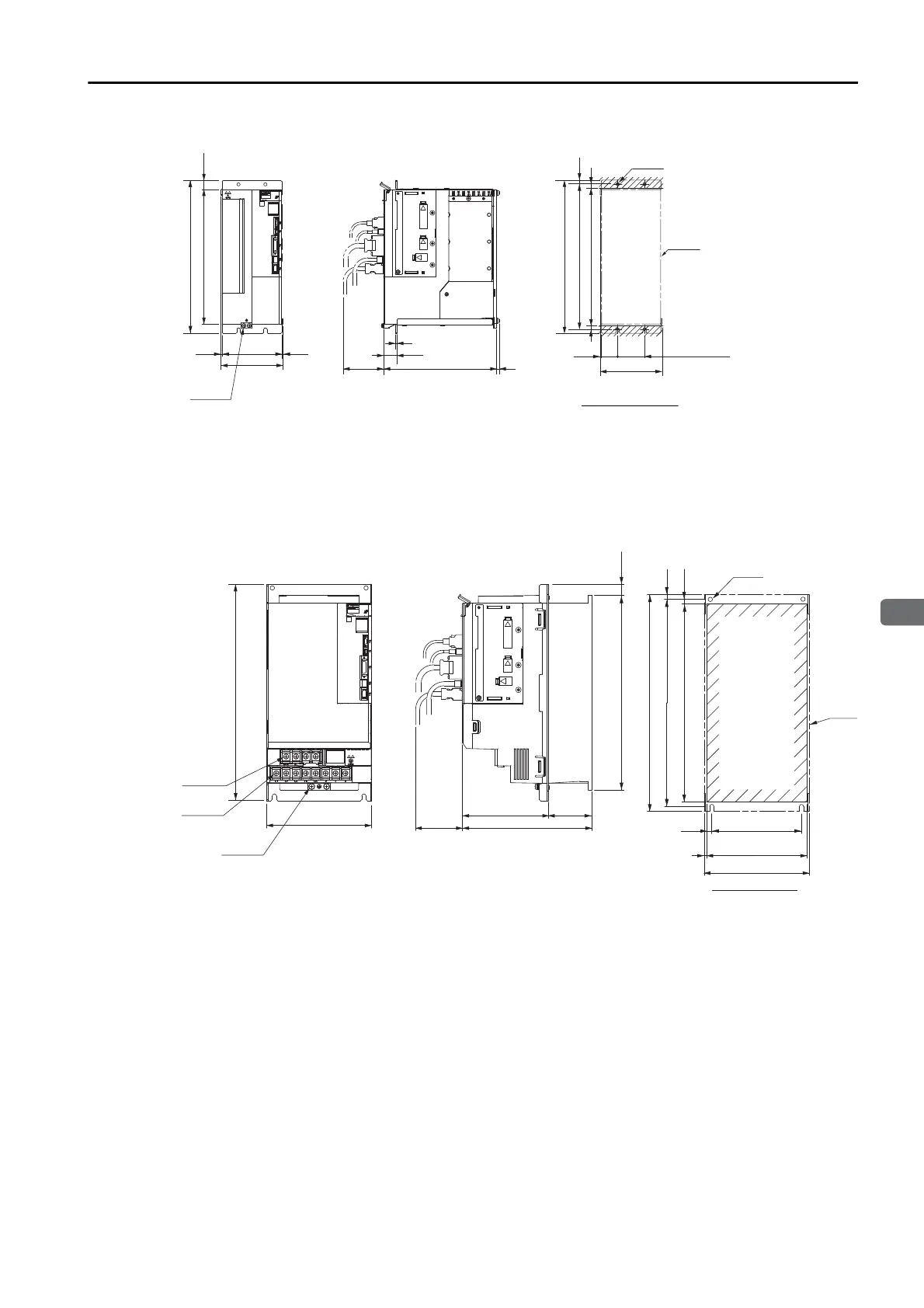

• Three-phase, 200 VAC: SGD7S-330A
Duct-ventilated SERVOPACKs
Hardware Option Code: 001
• Three-phase, 200 VAC: SGD7S-470A and -550A
Exterior
270
±
0.5 (mounting pitch)
50
±
0.5
(mounting pitch)
Unit: mm
Approx. mass: 4.9 kg
Ground
terminals
2 × M4
Mounting Hole Diagram
4 × M5
285
7
7
7.5
30.5
256 min.
116
(75)
210
(2)
(6)
24.5
116
111
(2.5) (2.5)
250
17.5
285
Approx. mass: 8.4 kg
Unit: mm
Through hole
162 min.
(mounting pitch)
4 × M6
145
±
0.5
170
8.5
4
320 min.
335 ±0.5 (mounting pitch)
350
7.5 7.5
315
17.5
(71)
(75)
210
139
Terminals
4 × M5
Terminals
8 × M5
Ground
terminals
2 × M5
170
350
Exterior
Mounting Hole Diagram
