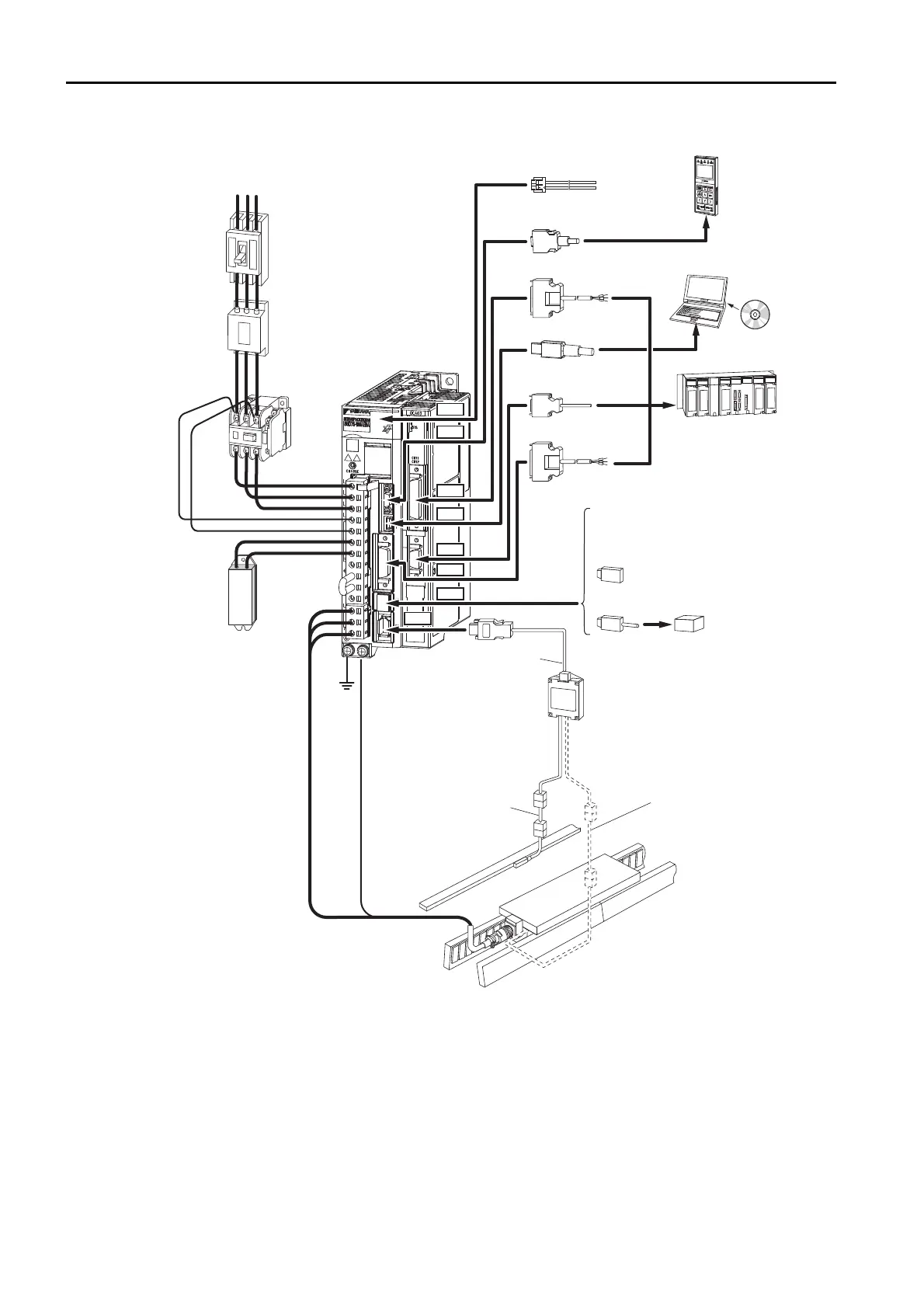

2.4 Examples of Standard Connections between SERVOPACKs and Peripheral Devices
2-28
•
Linear Servomotors
*1. This example is for a SERVOPACK with a three-phase, 200-VAC power supply input. The pin layout of the main
circuit connector depends on the voltage.
*2. External Regenerative Resistors are not provided by Yaskawa.
Linear Servomotor
Ground
cable
Linear encoder
Sensor Cable
Linear Encoder Cables
Serial Converter Unit
Serial Converter Unit Cable
External
Regenerative
Resistor
*2
Noise Filter
Molded-case
circuit breaker
Magnetic Contactor
I/O Signal Cable
SERVOPACK
Power supply
Three-phase, 200 VAC
*1
Computer
Computer Cable
External
Regenerative
Resistor Cable
Control
Power
Supply Cable
Digital
Operator
Digital Operator cable
Analog Monitor Cable
SERVOPACK
main circuit wires
Sequence I/O
signal cable
Host controller
Serial command
communications cable
When a Safety Function Is Not Used:
When a Safety Function Is Used:
Safety function device
Support
Software
Leave the enclosed JZSP-CVH05-E
Safety Jumper Connector attached.
Safety Function Device Cable
CN5
CN3
CN11
CN7
CN12
CN1
CN8
CN2
RS T
To Next Page
