3.2 Basic Module Connections
3.2.3 MECHATROLINK Connectors
3-15
Mounting and Wiring

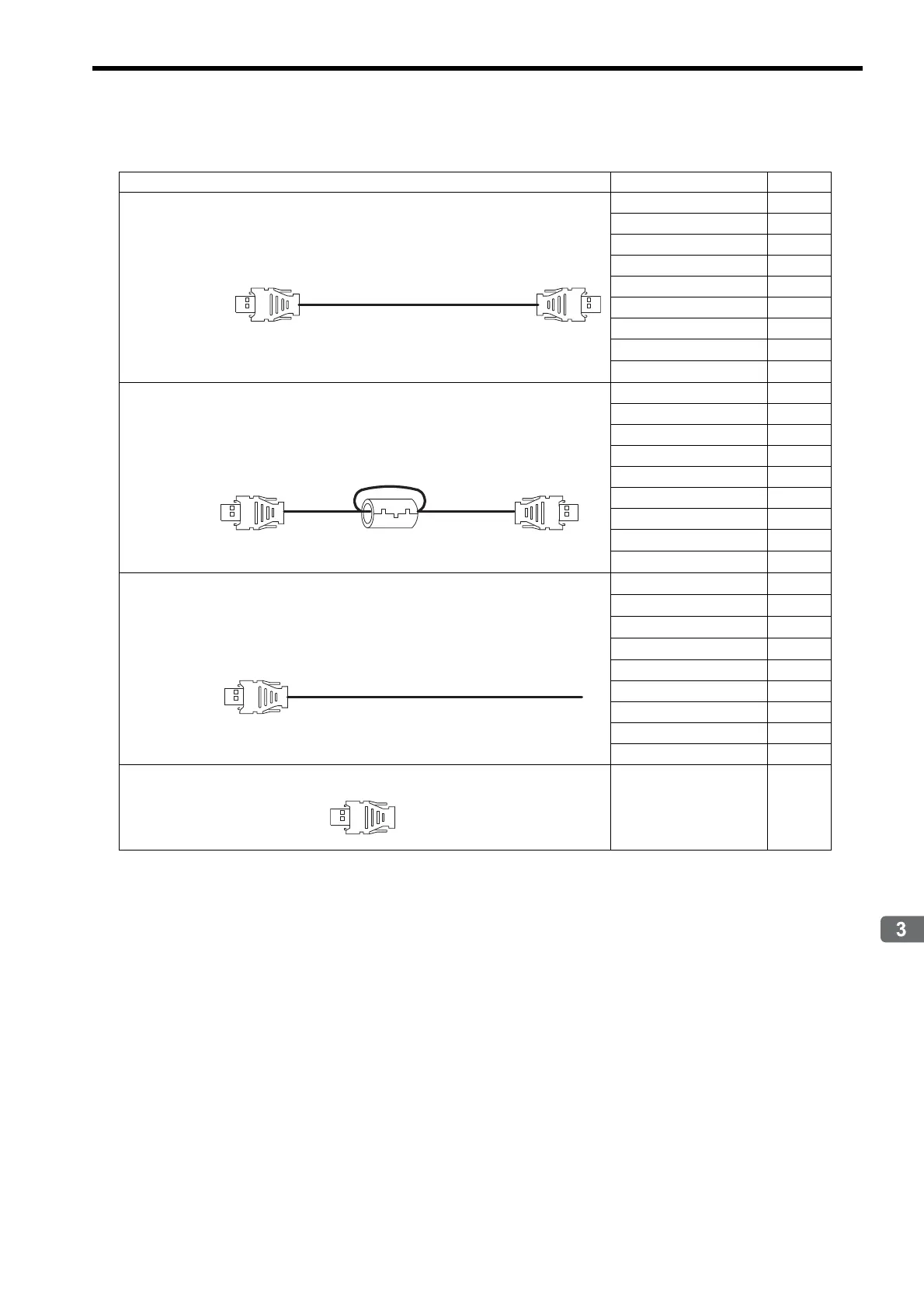

( 2 ) Cables
Name and Specification Model Number Length
MECHATROLINK Cable
MECHATROLINK Connector – MECHATROLINK Connector
JEPMC-W6002-A5
0.5 m
JEPMC-W6002-01
1 m
JEPMC-W6002-03
3 m
JEPMC-W6002-05
5 m
JEPMC-W6002-10
10 m
JEPMC-W6002-20
20 m
JEPMC-W6002-30
30 m
JEPMC-W6002-40
40 m
JEPMC-W6002-50
50 m
MECHATROLINK Cable
MECHATROLINK Connector – MECHATROLINK Connector
(with Ferrite Core)
JEPMC-W6003-A5
0.5 m
JEPMC-W6003-01
1 m
JEPMC-W6003-03
3 m
JEPMC-W6003-05
5 m
JEPMC-W6003-10
10 m
JEPMC-W6003-20
20 m
JEPMC-W6003-30
30 m
JEPMC-W6003-40
40 m
JEPMC-W6003-50
50 m
MECHATROLINK Cable
MECHATROLINK Connector – Loose Wire
(only for Σ-I)
JEPMC-W6011-A5
0.5m
JEPMC-W6011-01
1 m
JEPMC-W6011-03
3 m
JEPMC-W6011-05
5 m
JEPMC-W6011-10
10 m
JEPMC-W6011-20
20 m
JEPMC-W6011-30
30 m
JEPMC-W6011-40
40 m
JEPMC-W6011-50
50 m
Terminator
JEPMC-W6022
−
