YASKAWA MP2300S User Manual

2.2 Basic Module
2.2.4 218IFA Module (Ethernet)
2-27
Specifications and Functions

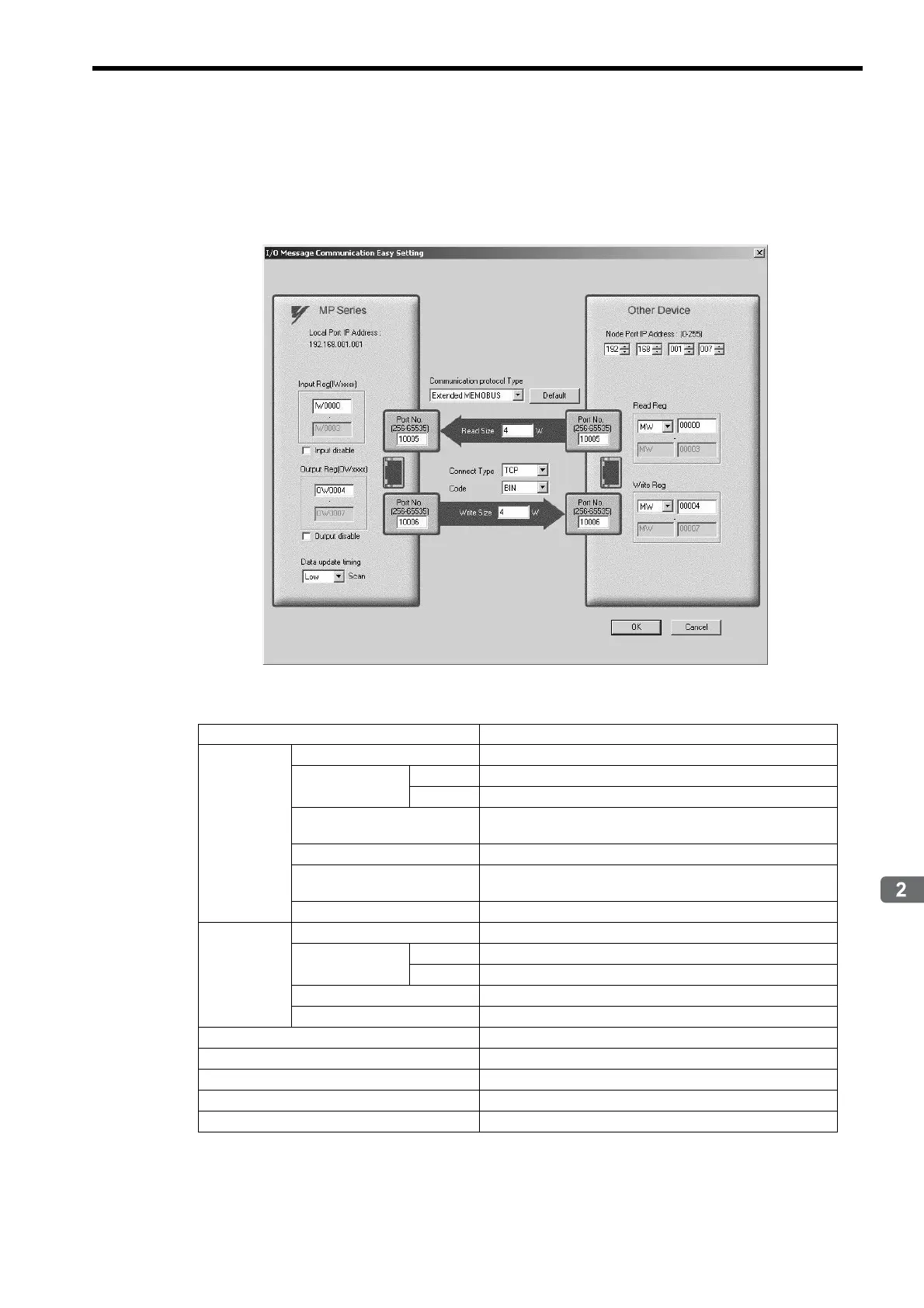

 Easy Setting Window for I/O Message Communication
Graphically adjusts the setting for the read/write connection parameters.
Generally, the contents are similar to I/O message communication items in connection parameter setting.
When the connection parameters are not yet set and this dialog box is opened, the default values for read/write connec-
tion will be automatically stored.
The following table provides the default values for each connection stored when the connection parameters are not yet
set and this screen is opened.
Item Default
MP Series
Local IP Address
Values set in transmission parameter setting items are shown.
Local Port No.
Read
10005
Write
10006
Input Register (IW xxxx)
Start I/O register number specified by the 218IFA cell in the
detailed field of the module configuration definition screen.
Input Disable
Not checked (enable)
Output Register (OW xxxx)
Start I/O register number specified by the 218IFA cell in the
detailed field of the module configuration definition screen + 4.
Data Update Timing
Low
Other Device
Node IP Address
192.168.1.7
Node Port
Number
Read
10005
Write
10006
Read Register
MW00000
Write Register
MW00004
Communication Protocol Type
Extended MEMOBUS
Read Size
4
Write Size
4
Connect Type
TCP
Code
BIN
