Appendix B SERVOPACK Parameter Data Flow
B.1 Operations and Parameter Data Flow
A-24
( 5 ) Copying Current Values to Set Values (Input Data) in the SERVOPACK Tab
The data flow for SERVOPACK parameters is as follows when selecting Edit - Copy Current Value from the SERVO-
PACK Tab in the SVB Definition Window on the MPE720:

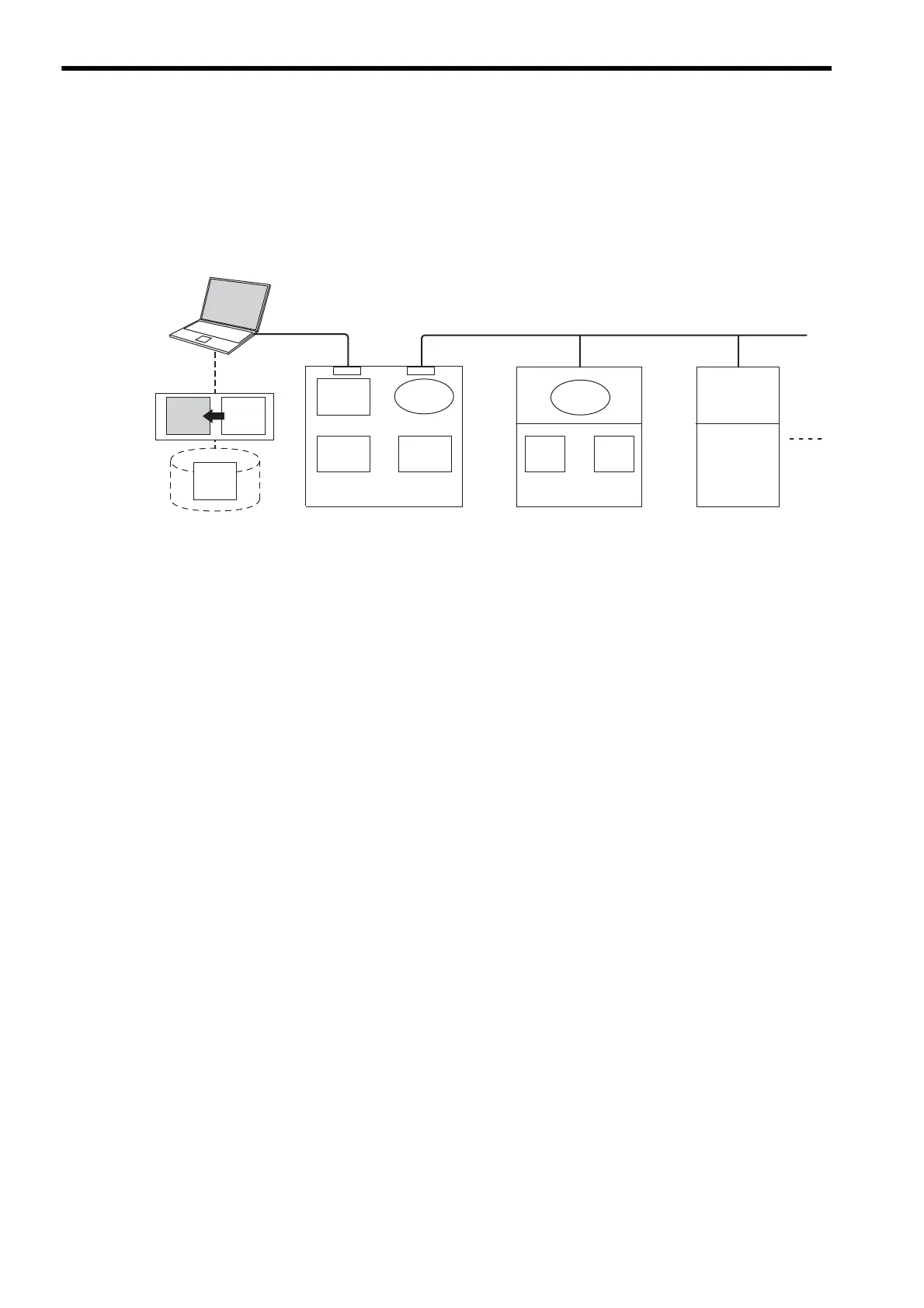

1. The MPE720 copies the values currently displayed in Current Value to Input Data on the SERVO-
PACK Tab and displays.
MECHATROLINK
RAM
EEP
-ROM
SRAM
SDRAM
MP2300S
SERVOPACKSERVOPACK
Control
Software
System
Software
Parameters
Servo Parameters
(All Axes)
Flash
Memory
Input
Data
MPE720 㧔online㧕
HDD in personal computer
Display
Current
Value
Input
Data
