3.1 Mounting MP2300S
3.1.3 Space Required for Mounting MP2300S
3-8
3.1.3 Space Required for Mounting MP2300S

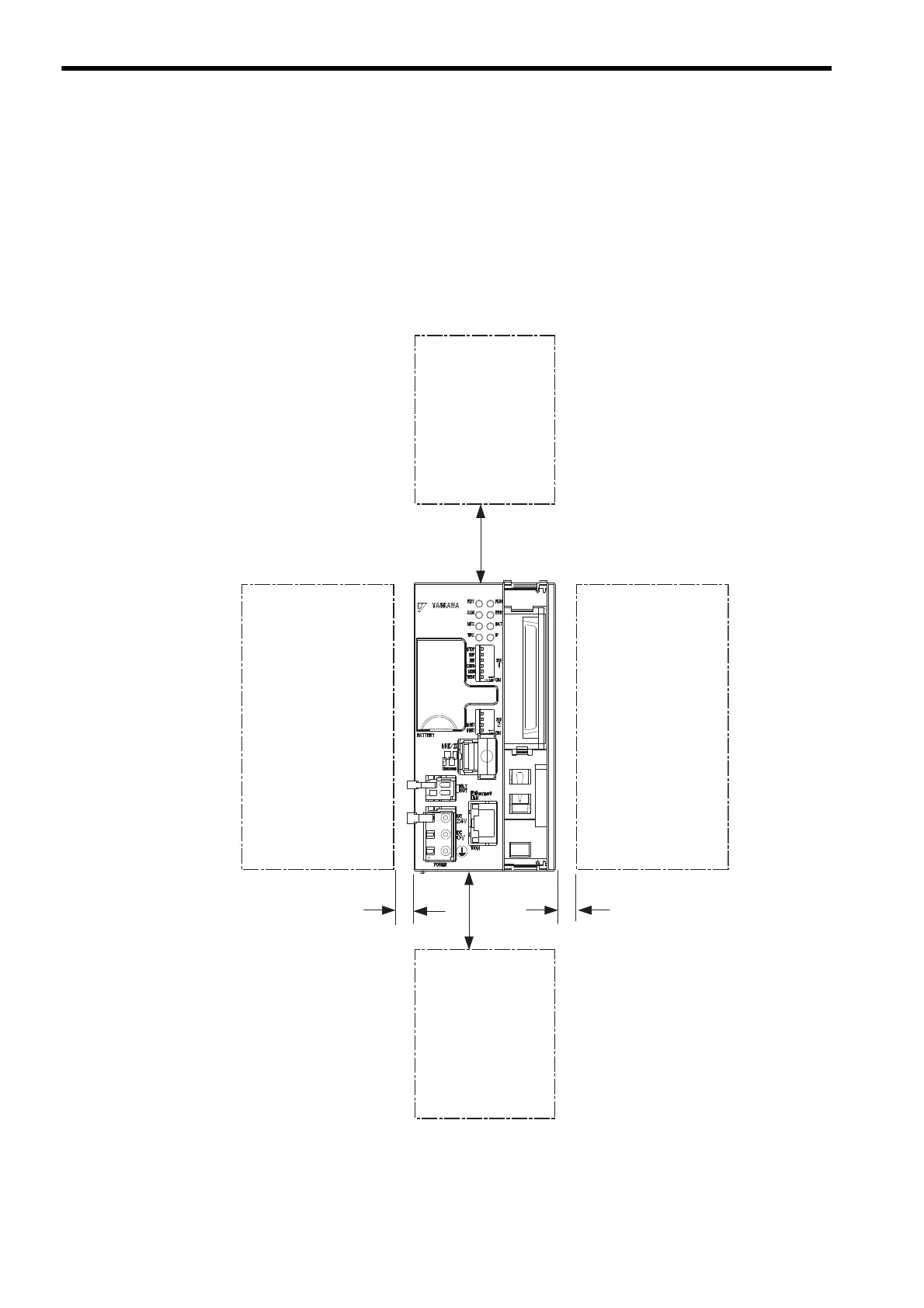

Install MP2300S so that enough space is left around it as shown in the following figure:
Mount condition
Vertical direction: 40 mm or more
Horizontal direction: 10 mm or more
Note: However, ambient temperature should be 55°C or less.
10 mm or more
10 mm or more
40 mm or more
40 mm or more
/25
Electronic product,
Wall,
Cable,
Duct, etc.
Electronic product,
Wall,
Cable,
Duct, etc.
Electronic product,
Wall,
Cable,
Duct, etc.
Electronic product,
Wall,
Cable,
Duct, etc.
