2.4 External Appearance
2.4.1 Basic Module
2-64
2.4 External Appearance

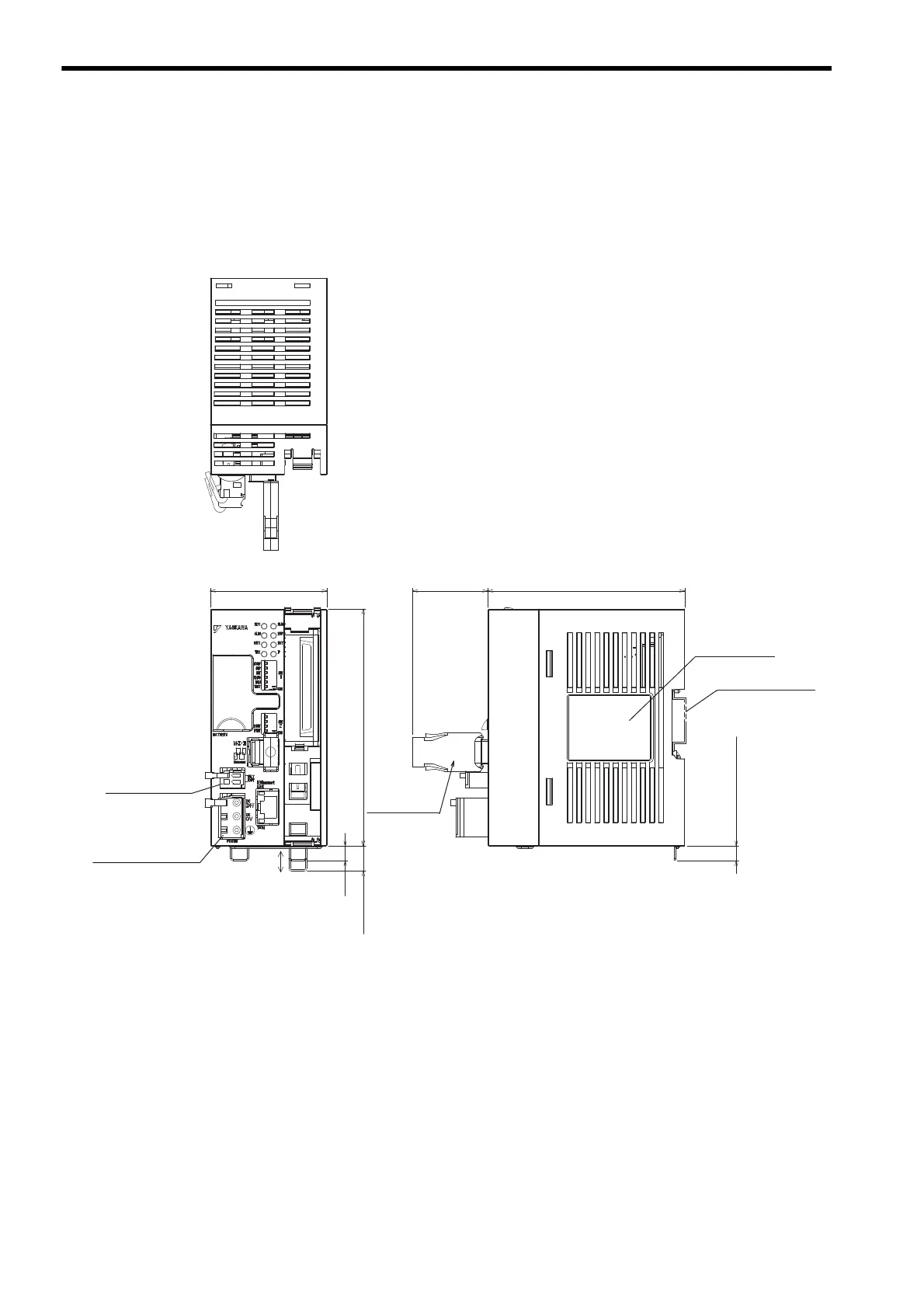

The external appearance of the basic module is as follows:
2.4.1 Basic Module
* The following cable-side connectors are attached to the power and relay connectors.
 Power connector: 721-203 / 026-000
 Relay connector: 734-YE102
Note: Attachment
 Handle for power connector (model: 231-131)
 Handle for relay connector (model: 734-230)
* These handles are used when connecting a cable to the cable-side connector.
 Terminating resistor for MECHATROLINK (JEPMC-W6022-E)
/25
(*)
(*)
Relay connector (2P)
Power connector (3P)
Terminating resistor
for MECHATROLINK
(attachment)
Model nameplate
DIN rail (35mm width)
(10: when DIN
rail is attached)
Units: mm
64
(42)
108
734-YE102
721-203/026-000
130
(9)
(14: when released)
