Appendix G MSG-SND/MSG-RCV Functions (Ethernet)
G.3 Communication Buffer Channel
A-118
G.3 Communication Buffer Channel
A communication buffer channel is used for giving and receiving data between the MSG-SND/ MSG-RCV function
and communication device. This data buffer is composed of single or multiple channels, and each channel is distin-
guished by a communication buffer channel number.
The communication buffer channel is associated with a connection by setting the input item Ch-No (communication
buffer channel number) of the MSG-SND/ MSG-RCV function and PARAM02 (connection number) in Param (param-
eter list).
A connection is configuration information for communication between local and remote stations, and is set in the
218IF or 218IFA Parameter Setting Window of the MPE720 module configuration definition.

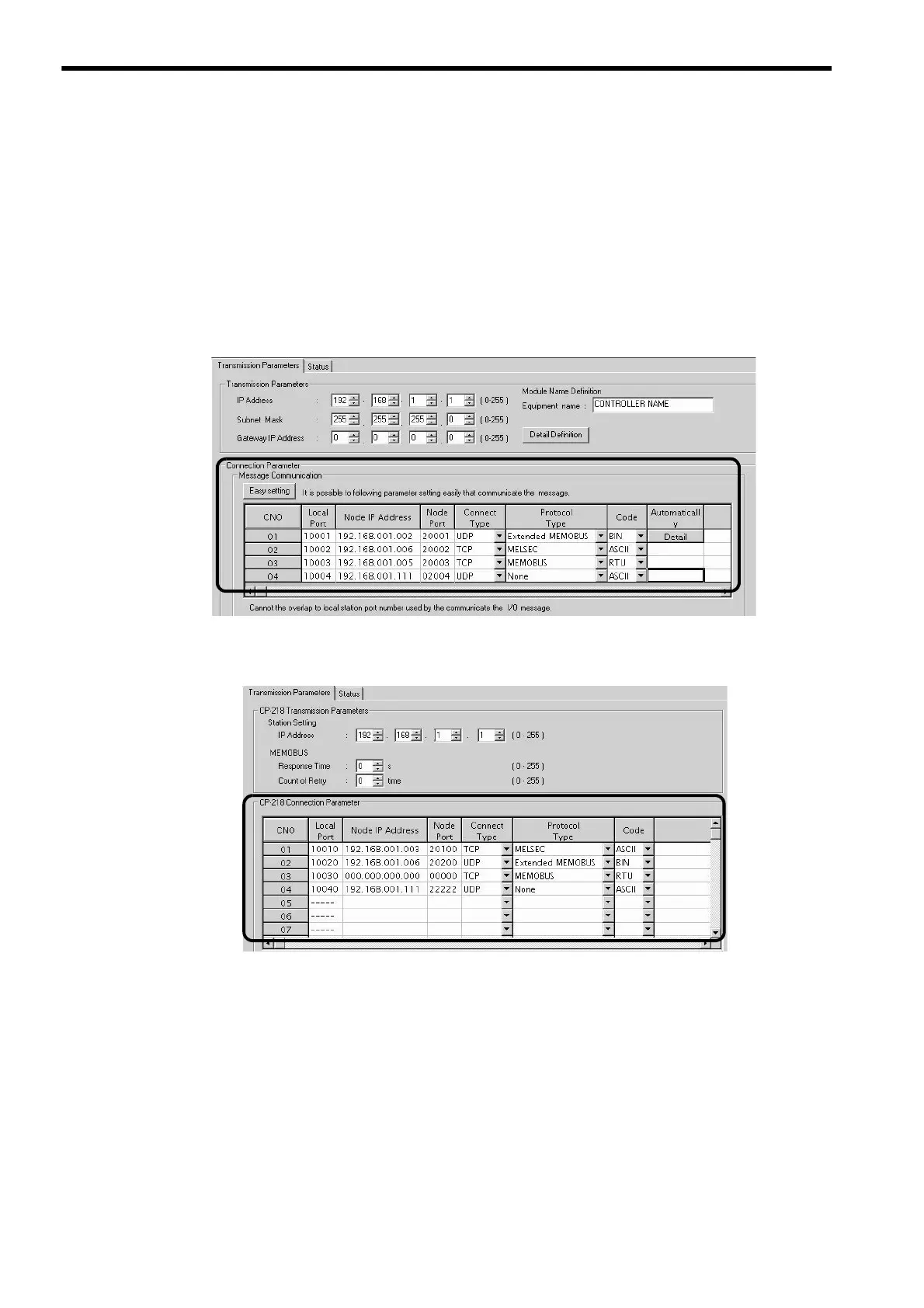

Fig. G.13 218IFA Parameter Setting Window for the MPE720 Module Configuration Definition
Fig. G.14 218IF Parameter Setting Window for the MPE720 Module Configuration Definition
A schematic diagram of the communication buffer channel is shown in the next page.
