YASKAWA MP2300S User Manual

2.2 Basic Module
2.2.4 218IFA Module (Ethernet)
2-15
Specifications and Functions
( 3 ) Module Configuration Definition
(a) Module Configuration Definition Screen Details

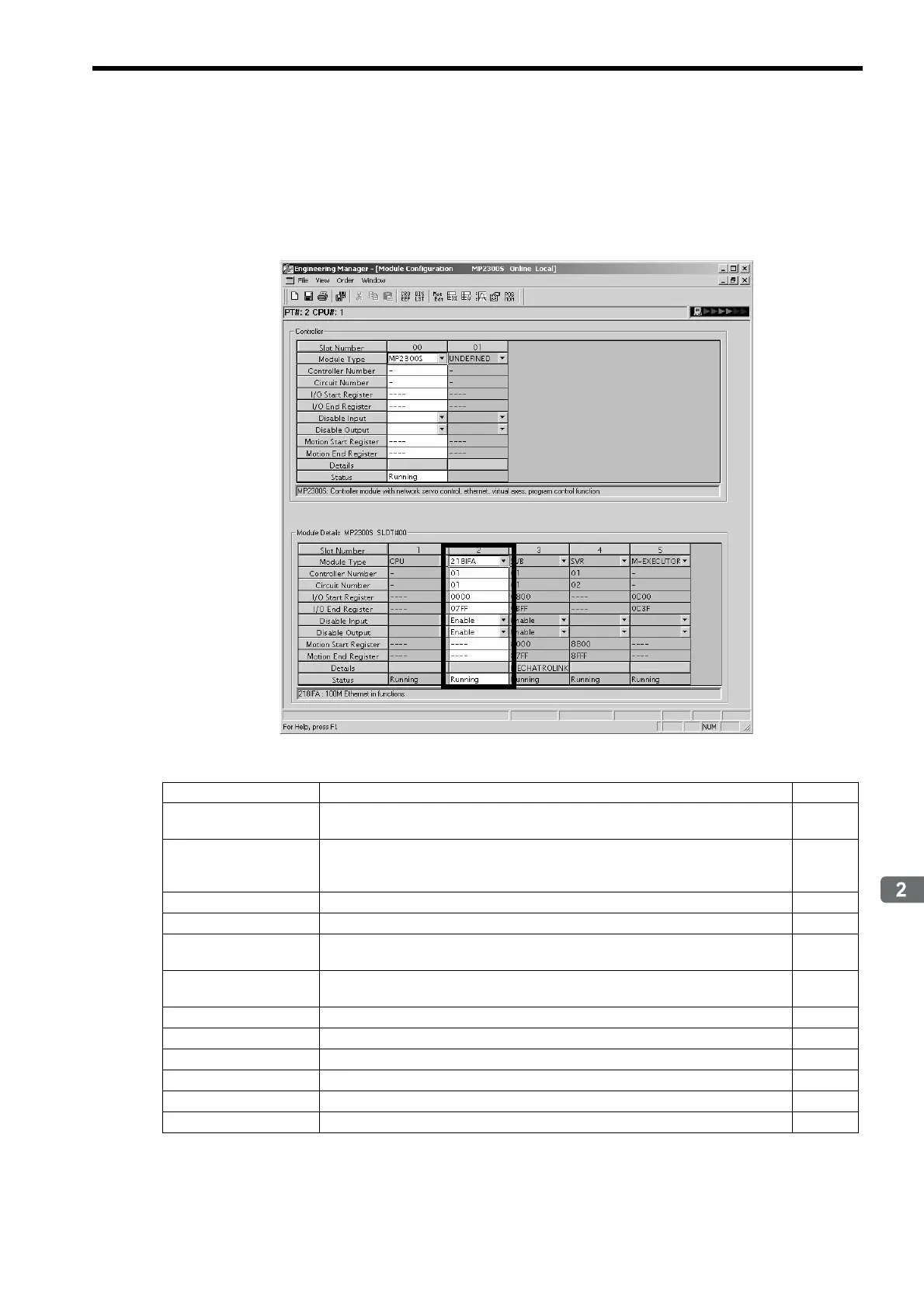

Click MP2300S in the Controller area to display the details of the Basic Modules’ functions in the Module Details
area. The cell No.2 provides a detailed definition of the 218IFA module.
Items displayed in the Module Details area show the following meanings:
√: Available, –: Not available
Items Descriptions Change
Slot Number
Sub-slot number.
Double-click it to open the detailed definition window of the 218 IF module.
–
Module Type
A module name is shown.
Changing the name to UNDEFINED enables you to disable functions of the 218 IF
module.
√
Controller Number
Not used. Fixed at “–”.
–
Circuit Number
Module's line number (valid range: 01-08)
√
I/O Start Register
Start register of the I/O register used in the I/O message communication of the 218IFA
module (valid range: 0000-7FFFh, size: 800h words)
√
I/O End Register
End register of the I/O register used in the I/O message communication of the 218IFA
module (valid range: 0000-7FFFh, size: 800h words)
√
Disable Input
Input Enable/Disable.
√
Disable Output
Output Enable/Disable.
√
Motion Start Register
Not used. Fixed at “– – – –”.
–
Motion End Register
Not used. Fixed at “– – – –”.
–
Details
Not used.
–
Status
The status of the 218IFA module in online mode.
–
