YASKAWA MP2300S User Manual

Appendix B SERVOPACK Parameter Data Flow
B.1 Operations and Parameter Data Flow
A-21
Appendices
( 2 ) Normal Operation
1. Control software of the SERVOPACK operates based on the parameter data held in SERVOPACK’s
RAM.
2. Some of MP2300S setting parameters and commands temporarily change SERVOPACK parameters.
Refer to Chapter 4 in Machine Controller MP2000-series SVB/SVB-01 Motion Module User’s Manual
(manual number: SIEP C880700 33) for details. RAM in the SERVOPACK are written.
 Parameters held in the SERVOPACK’s RAM are displayed on a Digital Operator connected to the SERVO-
PACK. They are also written to EEPROM when the DATA/ENTER Key is pressed.
( 3 ) When the SERVOPACK Tab Page Is Open

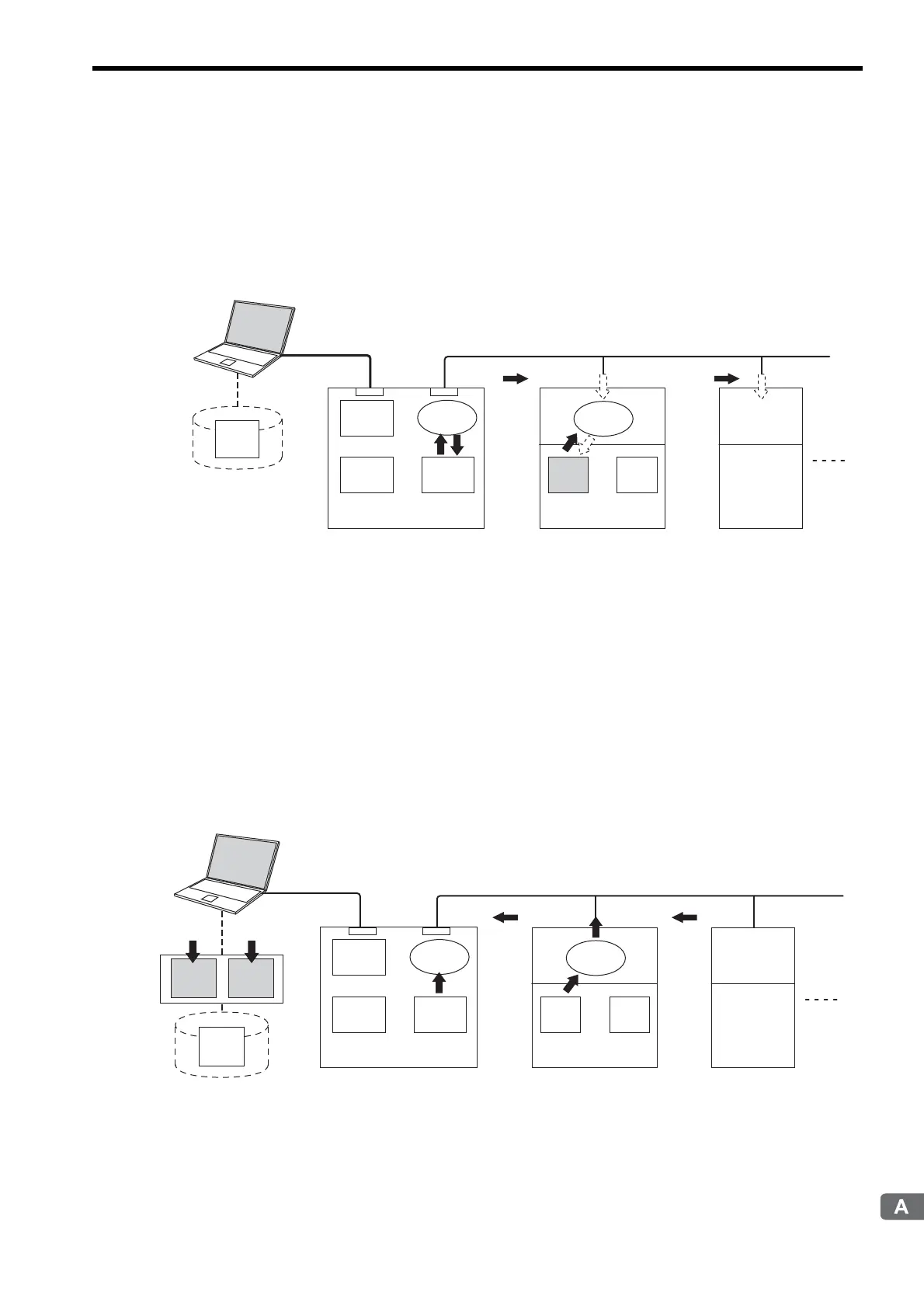

The data flow for SERVOPACK parameters is as follows when the SERVOPACK Tab Page is open in the SVB Defini-
tions Window on the MPE720 (refer to 2.2.5 ( 5 ) SVB Definition for details on how to open the SERVOPACK Tab
Page.)
1. The MPE720 writes and displays the parameters that are held in the SERVOPACK’s RAM for the rele-
vant axis to the Current Value in the SERVOPACK Tab Page.
It also reads and displays the values that are held in the MP2300S’s SDRAM values to the Input Data
in the SERVOPACK Tab Page.
MECHATROLINK
RAM
EEP
-ROM
SRAM
SDRAM
Input
Data
MPE720
HDD in personal computer
Flash
Memory
SERVOPACK
Parameters
(All Axes)
Parameters
System
Software
Control
Software
SERVOPACK SERVOPACK
Send Send
When the MP2300S has
temporarily changed
MP2300S
SDRAM
SRAM
EEP
-ROM
RAM
MECHATROLINK
Input
Data
MPE720 (online)
HDD in personal computer
Display
Current
Value
Input
Data
MP2300S
Send Send
SERVOPACKSERVOPACK
Control
Software
System
Software
Parameters
SERVOPACK
Parameters
(All Axes)
Flash
Memory
