YASKAWA MP2300S User Manual

2.2 Basic Module
2.2.4 218IFA Module (Ethernet)
2-29
Specifications and Functions

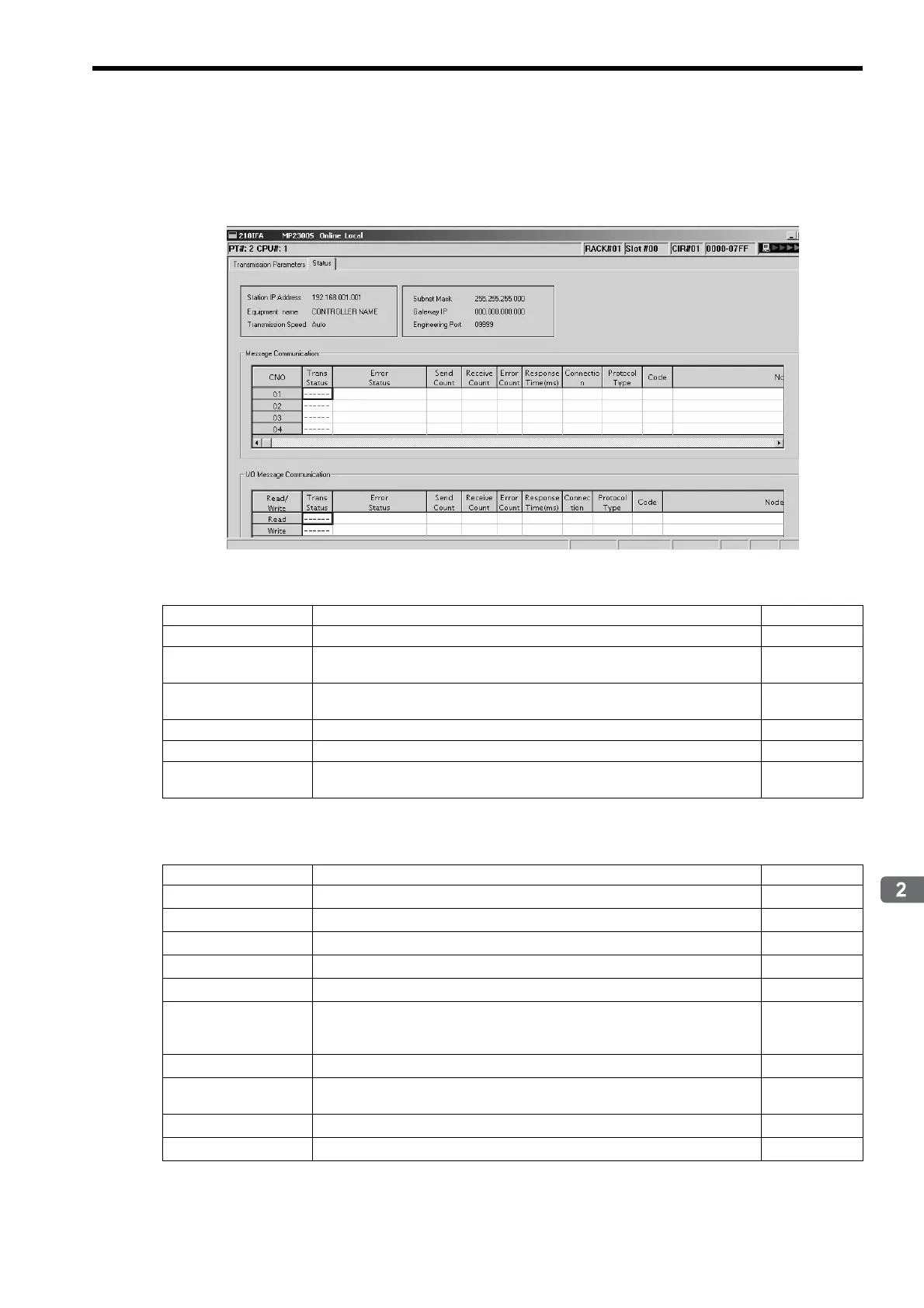

2. Status tab
In the Status Tab, each setting for the transmission definition and transmission status of the 218IFA module is
shown.
The displayed contents are as follows:
 Transmission Parameter Item
 Message Communication and I/O Message Communication Items
Item Displayed Content Default
Station IP Address
Displays local IP address specified in the Transmission Parameter Tab.
000.000.000.000
Equipment Name
Displays equipment name specified in the Transmission Parameter Tab.
When the equipment name is not yet set, nothing is shown.
NULL
Transmission Speed
Displays transmission rate retrieved from the status information. (Fixed at Auto-
matic)
Automatic
Subnet Mask
Displays a subnet mask set in the Transmission Parameter Tab.
000.000.000.000
Gateway IP Address
Displays a gateway IP address set in the Transmission Parameter Tab.
000.000.000.000
Engineering Port
Displays a port number set in the detailed definition of the Transmission Parame-
ter Tab.
9999
Item Displayed Content Default
Trans Status
Displays the transmission status for each connection.
–
Error Status
If an error is indicated in the transmission status, the error details are shown.
–
Send Count
Displays the number of packets transmitted to the remote station.
–
Receive Count
Displays the number of packets received from the remote station.
–
Error Count
Displays the number of errors that occurred in each connection.
–
Response Time (ms)
Displays the time taken to receive a response after issuing a command in the MSG-
SND function of the message communication and the I/O message communica-
tion.
–
Connection
Displays the connection type set in the Transmission Parameter Tab.
–
Protocol Type
Displays the protocol of the connection parameter set in the Transmission Param-
eter Tab.
–
Code
Displays the code type of the data set in the Transmission Parameter Tab.
–
Node Station Name
Displays the remote station name set in the Transmission Parameter Tab.
–
