( 7 ) Saving Data to Flash Memory

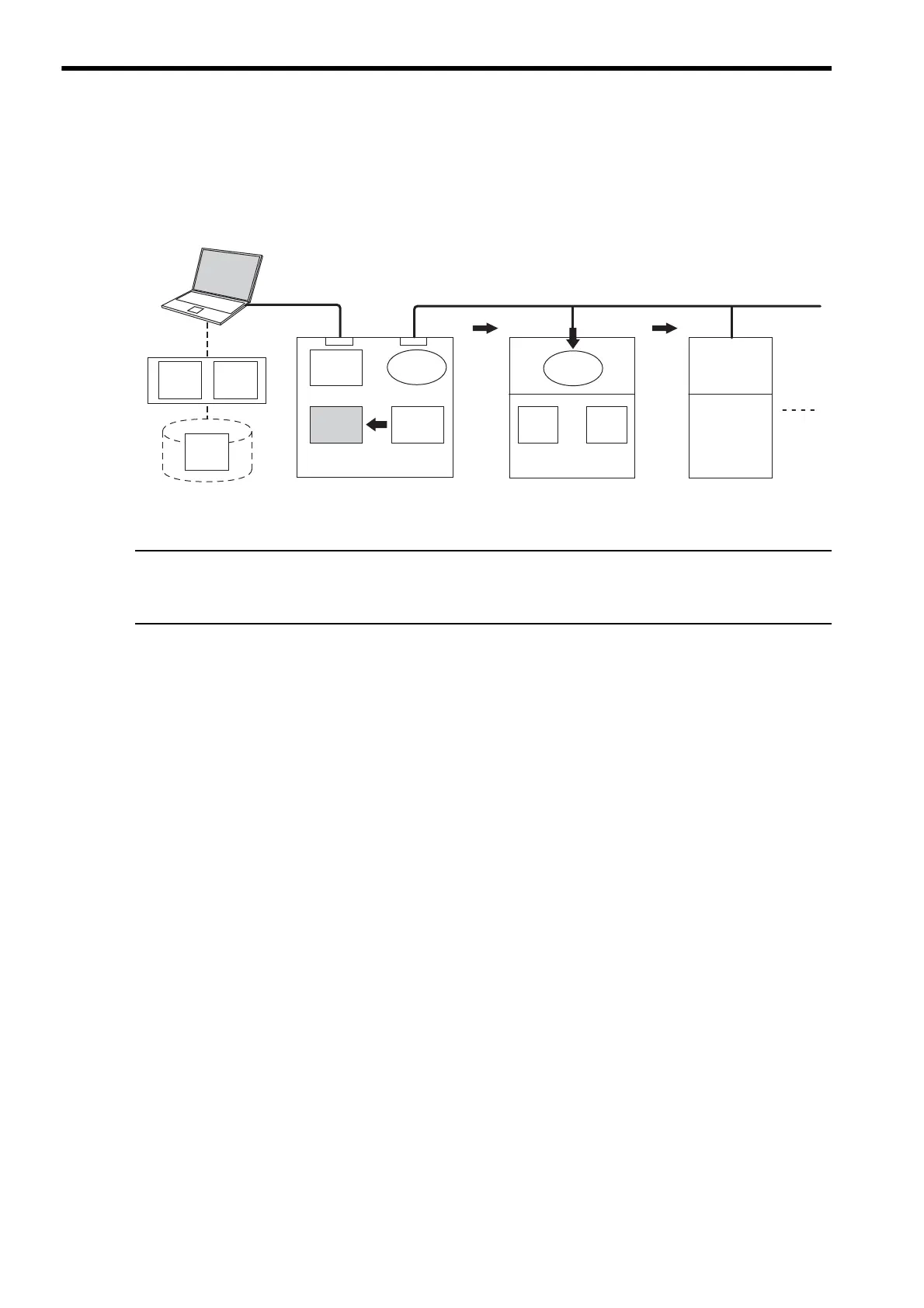

The data flow for SERVOPACK parameters is as follows when saving the parameters to flash memory on the MPE720.
1. The MP2300S writes the parameters data (Input Data) held in SDRAM to flash memory.
 Save to flash memory also after having changed set data of SERVOPACK parameter.
 Precautions When Saving SERVOPACK Parameters
Before executing a saving operation in the SERVOPACK Tab Page, except during SERVOPACK replacement, always select
Edit - Current Value - Setting Value to copy the values in Current Value to Input Data.
