YASKAWA MP2300S User Manual

2.2 Basic Module
2.2.5 Built-in SVB Module
2-40
( 4 ) MECHATROLINK Transmission Definition
[ a ] How to Open the MECHATROLINK Transmission Definition Window

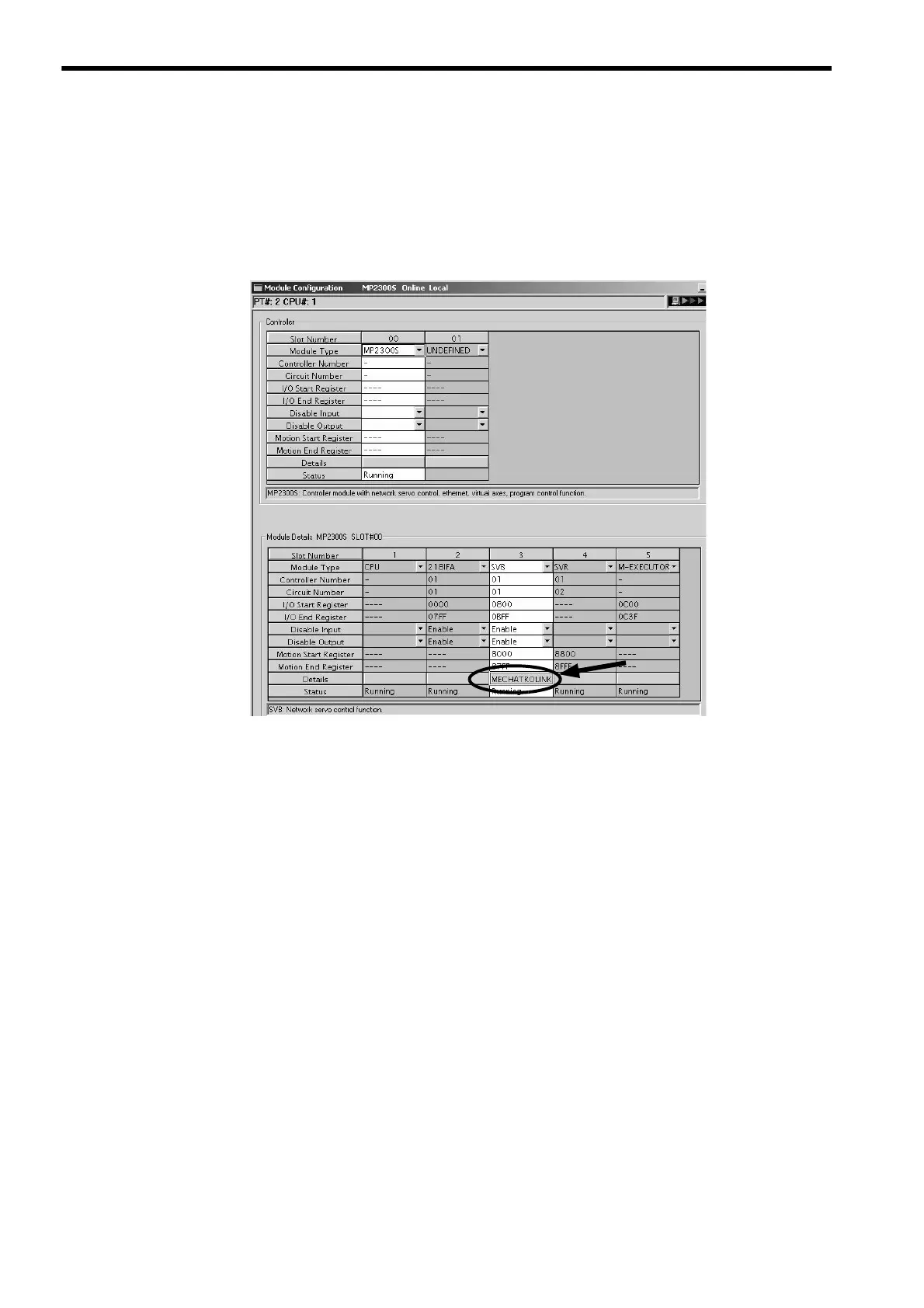

In the Module Configuration Window, select the SVB Module in the Controller field and double-click the MECHA-
TROLINK cell in the Module Details field. The MECHATROLINK Transmission Definition Window will open.
 If several SVB Modules are mounted, select the SVB Module to be checked or set in the Controller field.
 To check or set the built-in SVB Module, select slot number 00 in the Controller field.
