YASKAWA MP2300S - Message Transmit Function (MSG-SND)

6.2 Communication with Other MP Series
6.2.1 When the MP2300S Acts as Slave (automatic receive function is used)
6-11
Built-in Ethernet Communications
4. Create a ladder program with a message transmit function (MSG-SND).
A ladder program for transmitting messages to/from the remote equipment (MP2300) side is shown as follows:
 Message transmit function (MSG-SND)
Required for transmitting messages. Message transmission is carried out by describing and executing this mes-
sage transmit function in a ladder program.

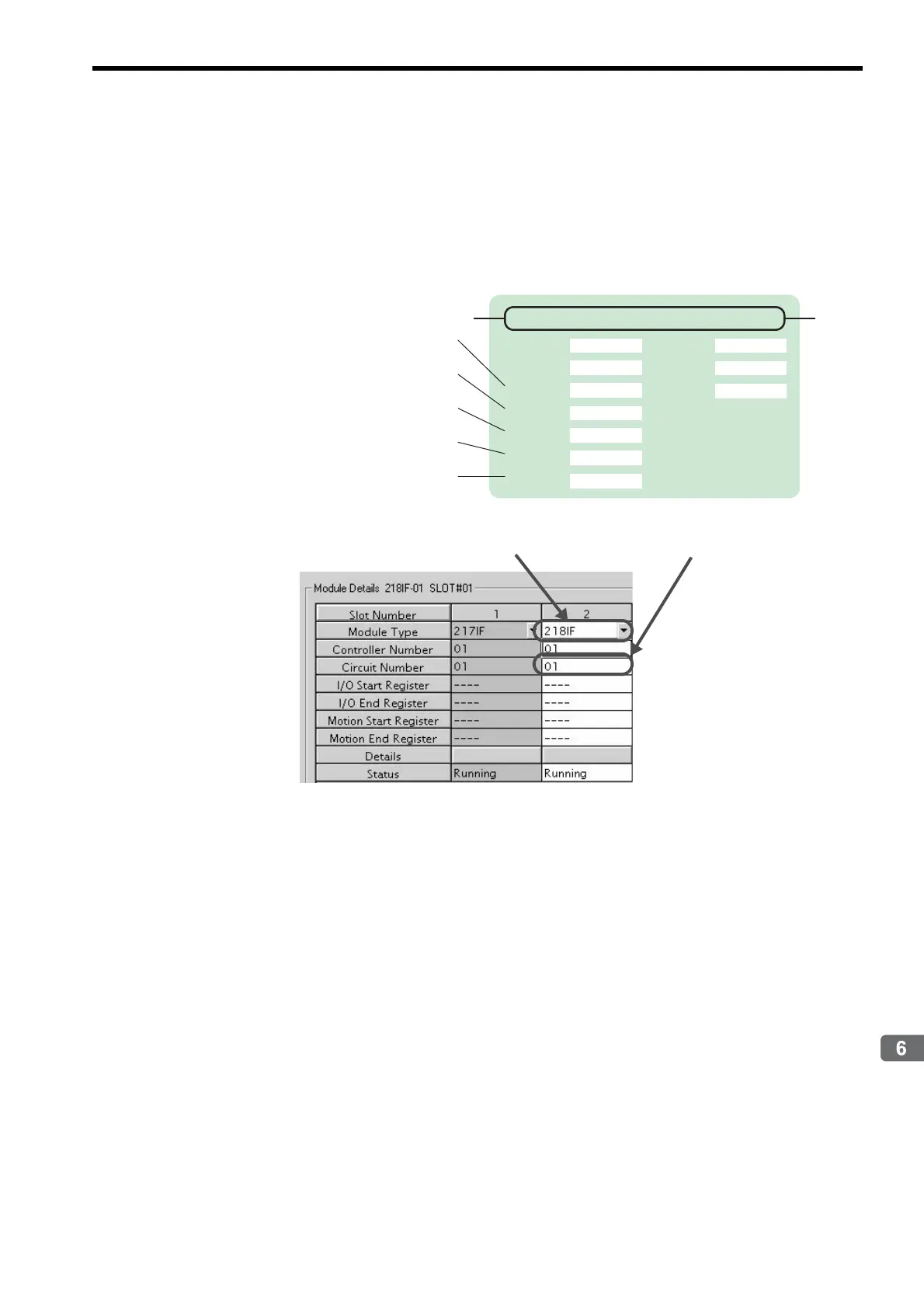

Fig. 6.2 MPE720 Module Configuration Definition Window
Execute
Abort
Dev-Typ
Pro-Typ
Cir-No
Ch-No
Param
MSG
SND
Busy
Complete
Error
&$
&$



&#

&$
&$
&$
Communication device = Ethernet(218IF)
Protocol type
Line number = 1
Communication buffer channel number
Parameter list start address
=DA00000
Communication device = 218IF
Line number = 1
