YASKAWA MP2300S - SVB Definition; Opening the SVB Definition Window

2.2 Basic Module
2.2.5 Built-in SVB Module
2-46
( 5 ) SVB Definition
The SVB Definition file defines the motion parameters (motion fixed parameters, motion setting parameters, and
motion monitoring parameters) to control motion axes such as the SERVOPACK, inverter, and stepper.
 Refer to Appendix E Motion Parameter Details for details on motion parameters.
[ a ] Opening the SVB Definition Window
Open the SVB Definition Window by the following procedure.

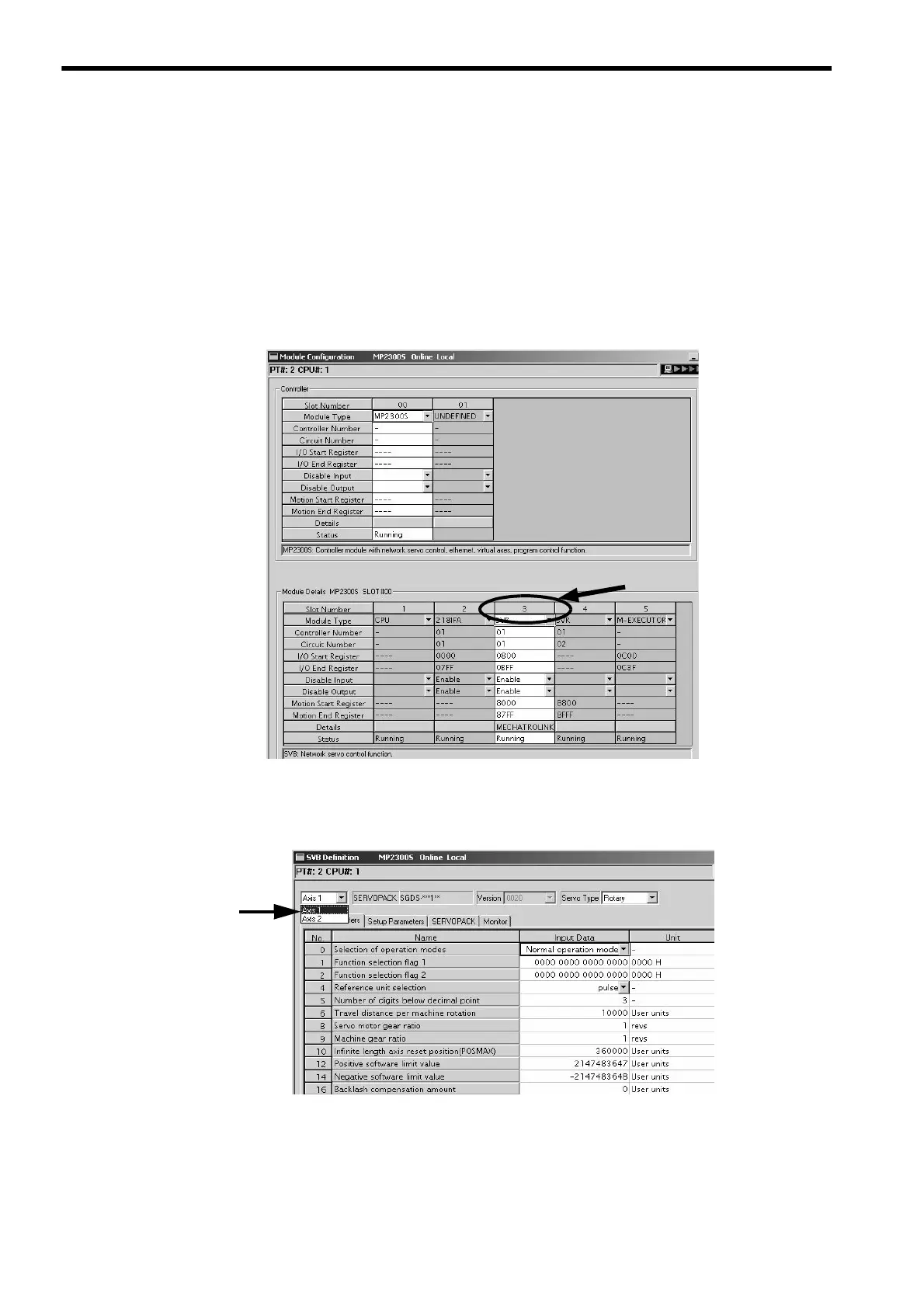

1. Select MP2300S in the Controller area, then double-click the slot number cell of the SVB Module in the
Module Details field in the Module Configuration Window.
The Create New Confirmation Dialog Box will open. Click OK to display the Fixed Parameters Tab of the SVB
Definition Window.
2. Select the axis to be set or monitored from the Axis pull-down list.
 Axis corresponds to ST# (station number) in the Link Assignment Tab of the MECHATROLINK Transmission
Definition Window.
