3.1 Mounting MP2300S
3.1.1 Method
3-2
3.1 Mounting MP2300S
3.1.1 Method
There are two methods for mounting MP2300S.
• Using DIN rail (standard)
• Using screws
( 1 ) DIN Rail Mounting
[ a ] DIN Rails and Spacer

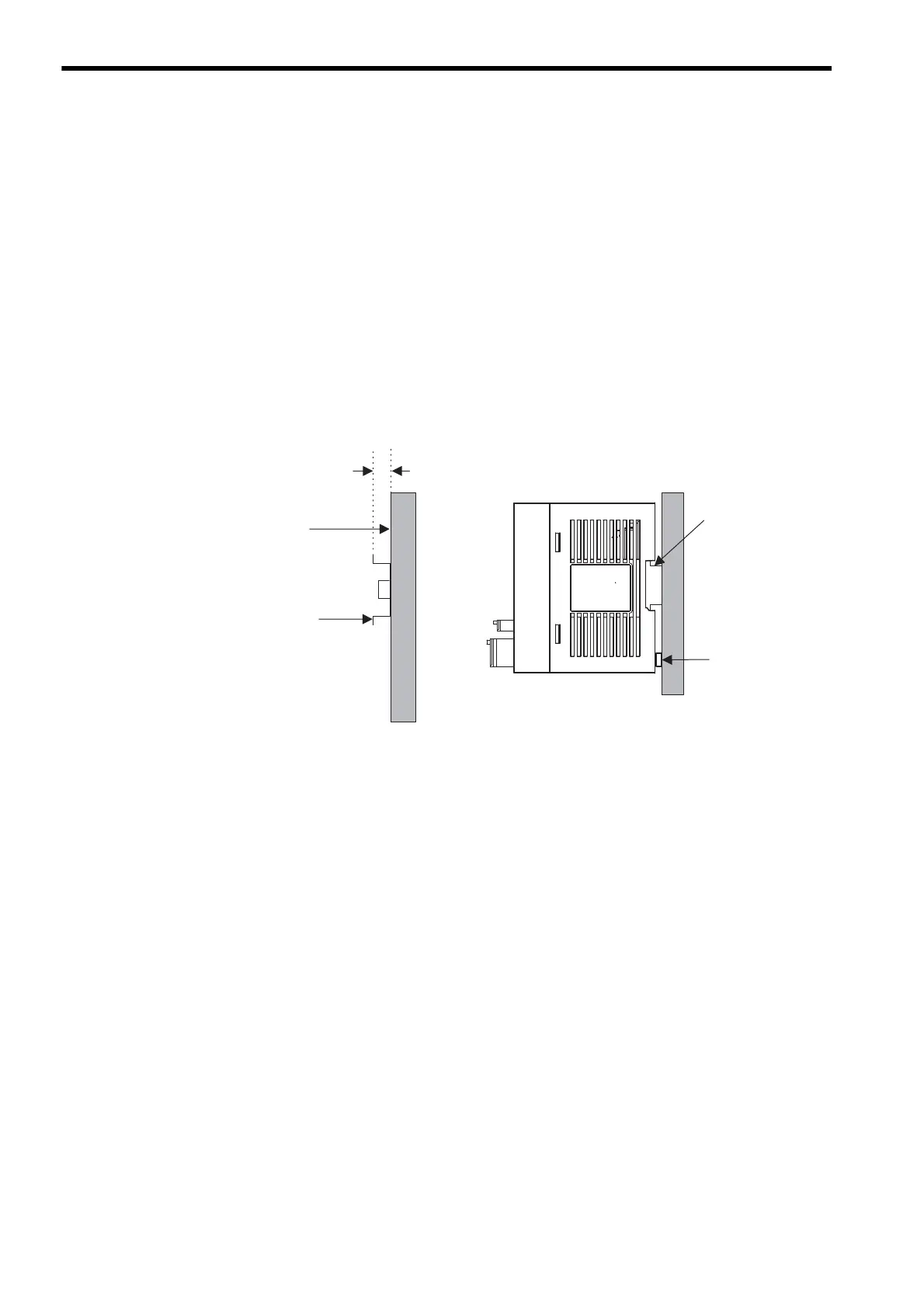

Several types of DIN rails are available: with 7-mm to 15-mm gap from the mounting base as shown in the following
diagram. If mounting a MP2300S using DIN rail with 10 mm gap, install a spacer on the rear of the MP2300S near the
bottom to protect the MP2300S from vibration and shock.
Mounting base
DIN rail
Gap from mounting base: 7.0 mm to 15.0 mm
For a 10-mm gap
DIN rail
Space
r
