6.2 Communication with Other MP Series
6.2.1 When the MP2300S Acts as Slave (automatic receive function is used)
6-5
Built-in Ethernet Communications
( 1 ) How to Set up the MP2300S Side
If the setting of transmission parameters (IP address, subnet mask) is already completed, start from step 3.

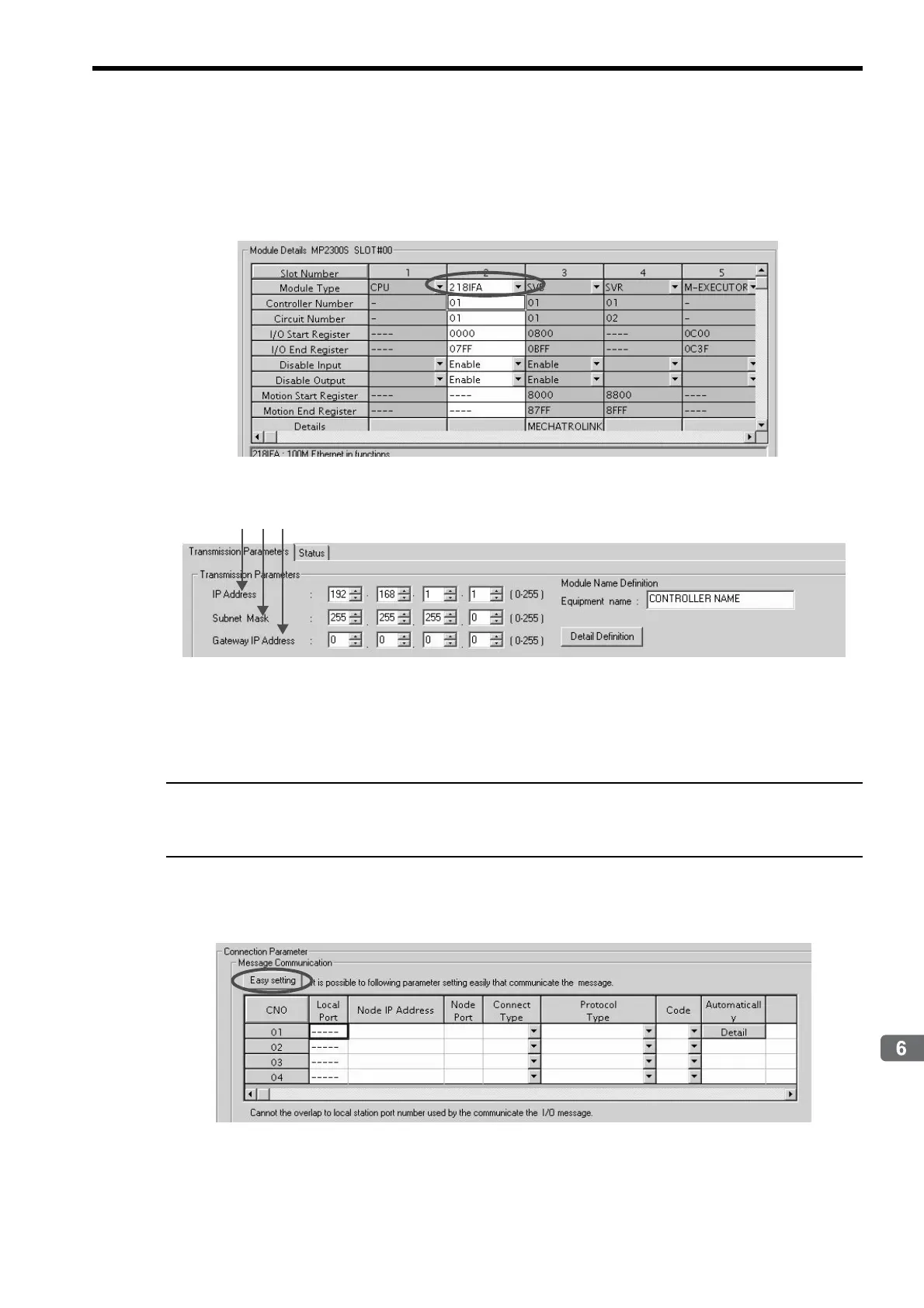

1. Double-click the 218IFA Tab in the Module Details Window of the module configuration definition.
2. Set transmission parameters.
 How to set up transmission parameters
c Set IP Address (“192.168.001.001,” for example).
d Set Subnet Mask (“255.255.255.000,” for example).
e Set Gateway IP Address (“000.000.000.000,” for example).
 Caution
Set up a unique IP address in the network.
For the IP address, check with your network administrator.
3. Click the Easy Setting Button in the Message Communication area of the connection parameter set-
ting.
c
de
