6.2 Communication with Other MP Series
6.2.2 When the MP2300S Acts as Slave (ladder program which uses a MSG-RCV function)
6-29
Built-in Ethernet Communications
3. Set connection parameters.

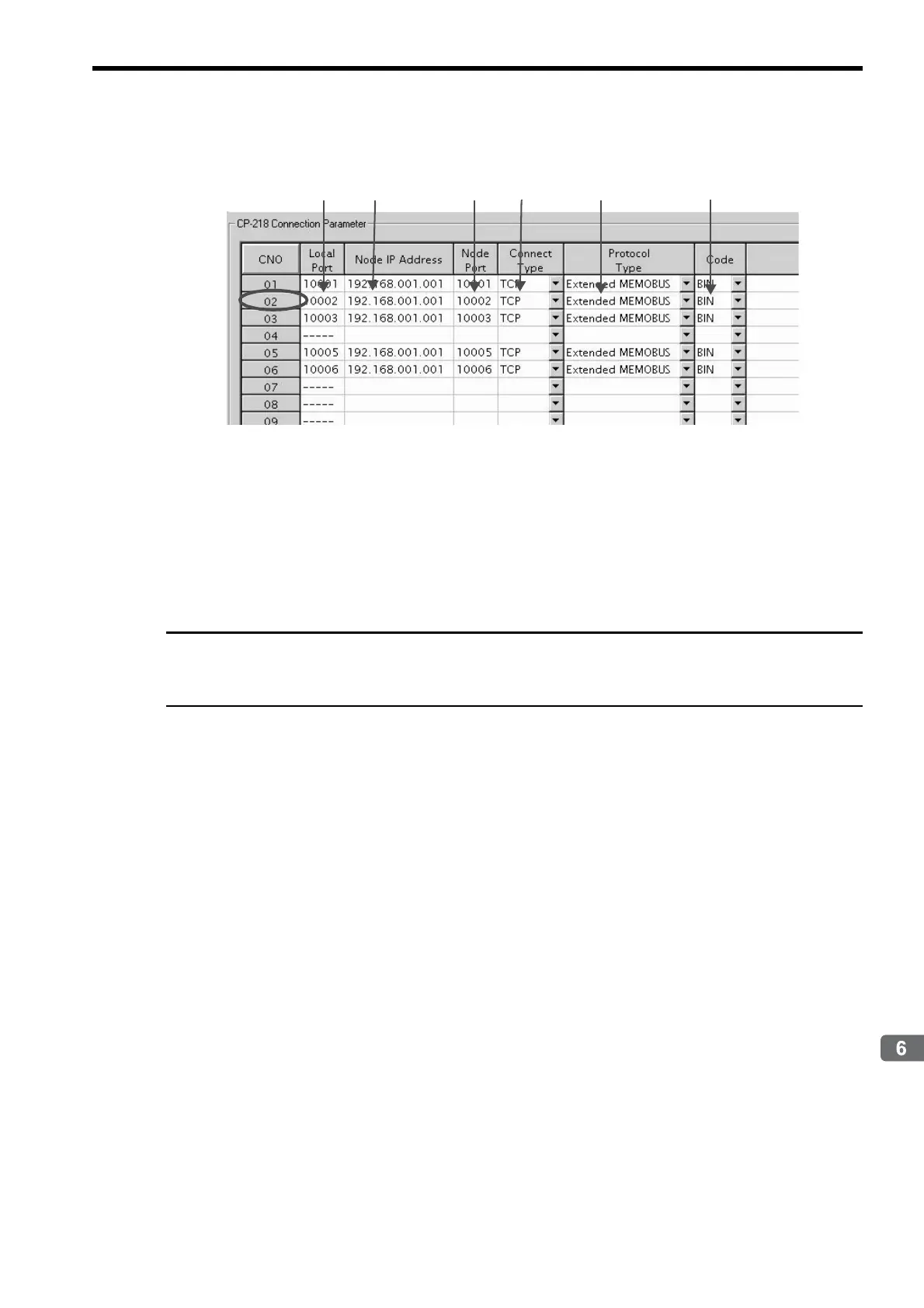

 How to set up with a connection number 02 in the CP-218 Connection Parameter Window
c Set Local Port (the port number “10002” used in the MP2300 side, for example).
d Set the Node IP Address (the IP address “192.168.001.001” configured in the MP2300S side, for example).
e Set the Node Port (the port number “10002” configured in the MP2300S side, for example).
f Select Connect Type (TCP, for example).
g Select Extended MEMOBUS for Protocol Type.
h Select Code (BIN, for example).
 Caution
When any transmission or connection parameter is changed, the change will be reflected after FLASH has been saved and the
power supply is turned ON again.
c d e f
g h
