6.3 Communication with Touch Panel
6.3.1 When the MP2300S Acts as Slave (automatic receive function is used)
6-68

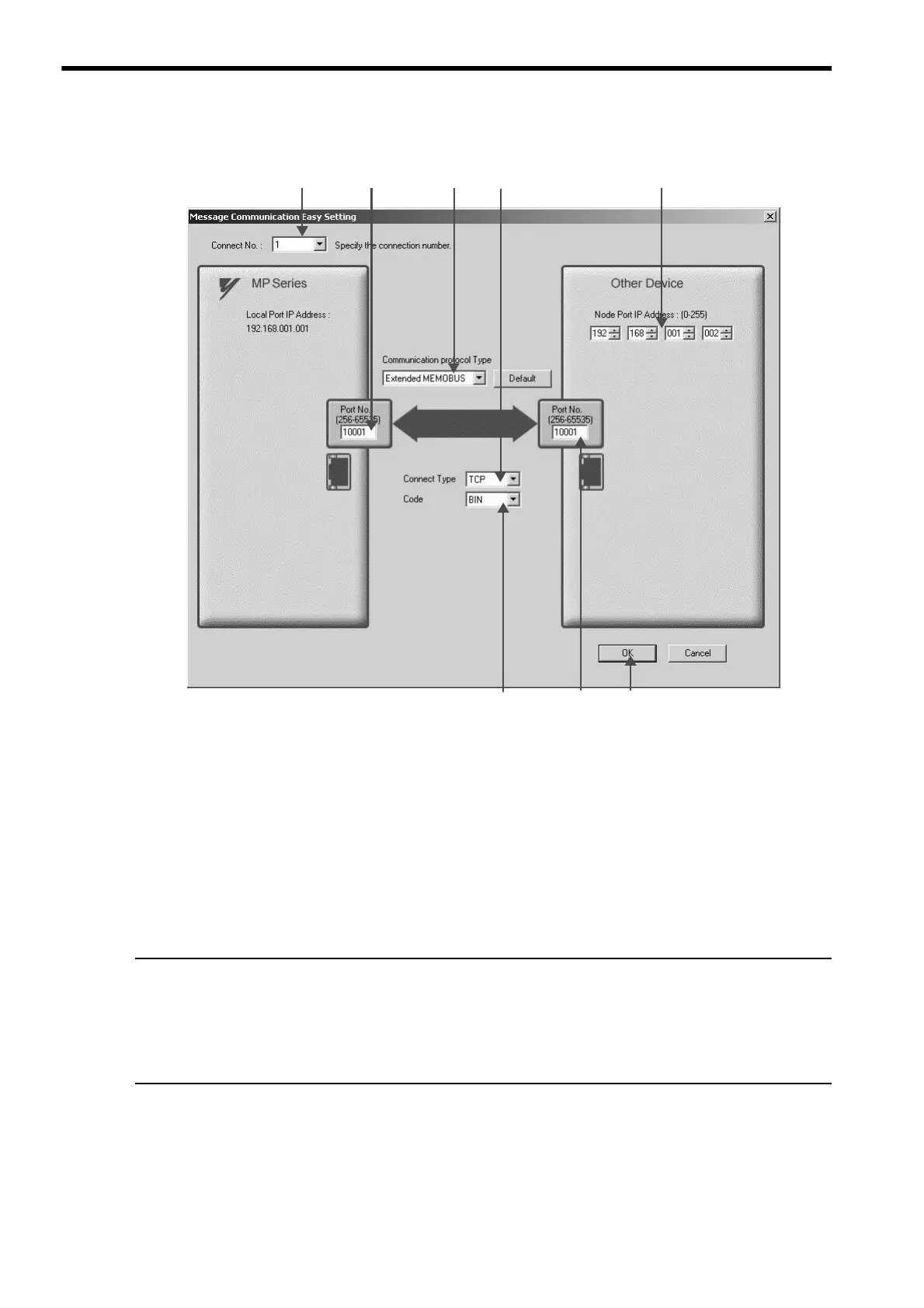

4. Set a communication setting in the Message Communication Easy Setting Window.
How to set up in the Message Communication Easy Setting Window
c When automatic receive is used, select “1” for the Connect No.
d Set Port No. of MP2300S side (“10001,” for example).
e Select Extended MEMOBUS for Communication Protocol Type, and click the Default Button.
f Select Connect Type (TCP, for example).
g Select Code (BIN, for example).
h Set Node Port IP Address for the other device (touch panel) to be connected (“192.168.001.002,” for exam-
ple).
i Set Port No. of the other device (touch panel) to be connected (“10001,” for example).
j Click OK.
Caution
When message functions (MSG-SND, MSG-RCV) are used with the connection number 01, disable the automatic receive func-
tion. If message functions are used while the automatic receive function is enabled, the communications will not function prop-
erly.
Note: The automatic receive function with a connection number 01 is set to “Enable” by default.
