VLAN Configuration for Beginners 175
Figure 35

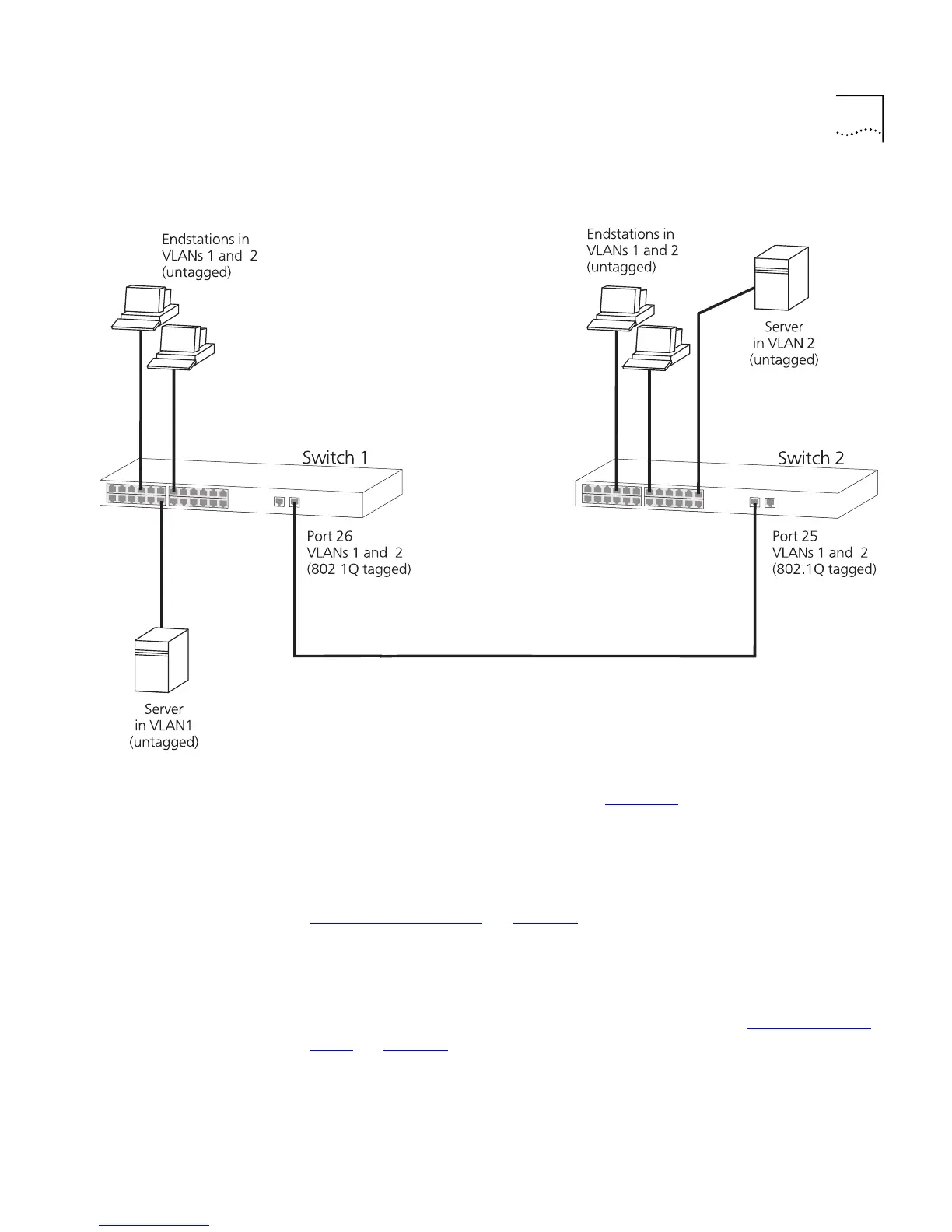

Simple example: 802.1Q tagged connections
To set up the configuration shown in Figure 35:
1 Configure the VLANs on Switch 1
Use the VLAN Setup page of the web interface to define VLAN 2. VLAN 1
is the default VLAN and already exists. Do
not
add the ports to the VLAN
using this screen. For more information about creating a VLAN, see
“Configuring VLANs”
on page 83
2 Add untagged ports on Switch 1
Use the Untagged VLAN listbox on the Port Setup page of the web
interface to place untagged ports in the appropriate VLAN
For more information about editing the port setup, see “Configuring a
Port” on page 59.
