Electrical
Troubleshooting Guide
IRB6400 M94A
Appendix E - 6
Circuit Diagrams

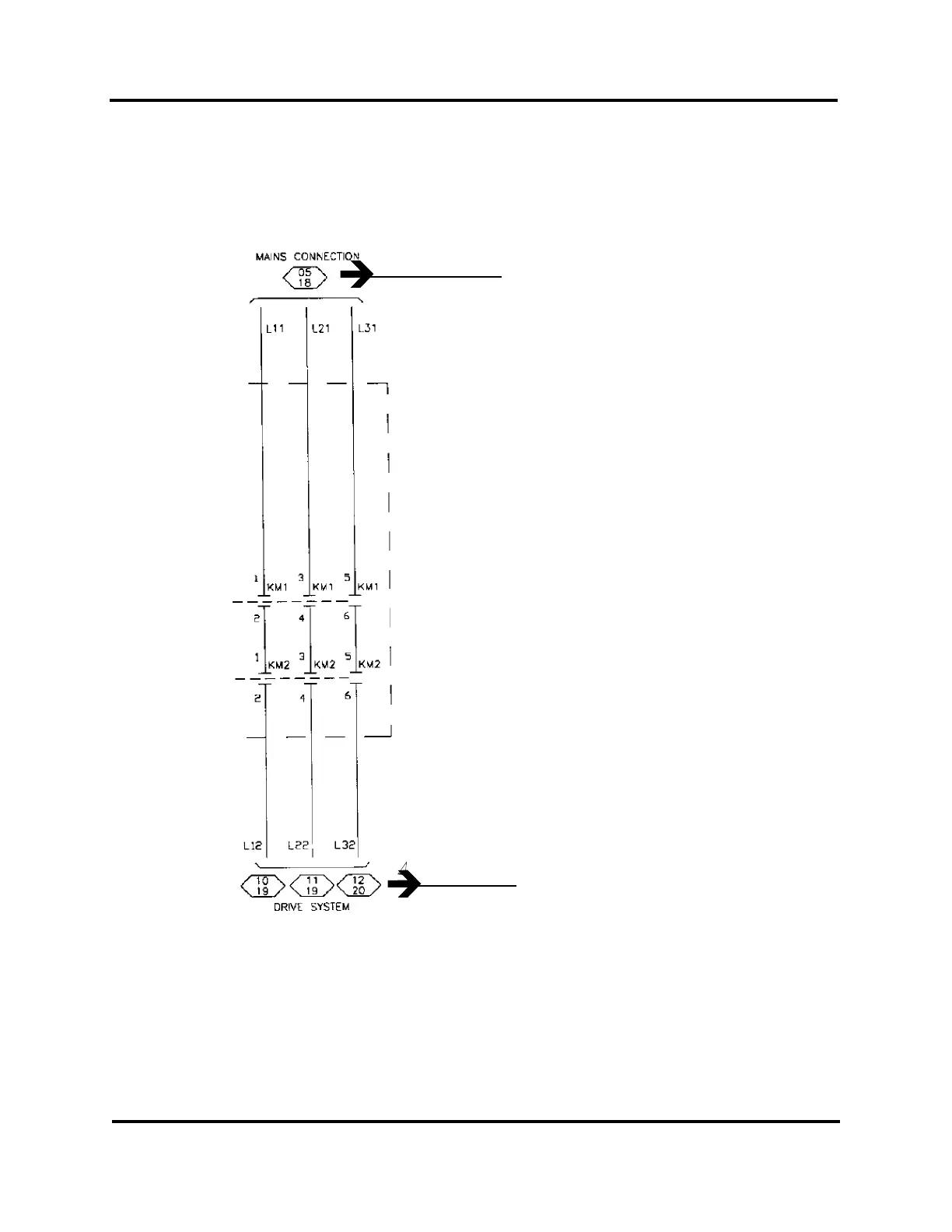

Reference to: Wires L11, L21 & L31
can be traced to sheet 5, line 18.
Reference to: Wires L12, L22 &
L32 continue on sheets 10, line
19; 11, line 19; and 12, line 20.
E4. Sheet Referencing
When the circuit diagram goes from one sheet to another, the wires are referenced using the page
number plus an area number.
