• Blocking of position indications, BL_UPD. This input will block all inputs
related to apparatus positions for all configured functions within the bay.
• Blocking of commands, BL_CMD. This input will block all commands for all
configured functions within the bay.
The switching of the Local/Remote switch requires at least system operator level.
The password will be requested at an attempt to operate if authority levels have
been defined in the IED, otherwise the default authority level can handle the
control without LogOn. The users and passwords are defined with the IED Users
tool in PCM600.
12.4.5 Local/Remote switch LOCREM
IP16319-1 v3
M17086-3 v8
The signals from the local HMI or from an external local/remote switch are
connected via the function blocks LOCREM and LOCREMCTRL to the Bay
control QCBAY function block. The parameter ControlMode in function block
LOCREM is set to choose if the switch signals are coming from the local HMI or
from an external hardware switch connected via binary inputs.
12.4.5.1 Function block
M17088-3 v3
LOCREM
CTRLOFF
LOCCTRL
REMCTRL
LHMICTRL
OFF
LOCAL
REMOTE
VAL ID
IEC05000360-3-en.vsdx
IEC05000360 V3 EN-US

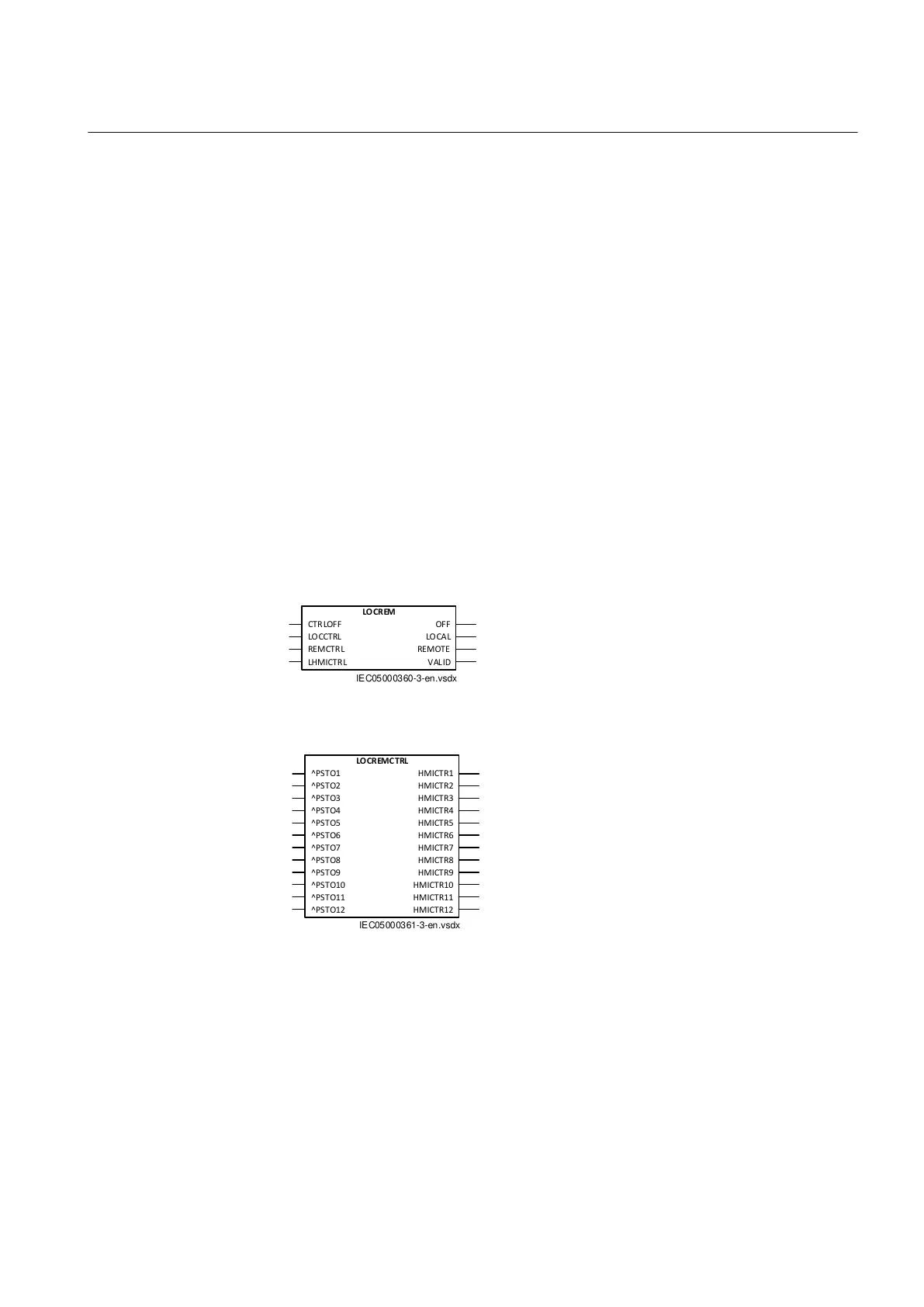

Figure 167: LOCREM function block
LOCREMC TRL
^PSTO1
^PSTO2
^PSTO3
^PSTO4
^PSTO5
^PSTO6
^PSTO7
^PSTO8
^PSTO9
^PSTO10
^PSTO11
^PSTO12
HMICTR1
HMICTR2
HMICTR3
HMICTR4
HMICTR5
HMICTR6
HMICTR7
HMICTR8
HMICTR9
HMICTR10
HMICTR11
HMICTR12
IEC05000361-3-en.vsdx
IEC05000361 V3 EN-US
Figure 168: LOCREMCTRL function block
1MRK 505 394-UEN A Section 12
Control
Line differential protection RED650 2.2 IEC 357
Technical manual
