18.4.6.6 Operation principle
SEMOD55936-5 v7
Upon receiving an analog signal at its input, Generic communication function for
Measured Value (MVGAPC) will give the instantaneous value of the signal and the
range, as output values. Additional configuration is needed with PCM600 or
IET600 to get the IEC 61850-8-1 communication established. For more
information see the Engineering manual.
18.4.7 GOOSE function block to receive a double point value
GOOSEDPRCV
18.4.7.1 Identification
GUID-8C11DB9A-7844-4E1F-A6BB-D97ECE350FC1 v1
Function description IEC 61850
identification
IEC 60617
identification
ANSI/IEEE C37.2
device number
GOOSE function block to receive a
double point value
GOOSEDPRCV - -
18.4.7.2 Functionality
GUID-1D2DBC22-4F04-4809-B34E-8939D442C185 v3
GOOSEDPRCV is used to receive a double point value using IEC 61850 protocol
via GOOSE.

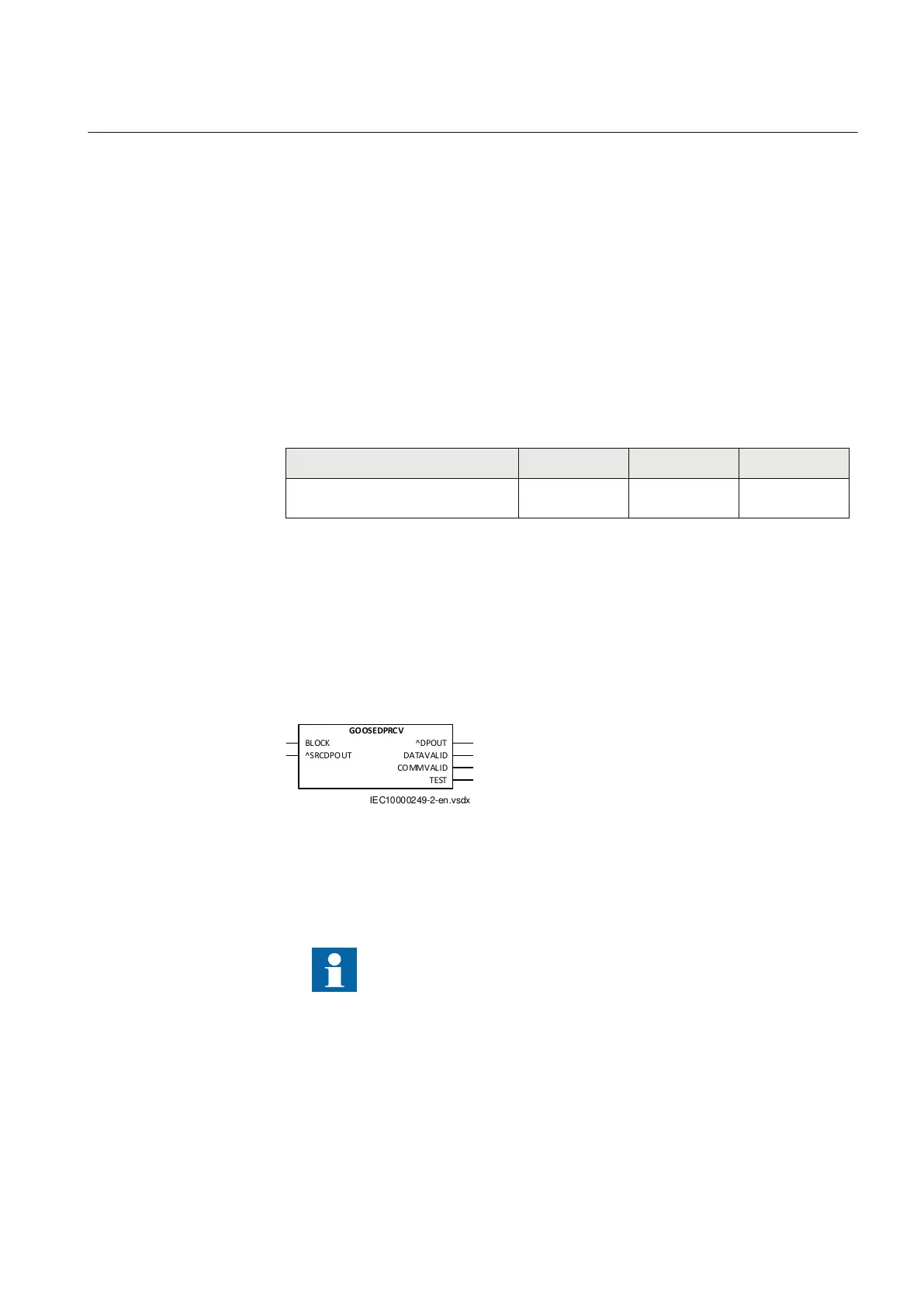

18.4.7.3 Function block
GUID-ED277880-FB5D-4630-872F-9F343D449FFE v1
GOOSEDPRC V
BLOCK
^SRCDPOUT
^DPOUT
DATAV ALID
COMMVALID
TEST
IEC10000249-2-en.vsdx
IEC10000249 V2 EN-US
Figure 320: GOOSEDPRCV function block
18.4.7.4 Signals
GUID-2DC54788-86AF-4B4B-8E57-A89E30F0C433 v1
Except for the BLOCK input, the rest of the inputs of this GOOSE
function block are used for GOOSE connections. These
connections are visible and possible to make only if Easy GOOSE
engineering is enabled. For instructions on how to enable Easy
GOOSE engineering in PCM600, refer to the Engineering Manual.
1MRK 505 394-UEN A Section 18
Station communication
Line differential protection RED650 2.2 IEC 647
Technical manual
