Time Integration
with Retain
BLOCK
ACCTIME
RESET
IN
tWarning
tAlarm
OVERFLOW
WARNING
ALARM
q
-1
a>b
a
b
a>b
a
b
a>b
a
b
AND
AND
AND
q
-1
= unit delay
IEC13000290-2-en.vsd
999 999 s
IEC13000290 V2 EN-US

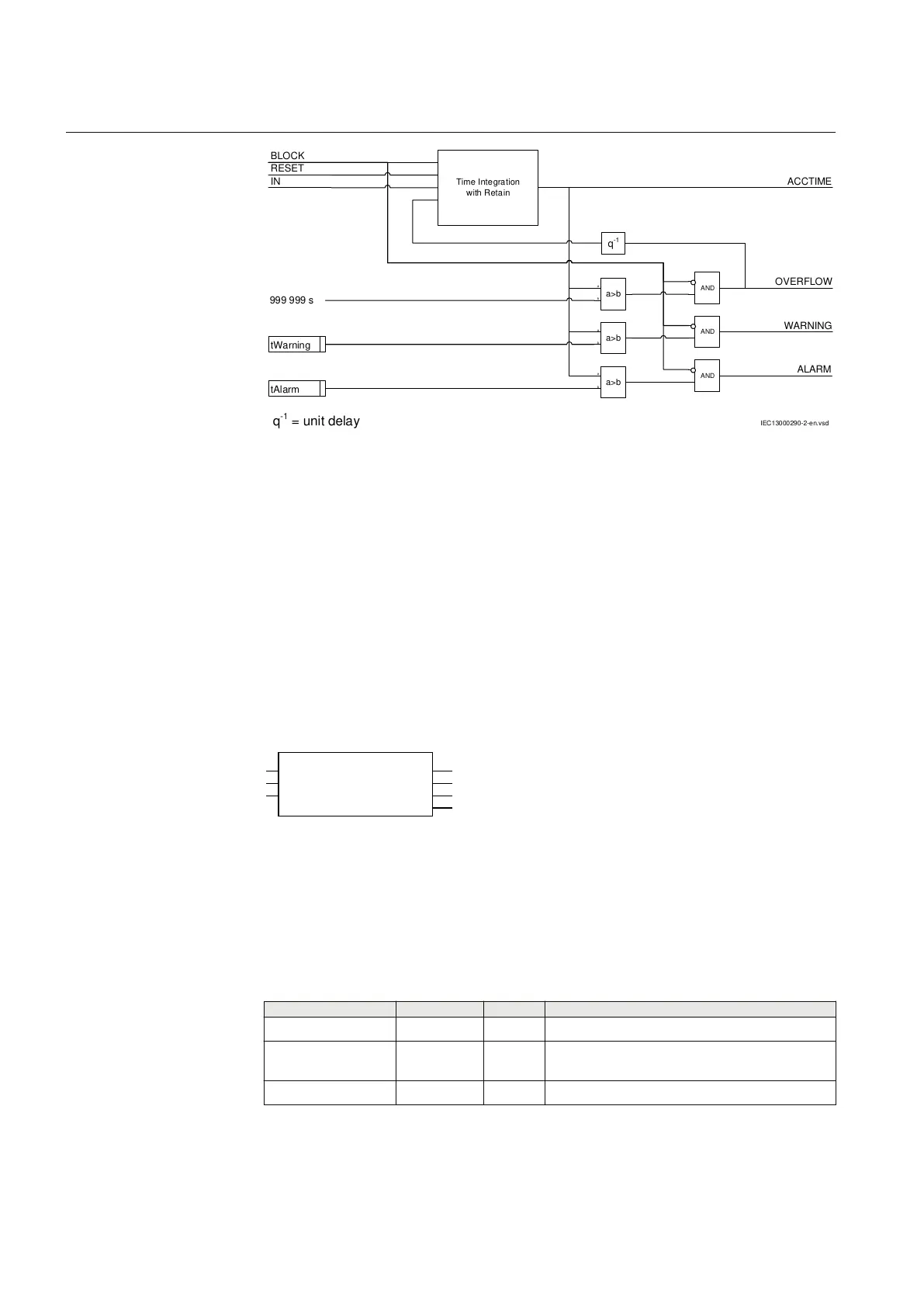

Figure 246: TEIGAPC logics
The main features of TEIGAPC
• Applicable to long time integration up to 999 999.9 seconds
• Supervision of overflow
• Possibility to define a warning and an alarm with the resolution of 10
milliseconds
• Retain the integration value
• Possibilities for blocking and reset of the total integrated time
• Report of the integrated time
14.14.3 Function block
GUID-6D50A060-7751-405B-AEC1-FAE942EBDA64 v2
TEIGAPC
BLOCK
IN
RESET
WARNING
ALARM
OVERFLOW
ACCTIME
IEC14000014-1-en.vsd
IEC14000014 V1 EN-US
Figure 247: TEIGAPC function block
14.14.4 Signals
PID-6836-INPUTSIGNALS v2
Table 327: TEIGAPC Input signals
Name
Type Default Description
BLOCK BOOLEAN 0 Freeze the integration and block the other outputs
IN BOOLEAN 0 The input signal that is used to measure the
elapsed time, when its value is high
RESET BOOLEAN 0 Reset the integration time
Section 14 1MRK 505 394-UEN A
Logic
486 Line differential protection RED650 2.2 IEC
Technical manual
