ABB RED650 User Manual

M2152-11 v4
Case size
(mm)
A B C D E F G H J K
6U, 1/2 x 19” 266.7 224.0 204.1 249.9 205.8 190.5 204.0 242.3 188.9 259.1
The H and K dimensions are defined by the 19” rack mounting kit
22.3.3 Flush mounting dimensions
M11571-3 v6
C
A
IEC04000465-
3
-en.vsd
B
E
D
IEC04000465 V3 EN-US

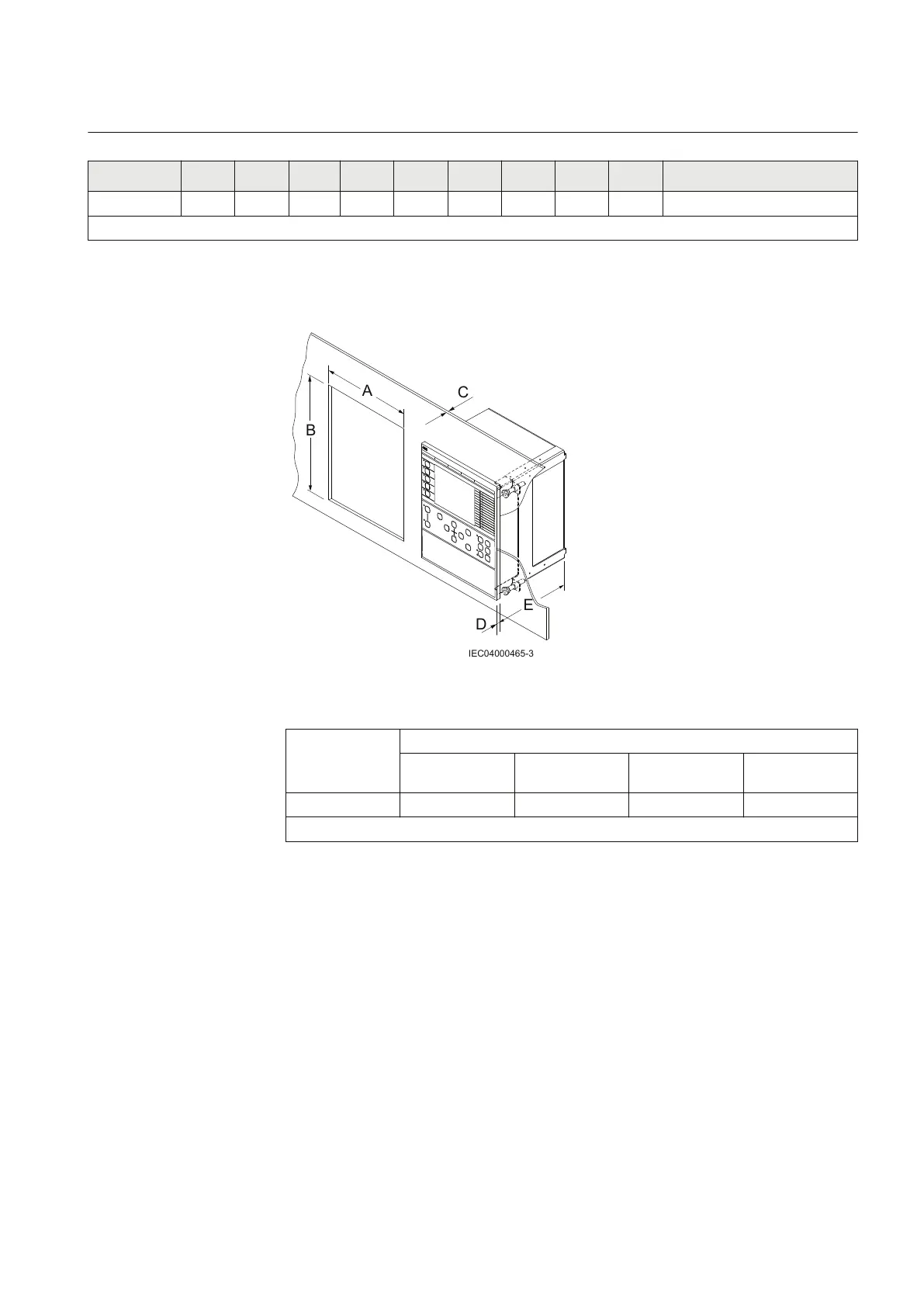

Figure 395: Flush mounting
Case size
Tolerance
Cut-out dimensions (mm)
A
+/-1
B
+/-1
C D
6U, 1/2 x 19" 210.1 254.3 4.0-10.0 13.5
E = 191.1 mm without rear protection cover, 231.8 mm with rear protection cover
1MRK 505 394-UEN A Section 22
IED hardware
Line differential protection RED650 2.2 IEC 849
Technical manual
